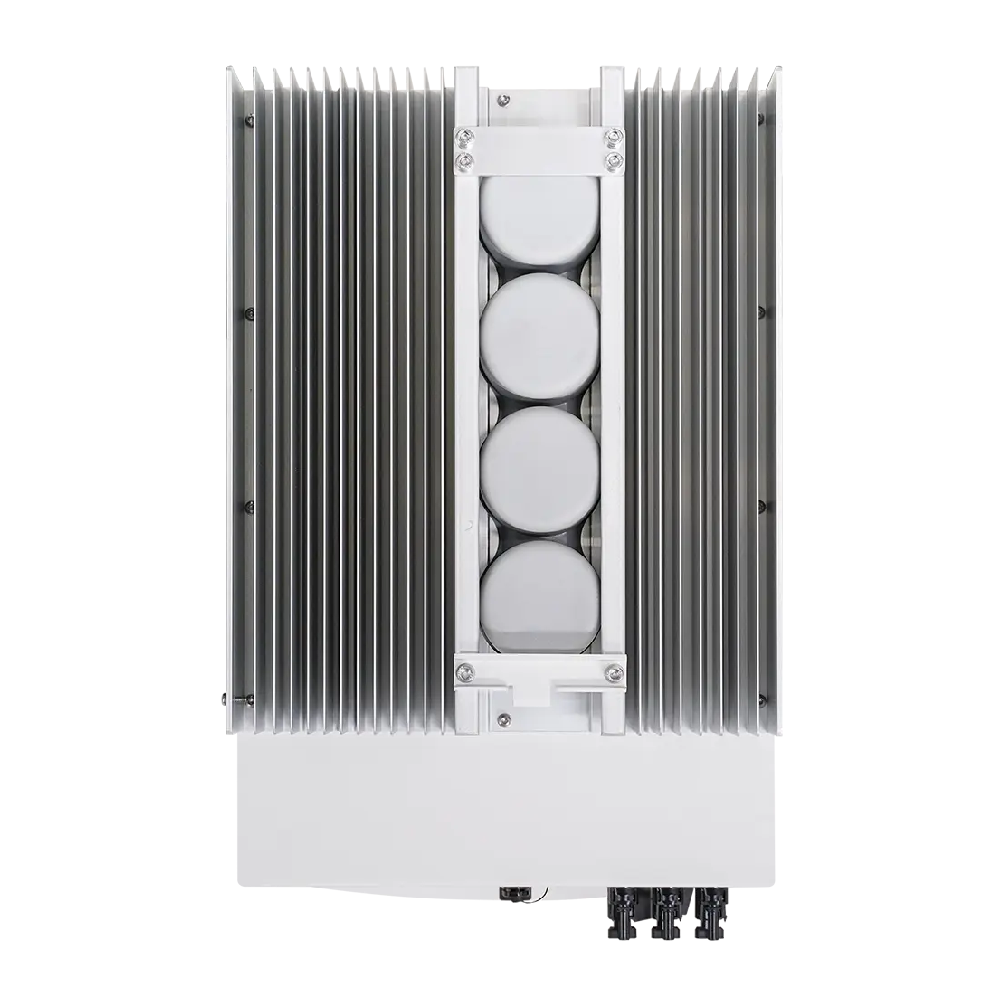

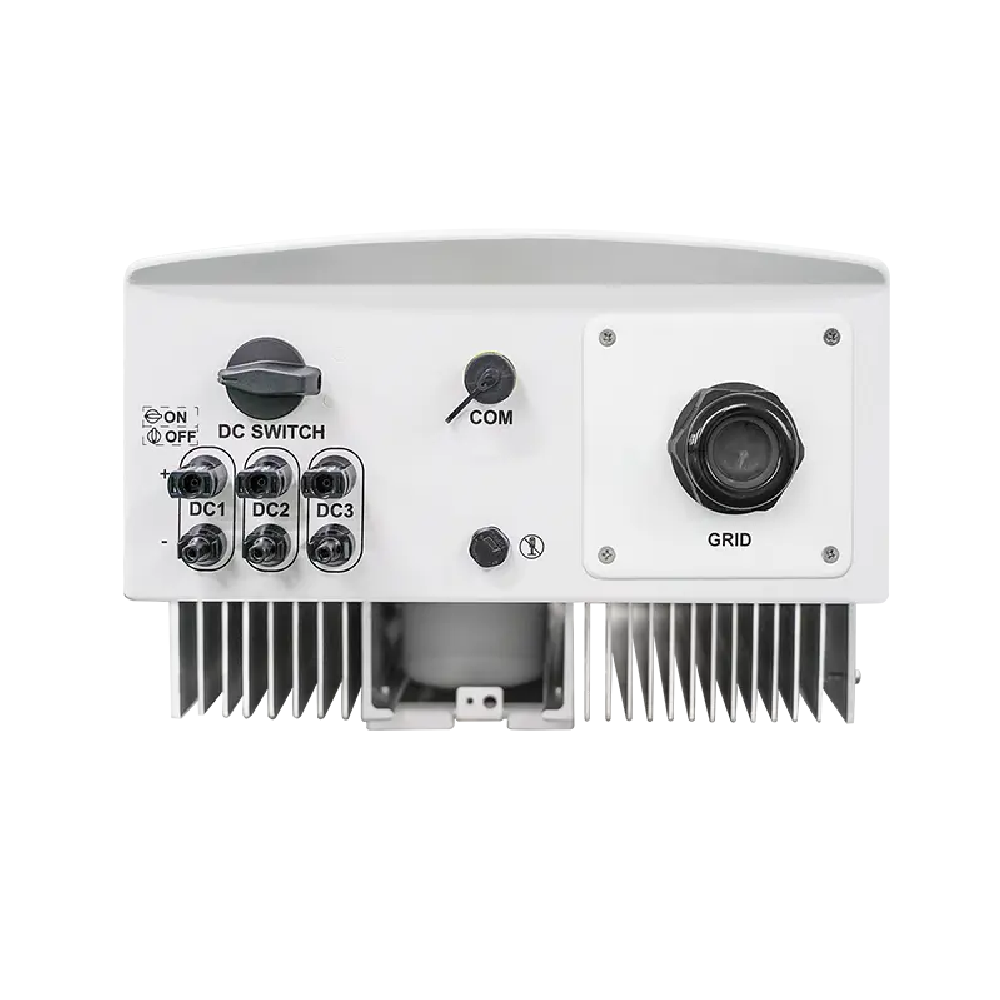

Solis 1P10K-4G, 12kW, Single Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16211/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code Solis-1P10K-4G
Type Single Phase
General Specifications
Width 333.0 mm
Height 573.0 mm
Depth 249.0 mm
Weight 18.0 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP65
Max. Efficiency 98.1 %
Input
Max. Input Voltage 600.0 V
Rated Input Voltage 330.0 V
Max. Input Current 10/10/10 A
Max.Short Circuit Current 15,6/15,6/15,6 A
Start Voltage 120.0 V
No. of MPPTS 3.0
Max. number of inputs 3.0
MPPT Operating Voltage Range 100 - 500 V
Output
Rated Output Power 12000.0 W
Max. AC Apparent Power 10200.0 VA
Max. Output Power 10200.0 W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 55.1 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LCD, 2×20 Z
USB No

General Description & Application

Solis-1P(9-10)K-4G

Key Features:

  • 9-10kW Single Phase Grid-Tied Inverter

  • 9-10kW Single-phase series string inverter bring more power generation to users by adopting three MPPT design. Smaller size , lighter weight, the simpler installation , more convenient transportation. The optional AFCI device can avoid reducing the fire incidence by 99%, and protect your electricity safety to a greater extent. Real-time monitoring and information control can be realized.
