AIKO SOLAR, NEOSTAR 1U+78 AIKO-A665-MAH78Dw, Panou solar bifacial standard N-Type ABC 665Wp

Panouri solare
AIKO SOLAR

AIKO is a global-leading new energy technology company, focusing on the R&D manufacturing of solar generation products and PV-Storage-Charging integrated solutions, providing customers with solar cells, ABC (All Back Contact) modules and scenario-based packaged solutions. With the mission of “Empowering transformation towards a carbon-free era”, AIKO keeps on pursuing extreme innovation and cutting-edge technology.

Read more
https://www.polytrade.global/web/image/product.template/16598/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identification
Marca AIKO SOLAR
Cod produs NEOSTAR 1U+78 AIKO-A665-MAH78Dw

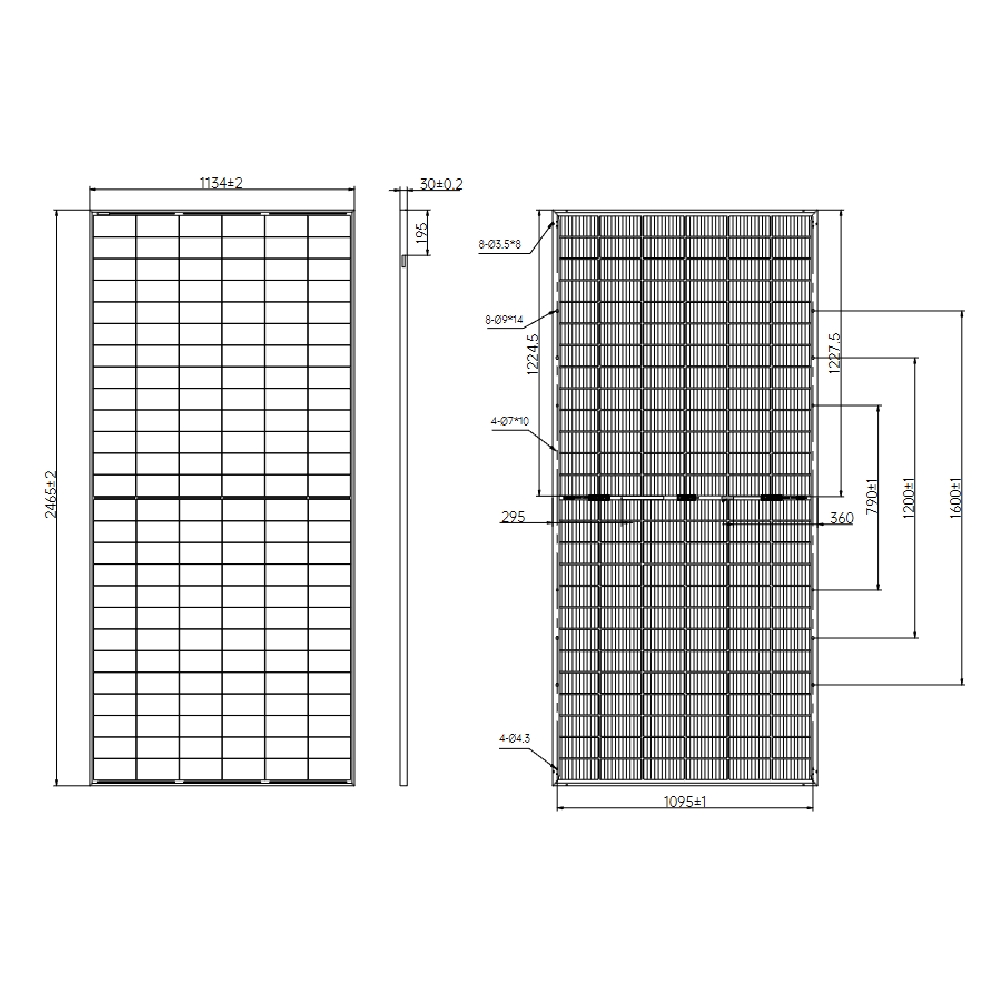

Design & Mechanical Specification
Tip panou Bifacial
Suprafata panou Standard
Greutate panou 34.7 Kg
Lungime panou 2465.0 mm
Latime panou 1134.0 mm
Grosime panou 30.0 mm
Material celule Monocrystalline
Tip celule N-Type ABC
Nr. celule 156.0
Dimensiune celule 6*26
Tip sticla Dual Glass
Tip de incapsulare EVA
Rata IP cutie de jonctiune IP68, 3 bypass diode
Tip rama Anodized aluminum
Tip conector MC4 Compatible
Sarcina din vant 2400.0 Pa
Sarcina mecanica 5400.0 Pa
Temperatura de operare -40 >< +85 °C
Electrical Specifications (*STC)
Putere nominala maxima - Pmax 665.0 Wp
Tensiune maxima de functionare - Vmpp 45.97 V
Curent maxim de functionare - Impp 13.64 A
Tensiune circuit deschis - Voc 58.86 V
Curent scurt circuit - Isc 14.35 A
Eficienta modul - η 23.8 %
Toleranta putere 0~+3 Wp
Tensiunea maxima a sistemului 1500.0 V
Valoarea maxima a sigurantei in serie 25.0 A
Warranty
Garantie produse 15.0 yrs
Garantie performanta 30.0 yrs

General Description & Application

NEOSTAR 1U+78 Dual-Glass 655W-680W

Higher power | Lower BOS

  • Efficiency: up to 24.3%
  • Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
  • Premium warranty: 15-year product warranty, extendable to 25-year and 30-year performance warranty
  • Better temperature coefficient: -0.26%/°C
  • Maximizing the installation capacity, Partial shading optimization
  • Lower O&M cost
    Micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate.

Certifications

  • Intersolar AWARD 2023
  • The world’s first XBC PV module red dot design award in 2023
  • BloombergNEF Tier 1 Solar PV module manufacturer
