  3. Solis, S6-EH3P20K-ND-H, 20000 W, Invertor de stocare a energiei hibrid trifazic

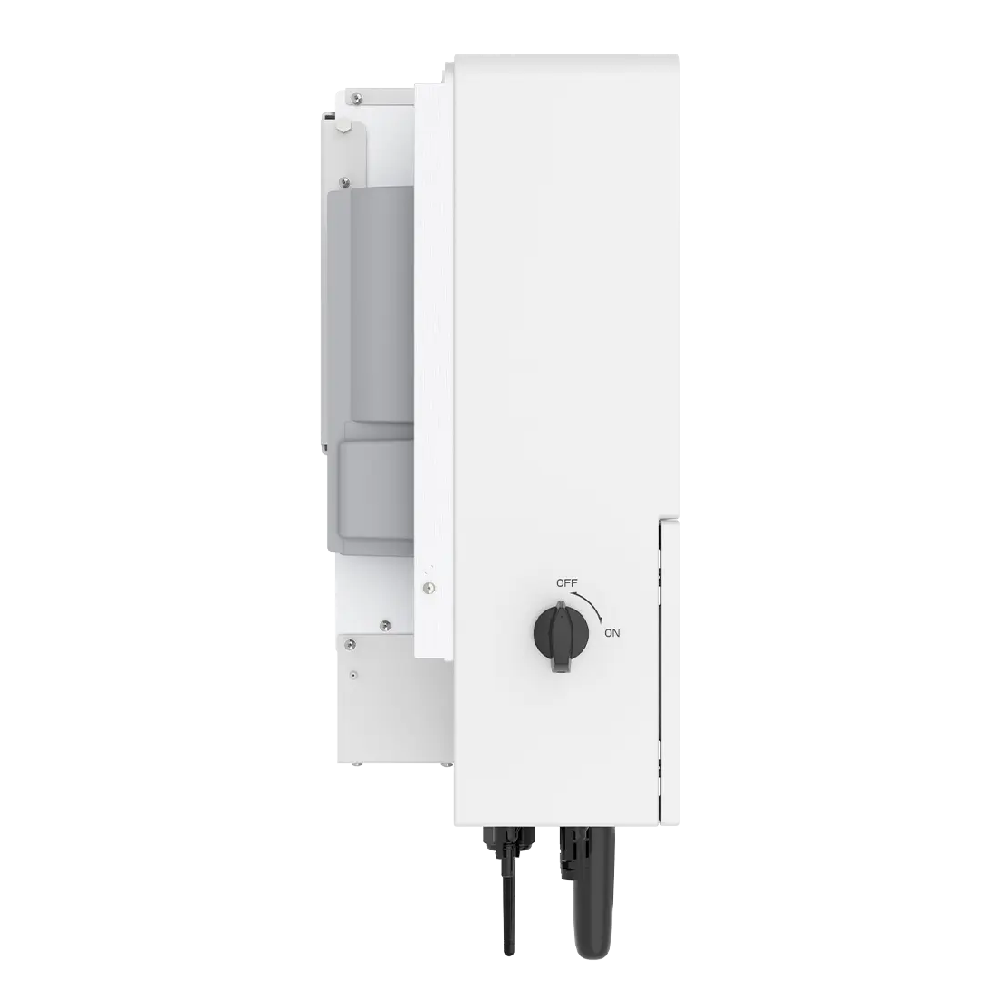

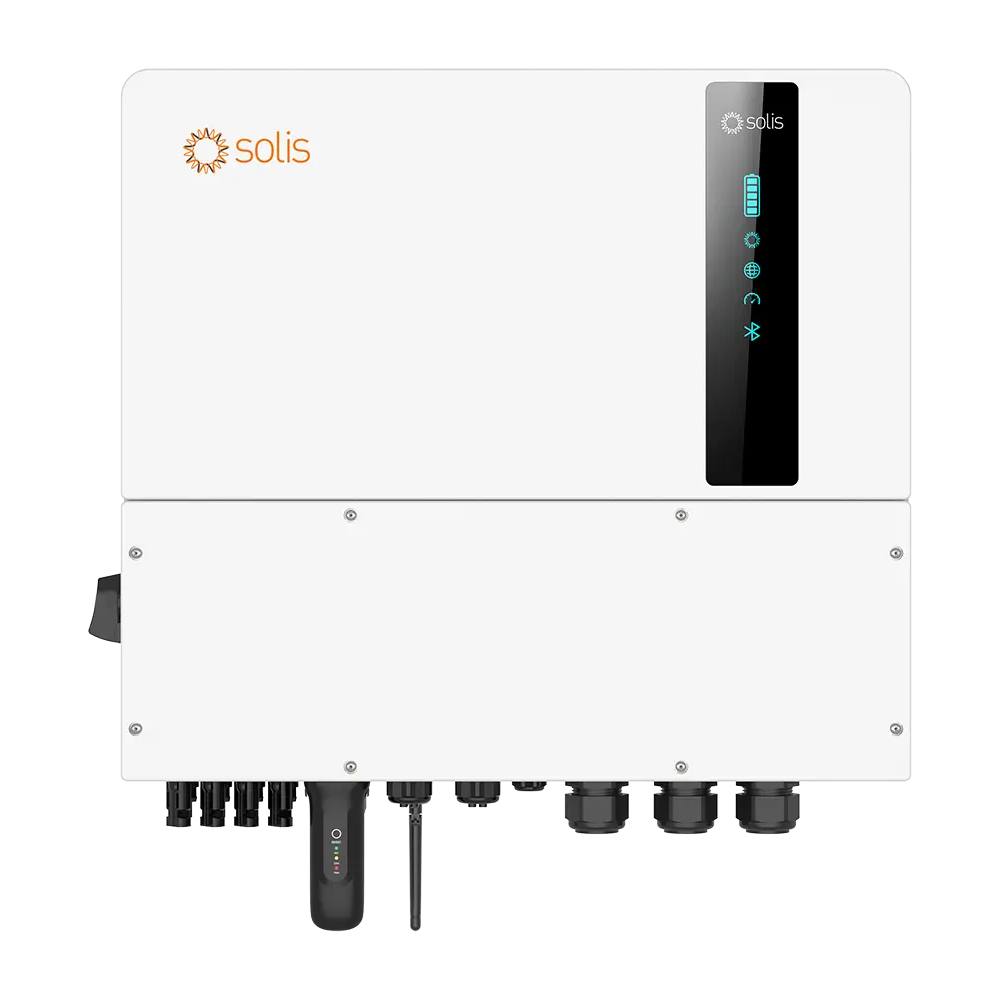

Solis, S6-EH3P20K-ND-H, 20000 W, Invertor de stocare a energiei hibrid trifazic

Invertoare
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16381/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identifications
Marcă Solis
Cod producător S6-EH3P20K-ND-H
Tip Three Phase Hybrid Energy Storage
General Specifications
Lățime 563.0 mm
Înălțime 546.0 mm
Adâncime 250.0 mm
Greutate 32.6 Kg
Temperatura Min. de funcționare -25.0 °C
Temperatura Max. de funcționare 60.0 °C
Altitudinea Max. de operare 4000.0 m
Umiditate relativă 0-95 %
Topologie Transformerless
Evaluare IP IP66
Eficienţă Max. 97.7 %
Input
Tensiunea Max. de intrare 1000.0 V
Tensiune de intrare nominală 600.0 V
Curent Max. de intrare 4x20 A
Max.Curent De Scurtcircuit 4x30 A
Tensiunea de pornire 160.0 V
Nr. de MPPTS 4.0
Număr max. de intrări 4.0
Intervalul de tensiune de operare MPPT 200 - 850 V
Output
Putere de ieșire nominală 20000.0 W
Max. AC Putere aparentă 20000.0 VA
Max. Putere de ieșire N/A W
Tensiunea nominală de ieșire AC 220/380, 230/400 VA
Frecvența nominală a rețelei 50/60 Hz
Curent Max. de ieșire 30,4/28,10 A
Distorsiune armonică totală <3 %
Factor de putere >0,99
Protection
Protecție împotriva insularizării Yes
Protecția la scurtcircuit AC Yes
AC Protecție la supracurent Yes
Detectarea izolației No
Protecție la supratensiune AC Yes
Protecție la supratensiune DC Yes
Conexiune inversă DC Yes
Communication
WiFi Optional: Wi-Fi, Cellular, LAN
RS485 Yes
BUS de monitorizare (MBUS) N/A
Afișaj LED indicator & Bluetooth + APP
USB No

General Description & Application

S6-EH3P(12-20)K-ND-H

Key Features:

  • Three Phase High Voltage Energy Storage Inverter

  • The Solis S6-EH3P(12-20)K-ND-H series three-phase energy storage inverter is tailor-made for large residential and small commercial PV energy storage systems. These products support generator networking and the parallel operation of multiple inverters. Equipped with 4 MPPTs, it is perfect for large rooftop PV energy storage systems with diverse roof orientations and complex structures. With multiple flexible load capacity options, including UPS-level switching, and a 10-second 200% surge power backup overload capability, it adapts to three-phase unbalanced loads and half-wave loads, guaranteeing a reliable power supply for your diverse energy needs.
