Minimal expansion foam for precision gap filling

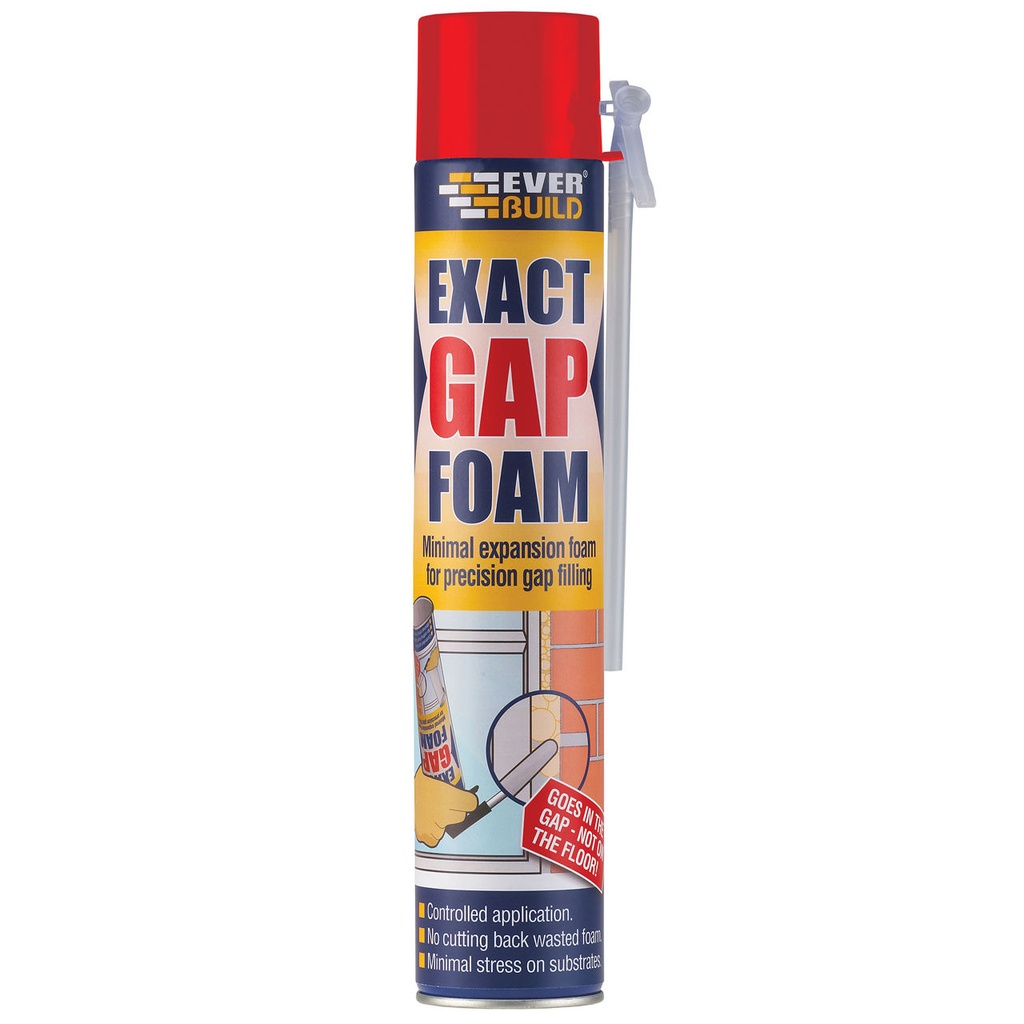

EVERBUILD EXACT GAP FOAM® has been formulated to provide a more precise foam product that modestly fills voids, with a fresh foam can expanding by approx. 130 %. The controlled application significantly reduces the amount of cured excess foam that has to be cut back afterwards, the waste disposal of which can be difficult on some sites. This controlled expansion also reduces the danger of wet foam falling onto the floor and surrounding substrates. Also ideal for applications where it is important not to impact too much stress onto the item being installed.
-
Fills gaps & insulates.
-
Can be cut, sawn or plastered over after only two hours.
-
Unique safety valve – rubber free valve means it will not clog or leak.
-
Re-usability – canister may easily be re-used again.
-
Safety in transport – internal valve reduces potential of impact damage. Canister may be transported/ stored in horizontal as well as vertical position.
|
Usage
Filling:
- Roof tile voids and draught points around the home.
- Gaps around pipe entries through walls.
- Gaps around window frames, door frames.
- Electrical wire chasing prior to plastering.
- Deep joints prior to applying sealant or plaster.
- Gaps and cracks in walls and floorboards.
Insulating:
- Behind cladding to exterior walls.
- Behind soffit and barge boards.
Advantages
- Fills gaps & insulates.
- Can be cut, sawn or plastered over after only two hours.
- Unique safety valve – rubber free valve means it will not clog or leak.
- Re-usability – canister may easily be re-used again.
- Safety in transport – internal valve reduces potential of impact damage. Canister may be transported/ stored in horizontal as well as vertical position.
Cell Structure Medium fine Full Load Bearing Stability Approx. 12 hours (20 mm bead) Elongation At Tension 20-40 % (DIN 53530) Temp Res Of Cured Bead Long Term: -40 to +80 °C Short Term: -40 to +100 °CBuilding Material ClassB3 (DIN 4102, Part 1)
Packaging
500 ml and 750 ml cans
|
Technical Information
Compressive Strength
3 N/cm2 (DIN 53421) at 10 % stress
Tensile Strength
7 to 0 N/cm2 (DIN 53530)
Shear Strength
4.5 N/cm2 (DIN 53427)
|
Application Information
Ambient Air Temperature
+5 °C to +30 °C (Optimum +20 °C)
Cutting Time
Cuttable in 9 to 12 mins (based on 20 mm bead)
Tack Free Time
4 to 8 minutes
|
