  2. Sika Ebonex, Discrete ICCP Anodes, Exterior
Sika Ebonex, Discrete ICCP Anodes, Exterior

Sika Ebonex, Discrete ICCP Anodes, Exterior

Tratamente suprafete
SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

Read more
https://www.polytrade.global/web/image/product.template/18318/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
General Specifications
Ambalaj Packaging varies depending upon the anode size
Utilizare Protection for bridges, tunnels, car parks, marine and steel structures
Baza chimică Embedded galvanic anode (zinc-based)
Zona de utilizare Exterior
Culoare N/A
Condiții de depozitare Store properly in original unopened, sealed and undamaged packaging in dry and cool conditions
Densitate N/A
Consum N/A

Discrete Impressed Current Cathodic Protection Anodes

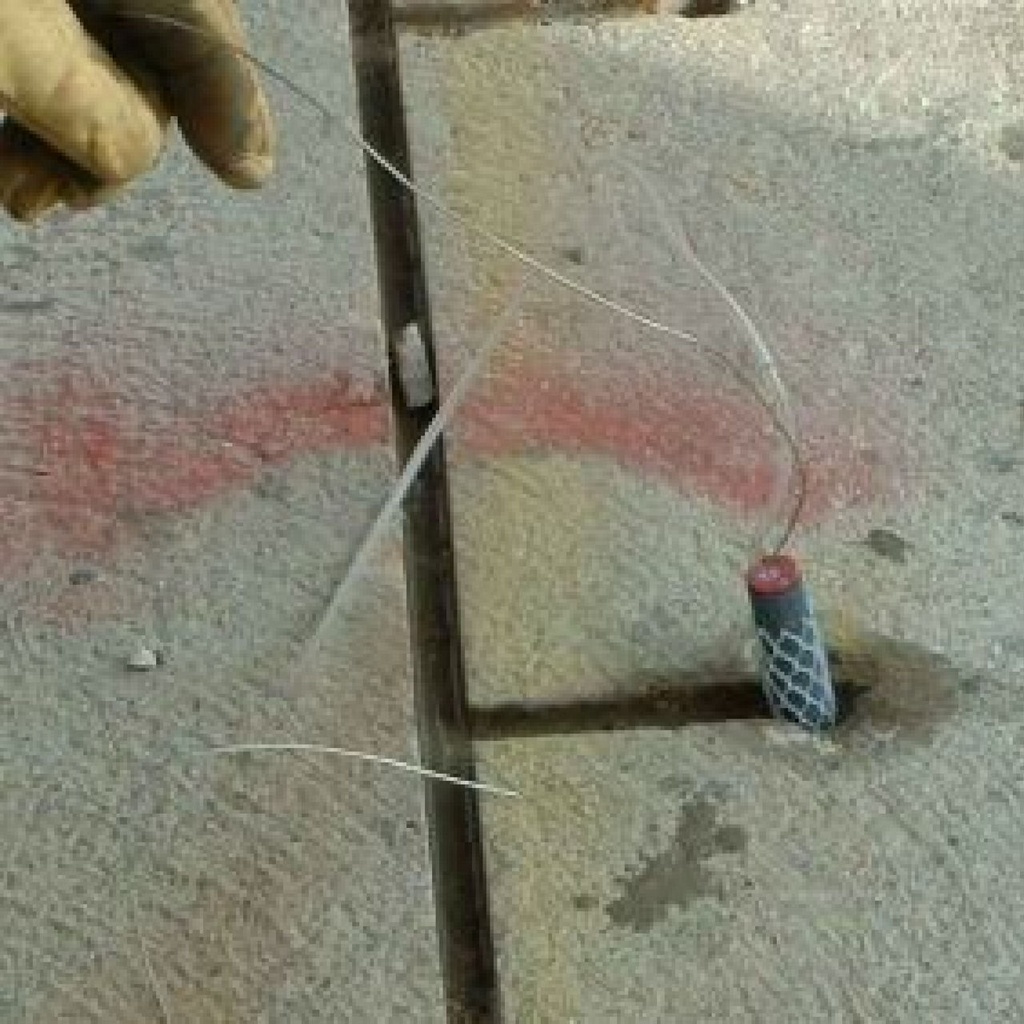

Sika Ebonex is a discrete impressed current cathodic protection anode, specifically designed to protect reinforced concrete structures and steel framed buildings. The anode utilizes an innovative ceramic / titanium composite, combined with an integral gas venting system. The system includes Sika Ebofix Grout, a high density, acid buffering grout used for long term performance. Sika Ebonex discrete anodes are available in a wide range of sizes to provide excellent design flexibility.

  • Embedded installation - provides discrete installation, with no added dead weight loading or increase to physical dimensions of the structure.
  • Gas Venting – no build-up of anodic gases can be installed under membranes, coatings and strengthening systems.
  • Economical - low cost method of providing galvanic corrosion prevention to extend the initiation of reinforcement corrosion around patch repairs.
  • Long lasting – Longest life expectancy of any discrete CP - in excess of 25 - 50 years depending upon design.
  • Highest level of protection – capable of satisfying the 100mV depolarization criteria for effective cathodic protection.
  • Proven technology – field verified performance.
  • Deep installation – address multi levels of steel and difficult access.
  • Cost Competitive – Compared to other types of ICCP anodes.
  • High operating current – suitable for use in areas of high density steel.
  • Versatile – can be used in many sectors within the construction industry
Usage
  • Bridges
  • Tunnels
  • Multistory Car parks
  • Heritage Structures
  • Marine structures
  • Steel framed buildings

Advantages
  • Embedded installation - provides discrete installation, with no added dead weight loading or increase to physical dimensions of the structure.
  • Gas Venting – no build-up of anodic gases can be installed under membranes, coatings and strengthening systems.
  • Economical - low cost method of providing galvanic corrosion prevention to extend the initiation of reinforcement corrosion around patch repairs.
  • Long lasting – Longest life expectancy of any discrete CP - in excess of 25 - 50 years depending upon design.
  • Highest level of protection – capable of satisfying the 100mV depolarization criteria for effective cathodic protection.
  • Proven technology – field verified performance.
  • Deep installation – address multi levels of steel and difficult access.
  • Cost Competitive – Compared to other types of ICCP anodes.
  • High operating current – suitable for use in areas of high density steel.
  • Versatile – can be used in many sectors within the construction industry
Packaging

Packaging varies depending upon the anode size
Technical Information
Design Considerations

Design Criteria

Sika Ebonex is a discrete cathodic protection system providing long term durability to both new and existing structures under highly aggressive conditions. In line with other cathodic protection systems Sika Ebonex discrete anode systems should be designed by corrosion specialists and installed by knowledgeable and experienced contractors.

Anode Diameter

Current rating per 100mm anode length * (mA)

8mm Ebonex

2.0

10mm Ebonex

2.8

12mm Ebonex plus, 18mm Ebonex5.1
18mm Ebonex plus, 28mm Ebonex7.9

Level of Protection

Sika Ebonex works by distributing sufficient electrical current to overcome ongoing corrosion in the structure. Sika Ebonex anodes are connected to an external DC power supply, which provides the electrical current that mitigates corrosion activity. The anodes are connected to the positive terminal.
According to industry standards, an ICCP system is considered to be providing cathodic protection when the steel is sufficiently polarized to result in a 100mV depolarisation.
