  2. Solis, S6-GR1P8K2, 8000W, Invertor monofazat

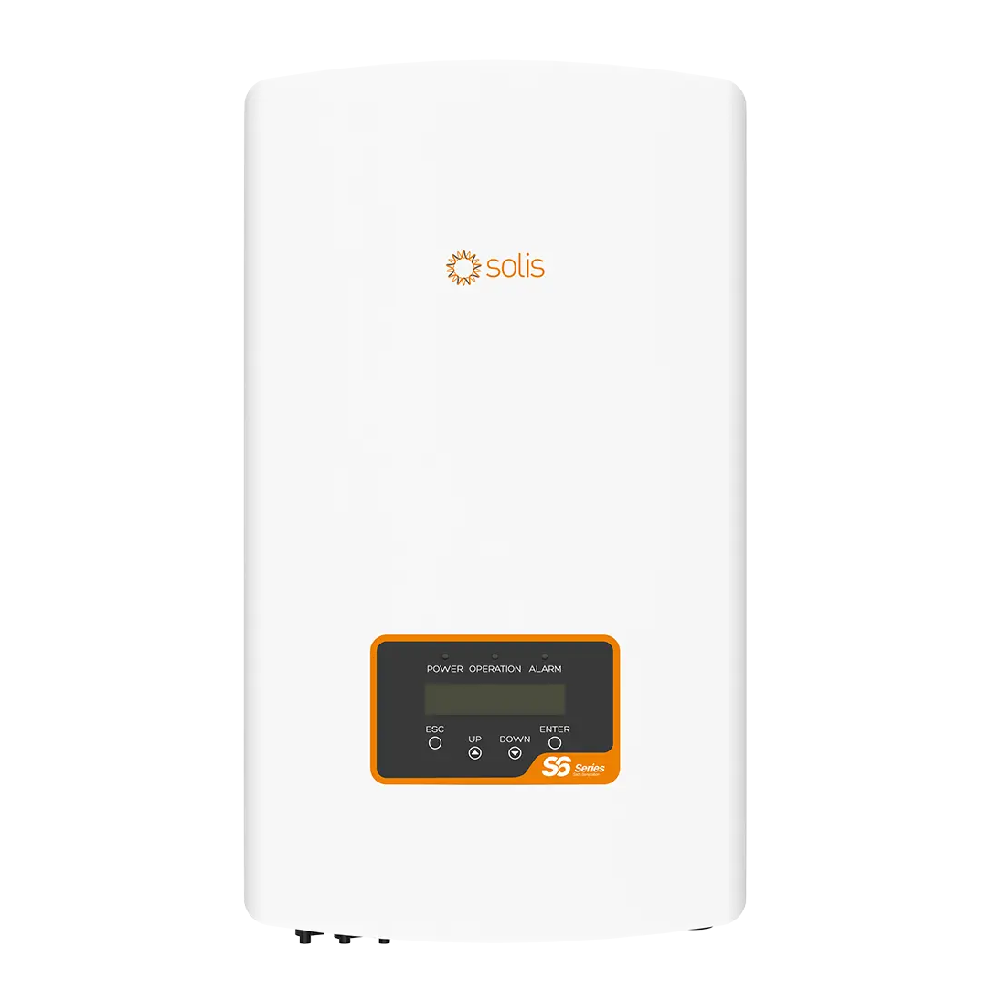

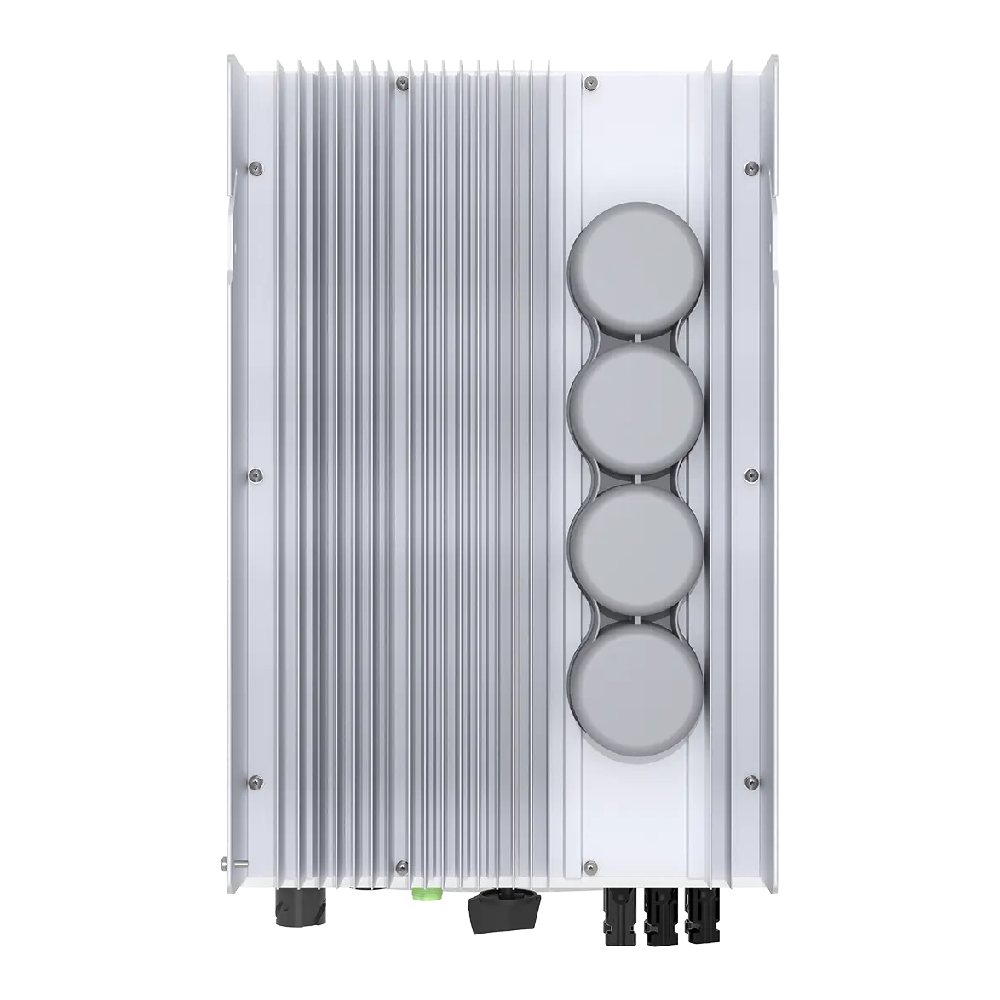

Solis, S6-GR1P8K2, 8000W, Invertor monofazat

Invertoare
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16199/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identifications
Marcă Solis
Cod producător S6-GR1P8K2
Tip Single Phase
General Specifications
Lățime 310.0 mm
Înălțime 550.0 mm
Adâncime 180.0 mm
Greutate 13.2 Kg
Temperatura Min. de funcționare -25.0 °C
Temperatura Max. de funcționare 60.0 °C
Altitudinea Max. de operare 4000.0 m
Umiditate relativă 0-100 %
Topologie Transformerless
Evaluare IP IP65
Eficienţă Max. 97.7 %
Input
Tensiunea Max. de intrare 550.0 V
Tensiune de intrare nominală 330.0 V
Curent Max. de intrare 18/32 A
Max.Curent De Scurtcircuit 20/40 A
Tensiunea de pornire 90.0 V
Nr. de MPPTS 2.0
Număr max. de intrări 3.0
Intervalul de tensiune de operare MPPT 90 - 500 V
Output
Putere de ieșire nominală 8000.0 W
Max. AC Putere aparentă 8000.0 VA
Max. Putere de ieșire 8000.0 W
Tensiunea nominală de ieșire AC 220/230 VA
Frecvența nominală a rețelei 50/60 Hz
Curent Max. de ieșire 36.4 A
Distorsiune armonică totală <3 %
Factor de putere >0,99
Protection
Protecție împotriva insularizării Yes
Protecția la scurtcircuit AC Yes
AC Protecție la supracurent Yes
Detectarea izolației Yes
Protecție la supratensiune AC Yes
Protecție la supratensiune DC Yes
Conexiune inversă DC Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
BUS de monitorizare (MBUS) N/A
Afișaj LCD
USB No

General Description & Application

S6-GR1P(7-8)K2

Key Features:

  • Single Phase Grid-Tied Inverter

  • S6-GR1P(7-8)K2 series inverter is designed for residential PV plants. The maximum input current per string is 18A, which is compatible with high-efficiency modules and bi-facial modules and adopt two MPPT access, more flexible and efficient. Compact and lightweight design, bring easy installation. The protection level is increased to IP66 and integrated rich safety functions, make PV plants extremely safe and reliable, actively avoid risks, rest assured to enjoy green electricity.
