  2. Solis, S6-GU350K-EHV-M12, 350000W, Invertor trifazat

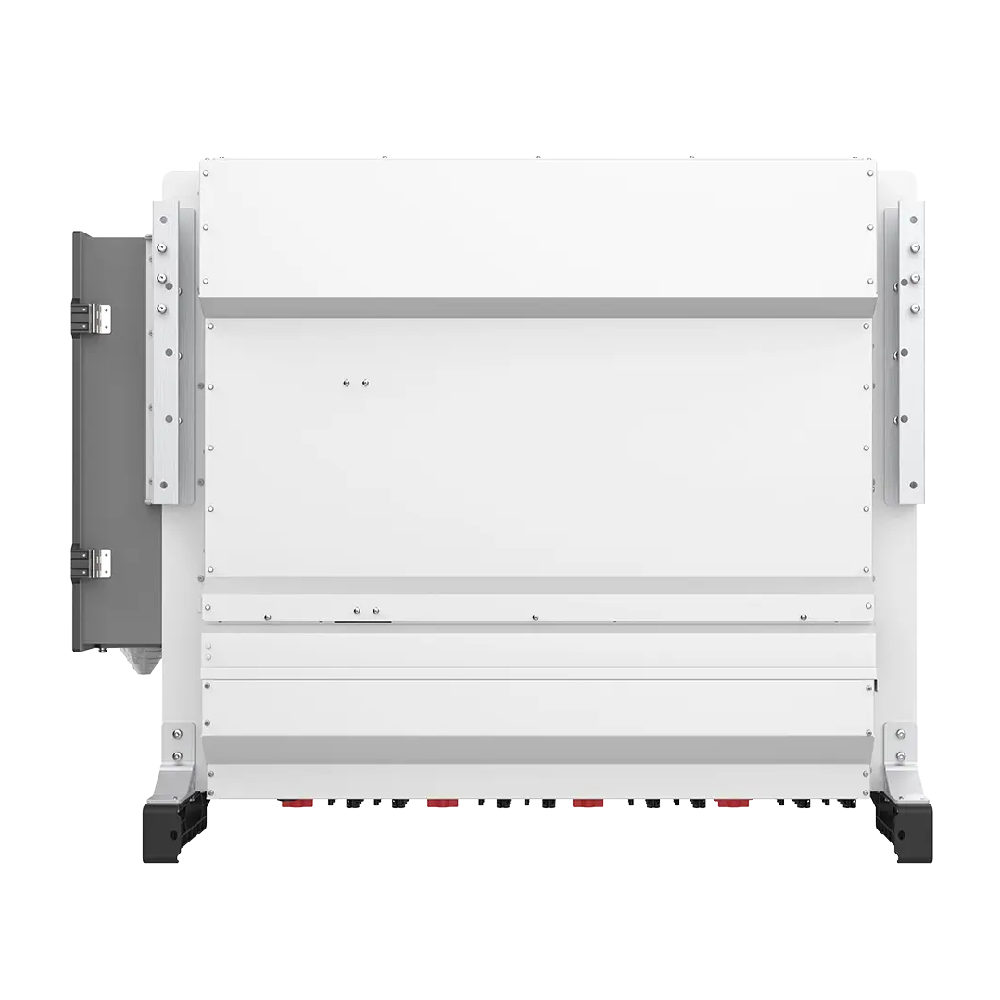

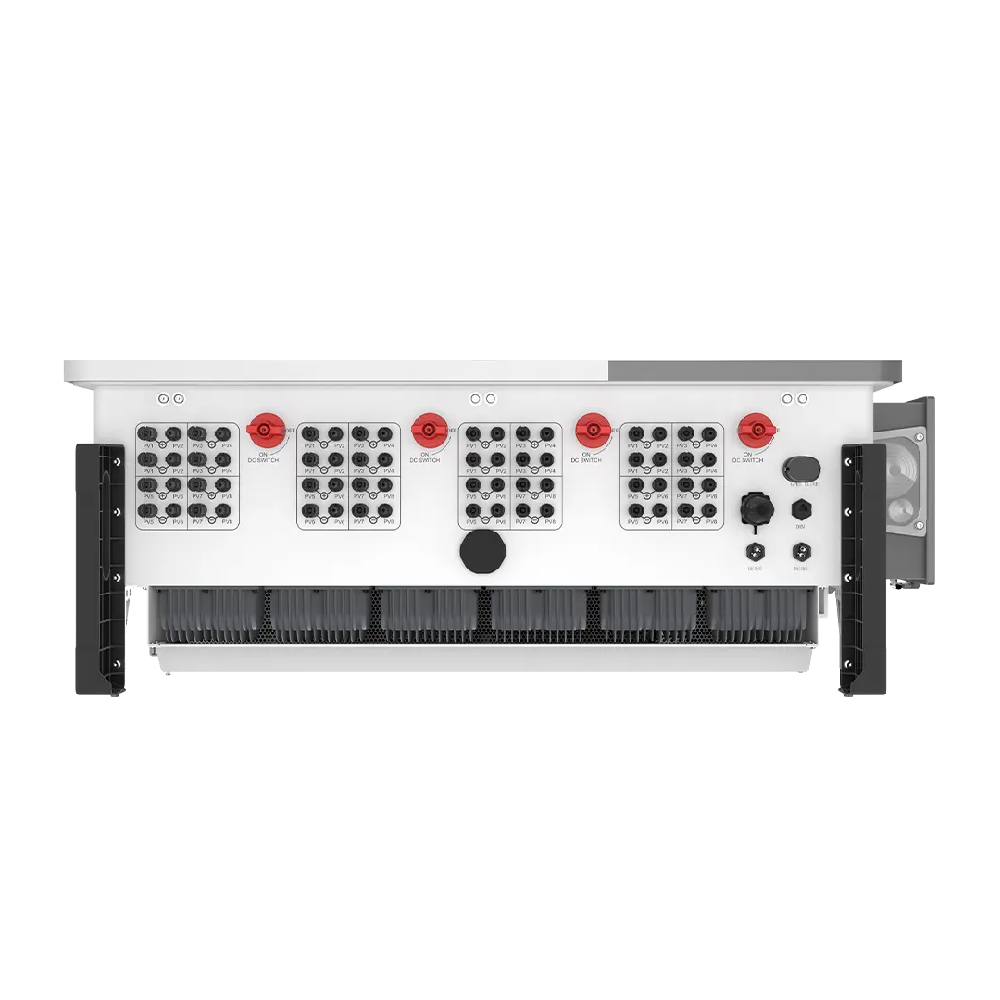

Solis, S6-GU350K-EHV-M12, 350000W, Invertor trifazat

Invertoare
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16313/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identifications
Marcă Solis
Cod producător S6-GU350K-EHV-M12
Tip Three Phase
General Specifications
Lățime 1175.0 mm
Înălțime 945.5 mm
Adâncime 446.0 mm
Greutate 134.0 Kg
Temperatura Min. de funcționare -30.0 °C
Temperatura Max. de funcționare 60.0 °C
Altitudinea Max. de operare 4000.0 m
Umiditate relativă 0-100 %
Topologie Transformerless
Evaluare IP IP66
Eficienţă Max. 99.0 %
Input
Tensiunea Max. de intrare 1500.0 V
Tensiune de intrare nominală 1080.0 V
Curent Max. de intrare 12x40 A
Max.Curent De Scurtcircuit 12x60 A
Tensiunea de pornire 500.0 V
Nr. de MPPTS 12.0
Număr max. de intrări 24.0
Intervalul de tensiune de operare MPPT 480 - 1500 V
Output
Putere de ieșire nominală 350000.0 W
Max. AC Putere aparentă 350000.0 VA
Max. Putere de ieșire N/A W
Tensiunea nominală de ieșire AC N/A VA
Frecvența nominală a rețelei 50/60 Hz
Curent Max. de ieșire 252.6 A
Distorsiune armonică totală <3 %
Factor de putere >0,99
Protection
Protecție împotriva insularizării Yes
Protecția la scurtcircuit AC Yes
AC Protecție la supracurent Yes
Detectarea izolației Yes
Protecție la supratensiune AC Yes
Protecție la supratensiune DC Yes
Conexiune inversă DC Yes
Communication
WiFi Optional: PLC
RS485 Yes
BUS de monitorizare (MBUS) N/A
Afișaj LED indicator & Bluetooth + APP
USB No

General Description & Application

S6-GU350K-EHV

Key Features:

  • Three Phase Grid-Tied Inverter

  • Solis S6 GU350K EHV three-phase PV inverters with a power of 350kW, 1500V DC input and 800 VAC output are designed to provide a more cost-effective adaptive solution for utility PV projects. It has maximum efficiency of up to 99%, with 12/16 MPPTs and 32 inputs, the string current is 20A, with perfectly matching efficient high-power PV module. Optimized DC, AC interface, and the PLC communication mode is matched to effectively reduce the investment cost of PV projects. it offers protection level up to IP66 , making the PV plant safer and more stable. High-precision strings monitoring and I-V curve scanning effectively improve plant O&M efficiency and reduce subsequent O&M costs.
