  2. GEWISS GW44139, Junction Box with High Capacity Bottom and Transparent Plain Screwed Lid, IP56, Internal Dimensions 300x220x170, Smooth Walls, Grey Ral 7035

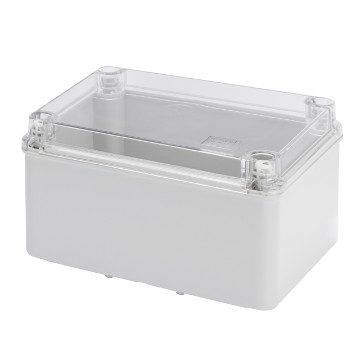

GEWISS GW44139, Junction Box with High Capacity Bottom and Transparent Plain Screwed Lid, IP56, Internal Dimensions 300x220x170, Smooth Walls, Grey Ral 7035

GEWISS GW44139, Junction Box with High Capacity Bottom and Transparent Plain Screwed Lid, IP56, Internal Dimensions 300x220x170, Smooth Walls, Grey Ral 7035

Junction Boxes
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15091/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GW44139
Product Family 44 CE Range-Technopolymer surface-mounting watertight junction boxes
General Specifications
Length 300.0 mm
Height 220.0 mm
Depth 170.0 mm
Material Technopolymer GWPLAST 75
Color Grey RAL 7035
Entries No. / Ø N/A
IP Rating IP56
Insulation class II (according to IEC 61140 standards)
Mechanical resistance IK08
Glow Wire Test 650.0 °C
Operating Temperature -25 >< +60 °C
Thermo-pressure with ball 85 °C

General Description & Application


Gama 44 CE Sealed junction boxes, with visible mounting, made of technopolymer - Connection boxes with a degree of protection up to IP56 for normal, special and industrial connections. Made of technopolymer GWT 650°C (in halogen-free material) and GWT 960°C. 11 sizes with homogeneous walls or quick-entry glands. Covers that can be shallow, deep, blind or transparent and with conventional or ¼ turn screws. Also available with high capacity backplate to create high voltage electrification systems with cable entry holes up to Ø50mm.
