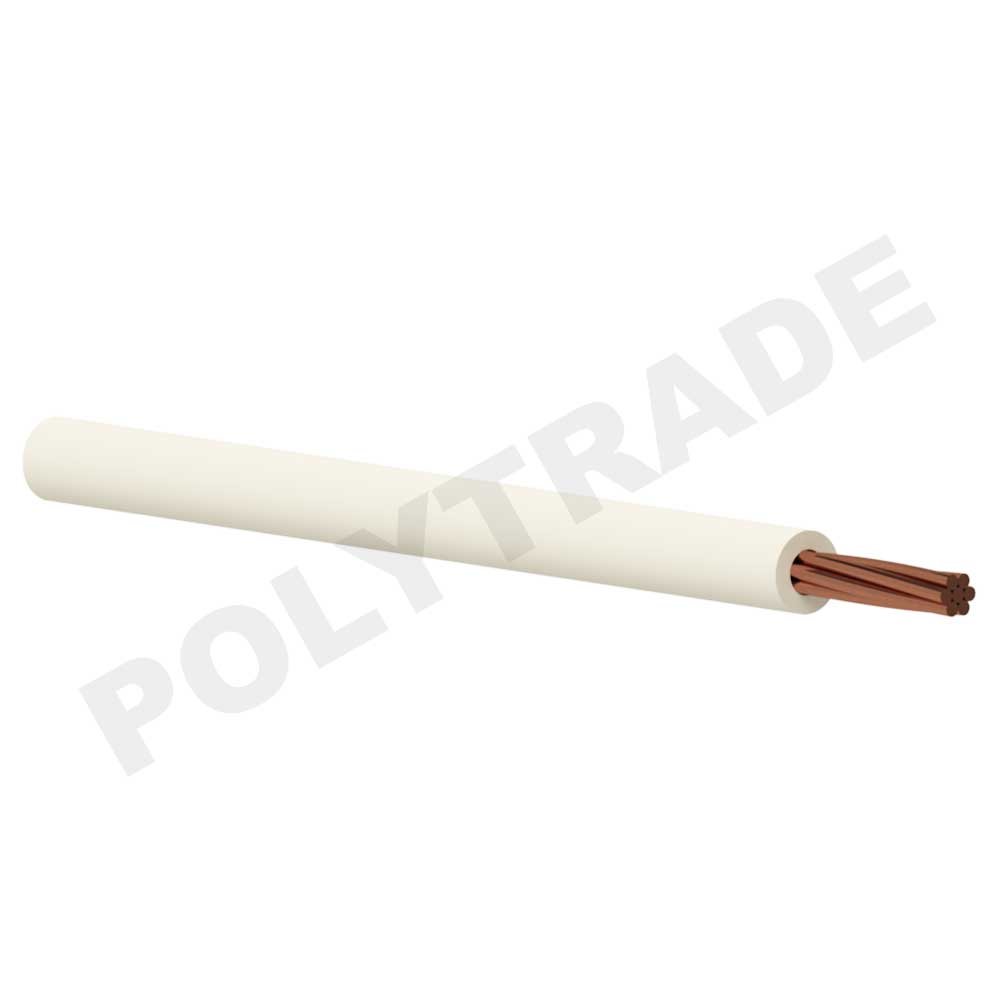

Flexible Cable H07V-R 1x2.5 CL-2 RM 450/750V

H07V-U [R] [K]
POWERVINE

Powervine is a trusted brand in the energy industry, specializing in the production of top-quality energy cables and equipment. Our products are designed to provide safe and efficient power transmission, with a focus on sustainability and environmental responsibility. We use only the highest-quality materials and the latest manufacturing techniques to ensure that our products meet the strictest industry standards for safety, reliability, and performance. Whether you're looking for cables and equipment for a renewable energy project or traditional power transmission, Powervine has the products and expertise you need to achieve your goals.

Read more
https://www.polytrade.global/web/image/product.template/1375/image_1920?unique=b734672
You have already submitted a query for this product today.
  • Color

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Specifications
Cable Type Single Core
Cable Overall Diameter 3.3 mm
Cable Weight 30 kg/km
Conductor Material Copper
Number of Conductors 1
Conductor Cross-Section 2.5 mm²
Conductor Weight 25 kg/km
Conductor Class CL-2
Conductor Type RM
Insulation Material PVC
Rated Voltage (Uo/U) 450/750 kV
Max. Permissible Operating Temperature -15 >< +70 °C
Working Temperature -15 >< +70 °C
Short Circuit Temperature 160 °C
Minimum Bending Radius (Installing) 6xD
Minimum Bending Radius (Operating) 6xD
Packing Wooden Drum, Plywood Drum, Coil, Rolls
Delivery Lengths to be confirmed by offer
Delivery Length Tolerance ±5%

General Description & Application

This cable type can be used in the housing installation, in pipes, for lighting fixtures, instrumentation panels of power switchgear,
connection of switches and sockets, and for purposes such as internal connectors in rectifier equipment, motor starters and
controllers, or other mechanically protected areas. Mounting direct in concrete or under solar impact is not allowed.

Standards

EN 50525-2-31
EN 60228
IEC 60332-1-2
EN 50575

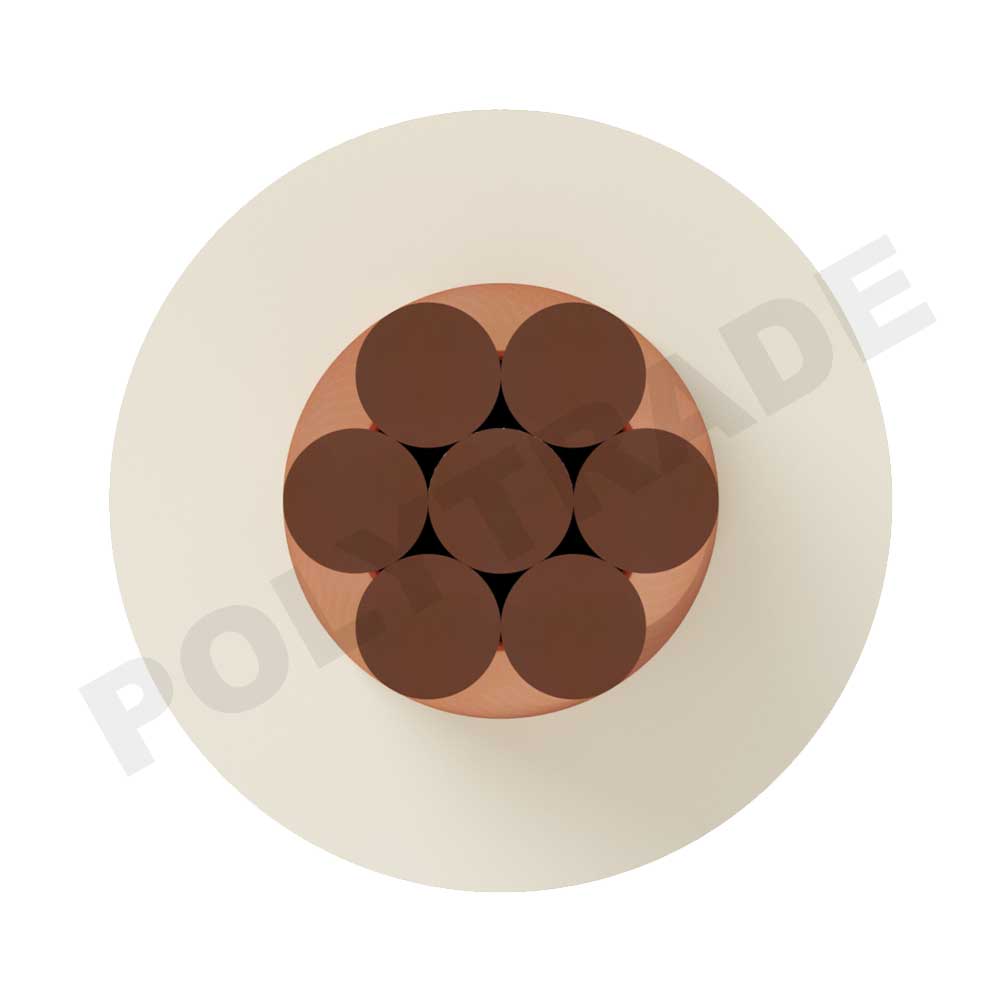

Construction

Conductor: Class 5 flexible copper conductor
Insulation: PVC
