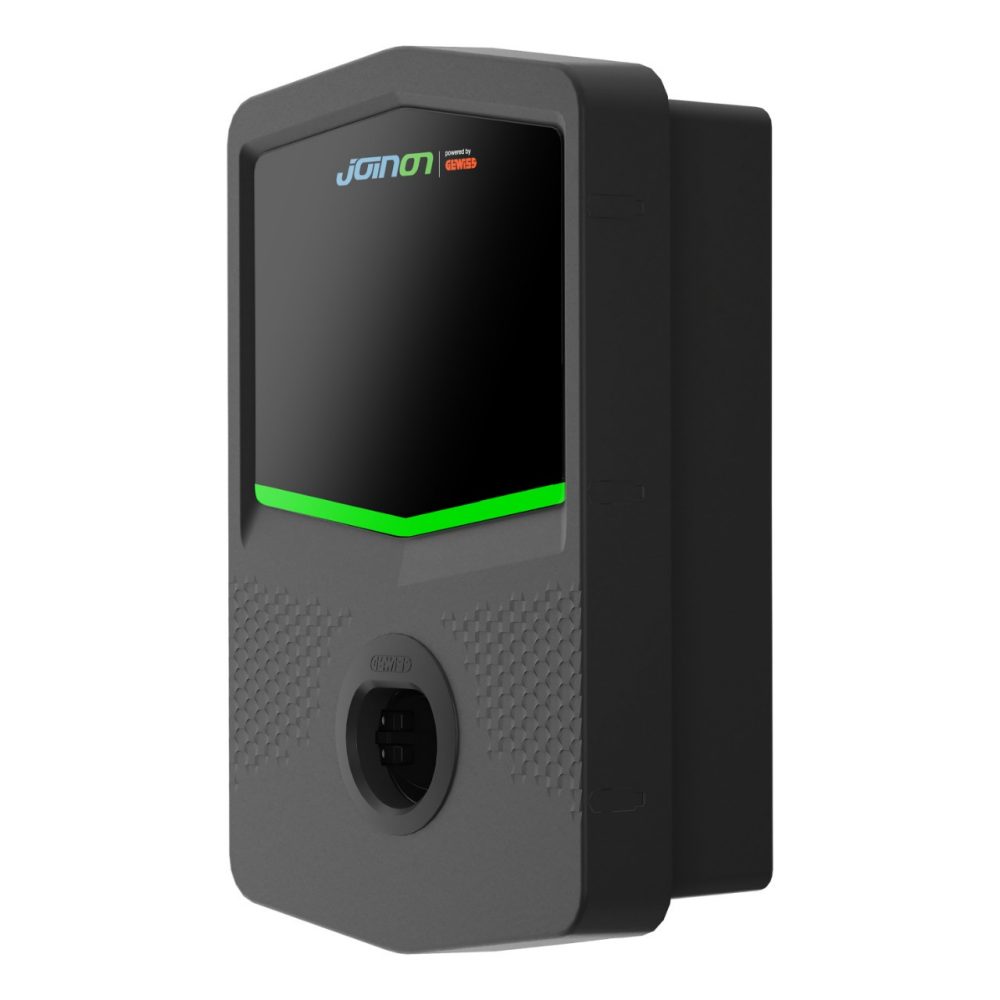

EV CHARGING STATION, GEWISS GWJ3502G I-CON EVO WALLBOX , SOCKET T2S , FREE ACCESS OR VIA APP IN M/S , WiFi + LAN , 7,4KW , DC LEAKAGE + SPD

EV CHARGING STATION, GEWISS GWJ3502G I-CON EVO WALLBOX , SOCKET T2S , FREE ACCESS OR VIA APP IN M/S , WiFi + LAN , 7,4KW , DC LEAKAGE + SPD

EV Charging Stations
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15840/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GWJ3502G
Product Family JOINON-Charging wallbox for electric vehicles I-CON EVO
General Specifications
Width 283.0 mm
Height 435.0 mm
Depth 137.5 mm
Weight Kg
Installation Wall / Flush / Floor mounting
Material POST-INDUSTRIAL recycled material
IP Rating IP55
Mechanical resistance IK11
Operating Temperature -25 >< +55 °C
Color N/A
External treatments N/A
Cable Length N/A m
Number of charging points 1.0
Input
Frequency N/A Hz
Rated current 32.0 A
Terminal blocks 3 x 16mm²
Output
Max. Output Power 7,4 kW
Socket/Connector Nr. (Type) Type 2 Fixed socket (IPxxD)
Rated Voltage (Uo/U) 230.0
DC output current range N/A
Protection
Thermal-magnetic protection N/A
Type of residual current protection N/A
DC Leakage check DC Leakage 6mA
Input Protection N/A
Output Protection N/A
Communication
Human Interface LED
Connectivity Wifi+Ethernet

General Description & Application


I-CON EVO wallboxes are JOINON solutions designed to integrate into private and semi-public scenarios in accordance with the international standard IEC 61851-1 ed. 3. They are distinguished by both an elegant and compact design and special "one-hand charge" functionality. At the same time, the presence of a vandal-proof socket and IP55 degree combined with IK11-certified mechanical strength make them safe and reliable solutions. In addition, I-CON EVO wallboxes feature full connectivity to support the related JOINON EVO App for full and easy control of charging, intelligent management of loads and additional energy produced by any photovoltaic panels (also in Master/Slave mode), and several installation options: wall-mounted, flush-mounted, or floor-mounted.
