  2. EV CHARGING STATION, GEWISS GWJ2404T I-ON EVO WALLBOX , SOCKET T2S , CONTROLLED ACCESS IN M/S , WiFi + LAN , 22KW+22KW , RFID , DC LEAKAGE + RCBO

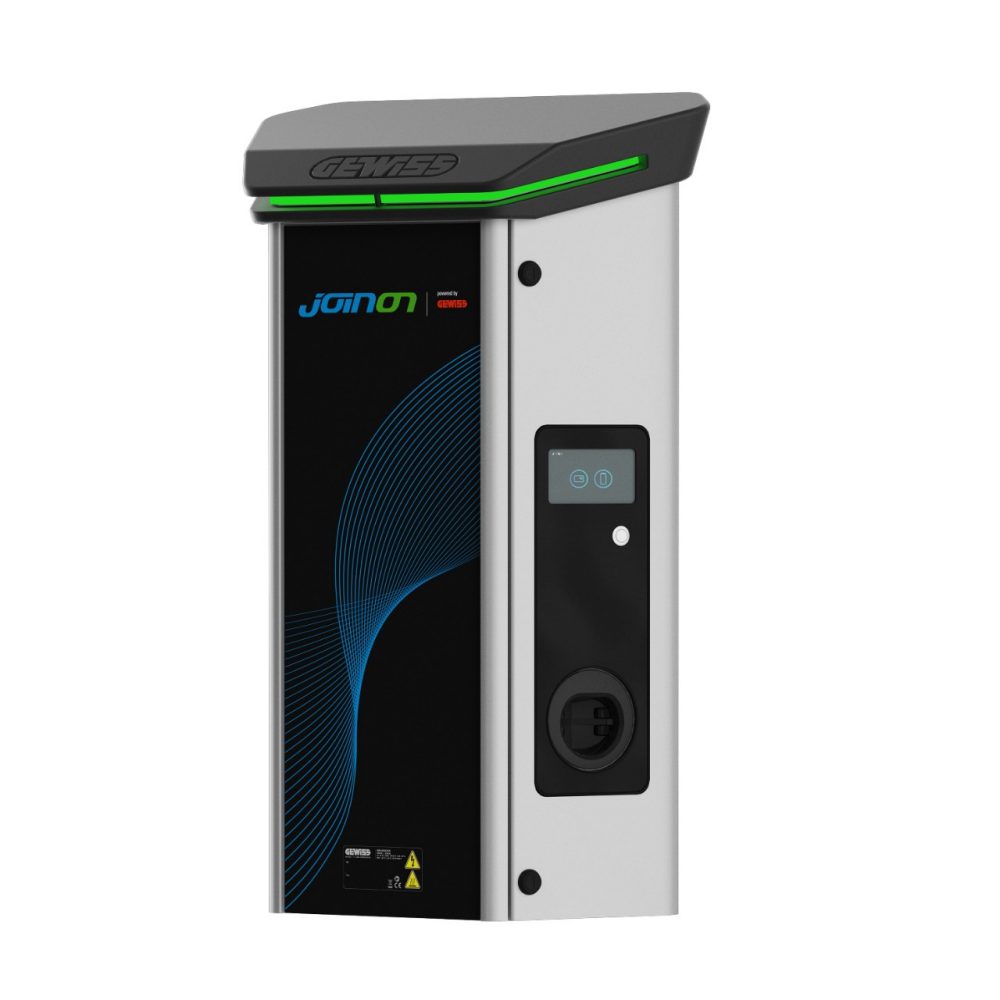

EV CHARGING STATION, GEWISS GWJ2404T I-ON EVO WALLBOX , SOCKET T2S , CONTROLLED ACCESS IN M/S , WiFi + LAN , 22KW+22KW , RFID , DC LEAKAGE + RCBO

EV CHARGING STATION, GEWISS GWJ2404T I-ON EVO WALLBOX , SOCKET T2S , CONTROLLED ACCESS IN M/S , WiFi + LAN , 22KW+22KW , RFID , DC LEAKAGE + RCBO

EV Charging Stations
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15911/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GWJ2404T
Product Family JOINON-Charging station for electric vehicles I-ON EVO
General Specifications
Width 495.0 mm
Height 1562.0 mm
Depth 259.0 mm
Weight Kg
Installation On the wall or on the pole
Material Steel sheet
IP Rating IP55
Mechanical resistance IK10
Operating Temperature -25 >< +55 °C
Color Grey Chassis, Cap RAL7016
External treatments Epoxy powder coating
Cable Length N/A m
Number of charging points 2.0
Input
Frequency N/A Hz
Rated current 64.0 A
Terminal blocks 5 x 70 mm²
Output
Max. Output Power 22 kW + 22 kW
Socket/Connector Nr. (Type) N/A
Rated Voltage (Uo/U) 400.0
DC output current range 32A + 32A
Protection
Thermal-magnetic protection 32A - 4P - Curve C
Type of residual current protection 32A - 4P - Type A
DC Leakage check DC Leakage 6mA
Input Protection N/A
Output Protection N/A
Communication
Human Interface 4.3'' graphic display
Connectivity Wifi+Ethernet

General Description & Application


The I-ON EVO (floor-mounted) and I-ON EVO WALL (wall-mounted) charging units are JOINON's solutions for semi-public and public use, designed to withstand any impact, stress, vandalism, weather, etc. and are also prepared for full connectivity combined with the JOINON EVO platform and App. The unique hexagonal design allows the units to adapt to any urban scenario and parking configuration, with an optimal User Experience thanks to the vandal-proof plug-in modules equipped with full-color graphical displays that ensure better service fruition for the EV Driver user. They are available with standard JOINON graphics, which can be customized upon specific request.
