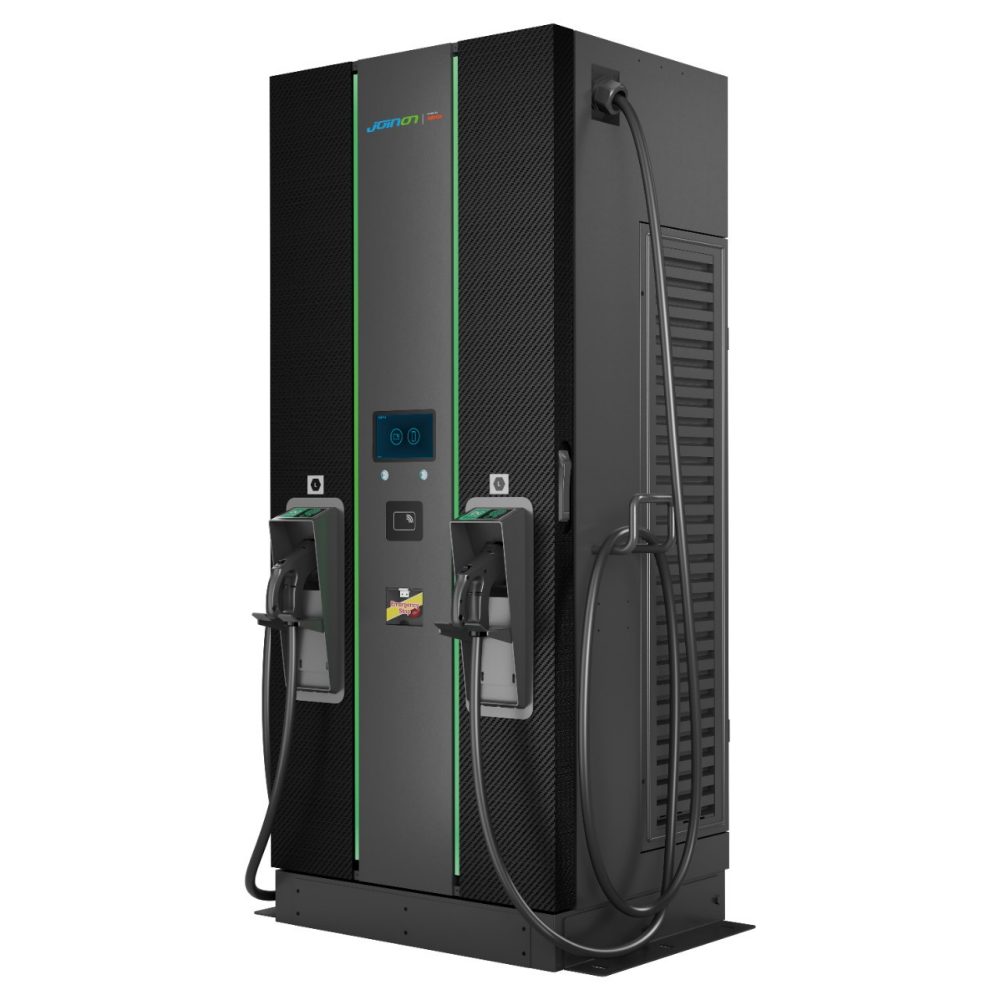

  2. EV CHARGING STATION, GEWISS GWJ9263M I-FAST , FLOOR MOUNTING , MID AC , TYPE 1xCCS2 + 1xCHA , CABLE 4,5m , 180 kW , Wifi+ETHERNET+4G , IP55
EV CHARGING STATION, GEWISS GWJ9263M I-FAST , FLOOR MOUNTING , MID AC , TYPE 1xCCS2 + 1xCHA , CABLE 4,5m , 180 kW , Wifi+ETHERNET+4G , IP55

EV CHARGING STATION, GEWISS GWJ9263M I-FAST , FLOOR MOUNTING , MID AC , TYPE 1xCCS2 + 1xCHA , CABLE 4,5m , 180 kW , Wifi+ETHERNET+4G , IP55

EV Charging Stations
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15976/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GWJ9263M
Product Family JOINON-Charging station for electric vehicles I-FAST
General Specifications
Width 800.0 mm
Height 1900.0 mm
Depth 650.0 mm
Weight 500.0 Kg
Installation N/A
Material N/A
IP Rating IP55
Mechanical resistance IK10 (not including screen & RFID module)
Operating Temperature -30 >< +50 °C
Color N/A
External treatments N/A
Cable Length 4.5 m
Number of charging points 1.0
Input
Frequency 50 / 60 Hz
Rated current 3Φ 260 A
Terminal blocks N/A
Output
Max. Output Power 180 kW
Socket/Connector Nr. (Type) N/A
Rated Voltage (Uo/U) 3Φ 380 ÷ 415
DC output current range CCS2: 200A (peak at 250A) CHAdeMO: 120A
Protection
Thermal-magnetic protection N/A
Type of residual current protection N/A
DC Leakage check N/A
Input Protection OVP, OCP, OPP, OTP, UVP, RCD, SPD
Output Protection SCP, OCP, OVP, LVP, OTP, IMD
Communication
Human Interface 7'' LCD
Connectivity Ethernet, Wi-Fi and 4G

General Description & Application


I-FAST products are JOINON's DC fast-charging solutions ideal for charging all types of electric vehicles equipped with high-voltage systems in private or public high-rotation parking lots, highways and service areas. The offer consists of wallboxes up to 30 kW and stations up to 180 kW. They feature an elegant design and finishes that make them an urban and extra-urban furnishing product, with a graphic display for a better User Experience and use of services for the EV Driver user.
