  2. GEWISS GW92568, Miniature Circuit Breaker, MT 100 - 3P Characteristic B 16A, 3 modules

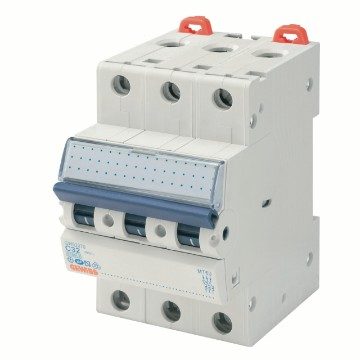

GEWISS GW92568, Miniature Circuit Breaker, MT 100 - 3P Characteristic B 16A, 3 modules

GEWISS GW92568, Miniature Circuit Breaker, MT 100 - 3P Characteristic B 16A, 3 modules

Circuit Breakers
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/11190/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GW92568
Circuit Breaker Type MINIATURE CIRCUIT BREAKER
Product Family 90 MCB Range-Modular circuit breakers for circuit protection
General Specifications
Number of poles 3P
Rated current 16.0 A
Auxiliaries compatibility N/A
ReStart compatibility N/A
No. modules 3
Rated residual operating current N/A mA
Rated frequency 50/60 Hz
Insulation voltage (Ui) 500.0 V
Rated impulse withstand voltage (Uimp) 4.0 kV
Overvoltage category N/A
Operating Temperature -25 >< +60 °C
Stocking temperature -40 >< +70 °C
Electrical endurance 10.000
Mechanical endurance 20.000
Curve B
Energy limiting class N/A
Standards EN 60898, EN 60947-2

General Description & Application


The 90 RCD range meets any ground fault protection requirement for any area of application.


The range comprises MDC compact residual current c.b. with overcurrent protection. (from 6 to 32 A, curves B and C, up to 10 kA and lΔn from 30 and 300 mA type AC, A, A[IR] and A[S] and F) BD and BDHP, add-on residual current devices for circuit breakers MT and MTHP (lΔn from 10 mA to 3 A type AC, A, A[IR], A[S] and A adjustable) IDP residual current circuit breakers (up to 125 A, lΔn from 10 to 500 mA type AC, A, A[IR], A[S], F, B).
