Transformer, Pole Type, 012-06069, Single Phase Oil Immersed Dist Transformer 37.5KVA 13.2/22.86 120/240SS
Product Code:
PTG166.00010
Transformer, Pole Type, 012-06069, Single Phase Oil Immersed Dist Transformer 37.5KVA 13.2/22.86 120/240SS
Product Code:
PTG166.00010
GRAND VOLTAGE
Grand Voltage leads the way in innovation, providing an extensive array of meticulously crafted products designed for medium and high voltage applications, showcasing our dedication to revolutionizing electric substations and overhead lines for enhanced innovation, efficiency, and dependability. Our offerings span a wide spectrum of products, from intricately engineered post insulators ensuring optimal insulation to robust suspension and tension insulators capable of withstanding mechanical stress. Our insulator strings are the bedrock of reliability in critical electrical systems, while advanced switch disconnectors offer impeccable control over circuits. Our cutting-edge transformers and generators redefine energy distribution with unmatched efficiency and dependability. Additionally, our forward-looking approach to energy management is manifested in our energy storage solutions, ensuring efficiency and stability. Embrace sustainable progress through our pioneering charging stations, driving the electric vehicle revolution.
Read more
Transformer, Pole Type, 012-06069, Single Phase Oil Immersed Dist Transformer 37.5KVA 13.2/22.86 120/240SS
Transformer, Pole Type, 012-06069, Single Phase Oil Immersed Dist Transformer 37.5KVA 13.2/22.86 120/240SS
0.00 €
without VAT
1.00 lei
| General Specifications | |
|---|---|
| Type | Pole Mounted / Oil Immersed Hermetically Sealed |
| Number of Phase | 3.0 |
| Frequency | 60.0 Hz |
| Rated Power | 37.5 kVA |
| Rated Voltages | 13.2 ( 22.86 ) / 0,12 ( 0,24 ) kV |
| Voltage Regulation Range | ±2 x % 2,5 (Off load HV Side) |
| Vector Group | Ii0 |
| Type of Cooling | ONAN |
| Overload | According to IEC 354 |
| Over Voltage | 0.05 |
| Impedance Voltage (at C.M.R. 75ºC) | 4,0 ± % 10 |
| Short Circuit Withstand Duration | 2s |
| Power Frequency Voltage Level (HV/LV) | 10 kV ( 20 kV ) / 3 kV |
| Impulse Voltage Level (BIL) (HV/LV) | 40 kV ( 60 kV ) / - |
| Load Losses (at C.M.R. 75ºC) | 1000.0 W |
| No-Load Losses (at normal voltage) | 300.0 W |
| Max. Ambient Temperature | 40.0 °C |
| Windings Temperature Rise | 65.0 °C |
| Oil Temperature Rise | 60.0 °C |
| Conductor Material | Electrolytic Aluminium |
| Standards | IEC 60076 |
| Dimensions | |
| Length | 800.0 mm |
| Height | 980.0 mm |
| Total Weight | 550.0 Kg |
| Oil Weight | 200.0 Kg |
| Weight of Active Parts | 280.0 Kg |
| Accessories | |
| Accessories supplied with transformer |
|

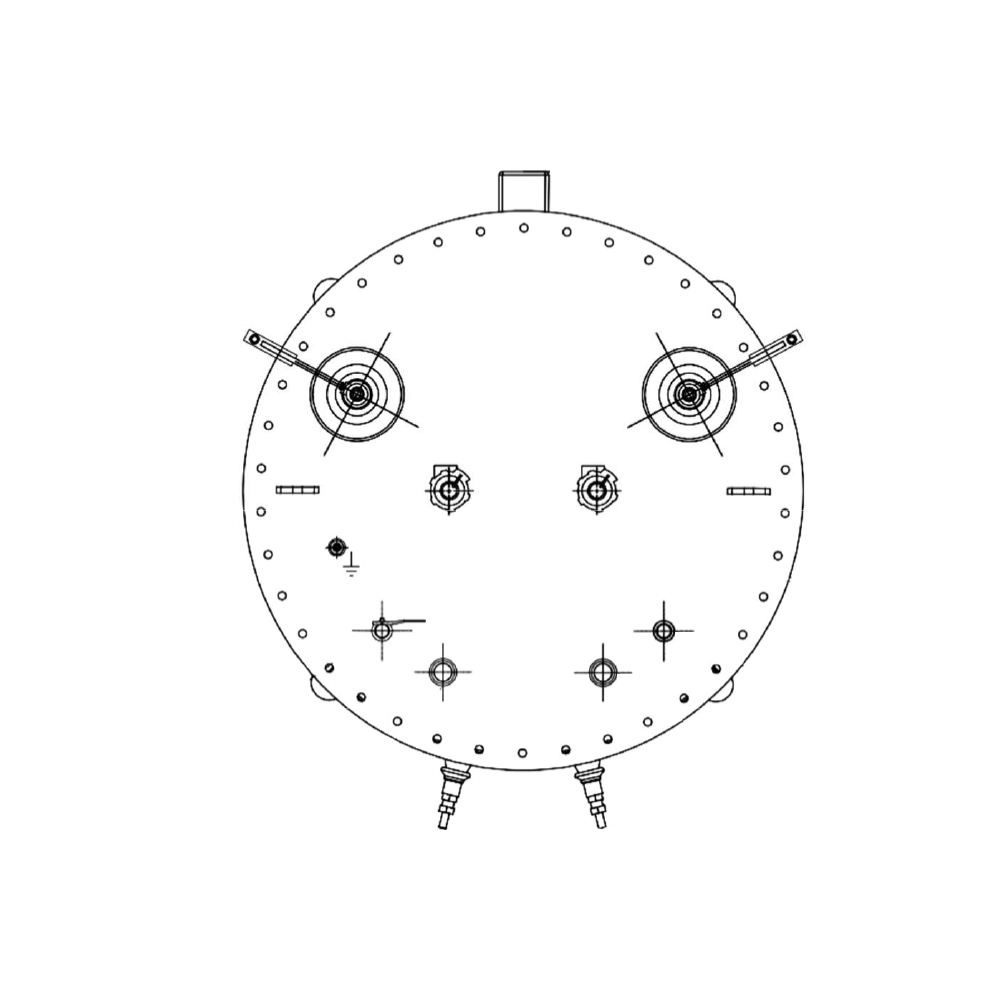

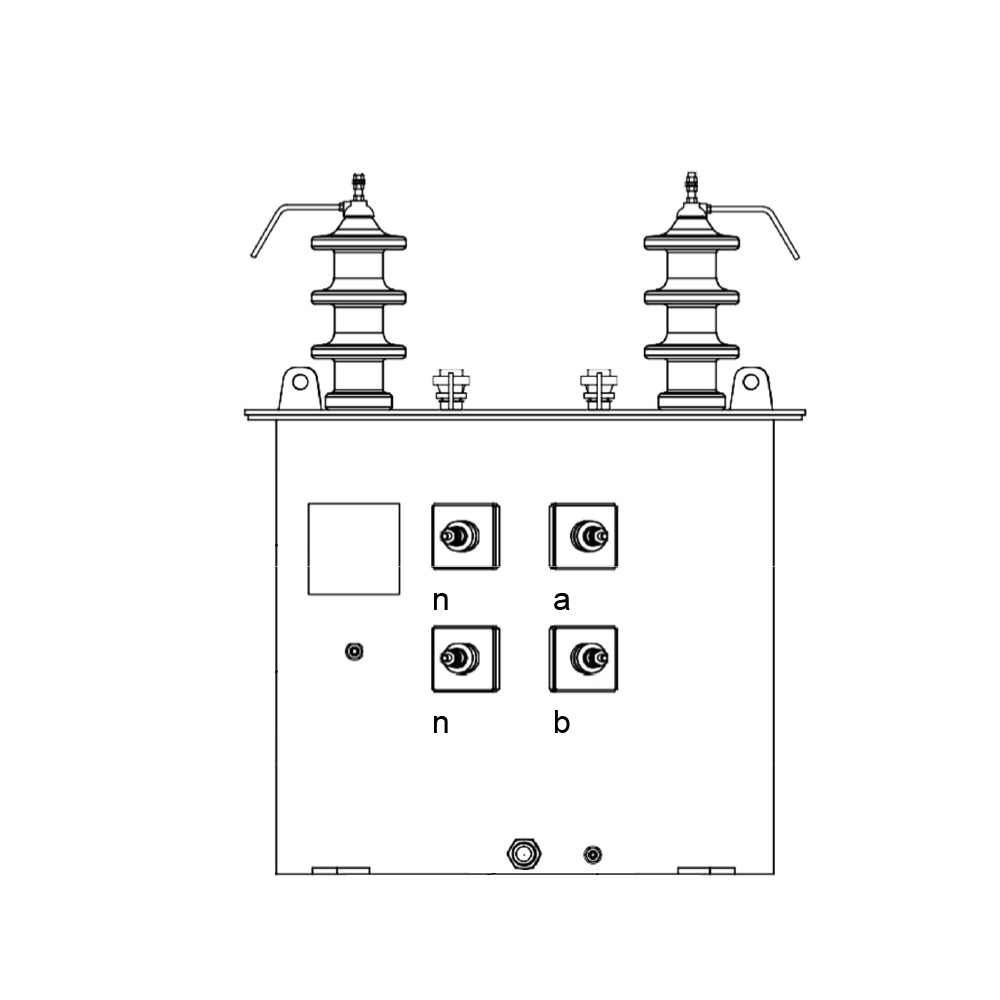

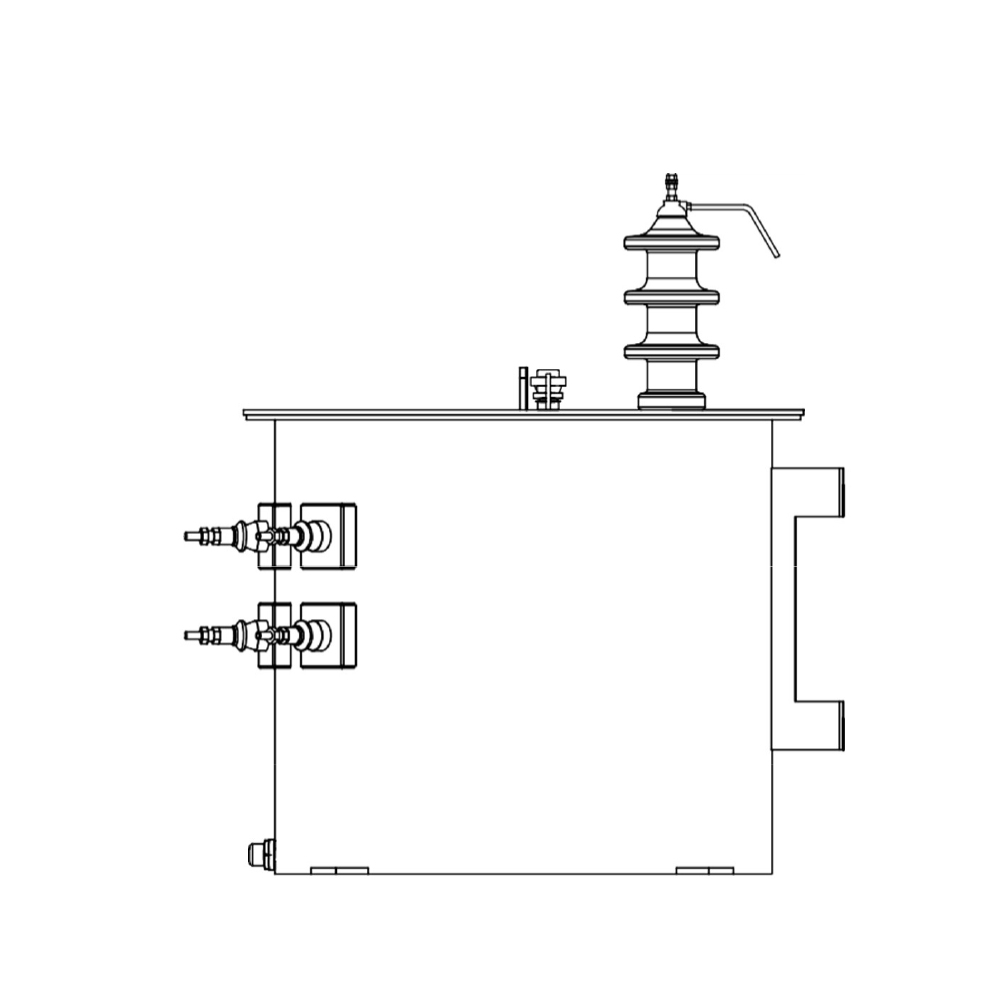

| Technical Drawings | |
| Technical Drawings |
|
