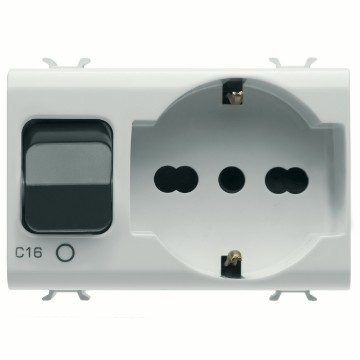

GEWISS GW15312, Interlocked Switched Socket Outlet, 2P+E 16A, P40, with Miniature Circuit Breaker 1P+N 16A, 230V Ac, 3 Modules, Satin White, Chorusmart.

GEWISS GW15312, Interlocked Switched Socket Outlet, 2P+E 16A, P40, with Miniature Circuit Breaker 1P+N 16A, 230V Ac, 3 Modules, Satin White, Chorusmart.

Sockets
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/14022/image_1920?unique=9945577
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GW15312
Product Family CHORUSMART - Domestic range-Satin white modular devices
General Specifications
Type Dual amperage interlocked socket-outlet
Number of poles 2P+E - 16A
Color Satin White
Material Technopolymer
Modules No. 3
Voltage 230V ac
Characteristics N/A
Wiring terminals With screw
Resistance at test voltage 2000 V at 50 Hz for 1 minute
Insulation Resistance > 5 MΩ
Standards IEC 60884-1; EN 60898-1

General Description & Application


CHORUSMART - Domestic range Satin white modular devices - The CHORUSMART modular devices make it possible to create infinite combinations between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colors and finishes: satin white, distinctive and elegant. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimize space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs. Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
