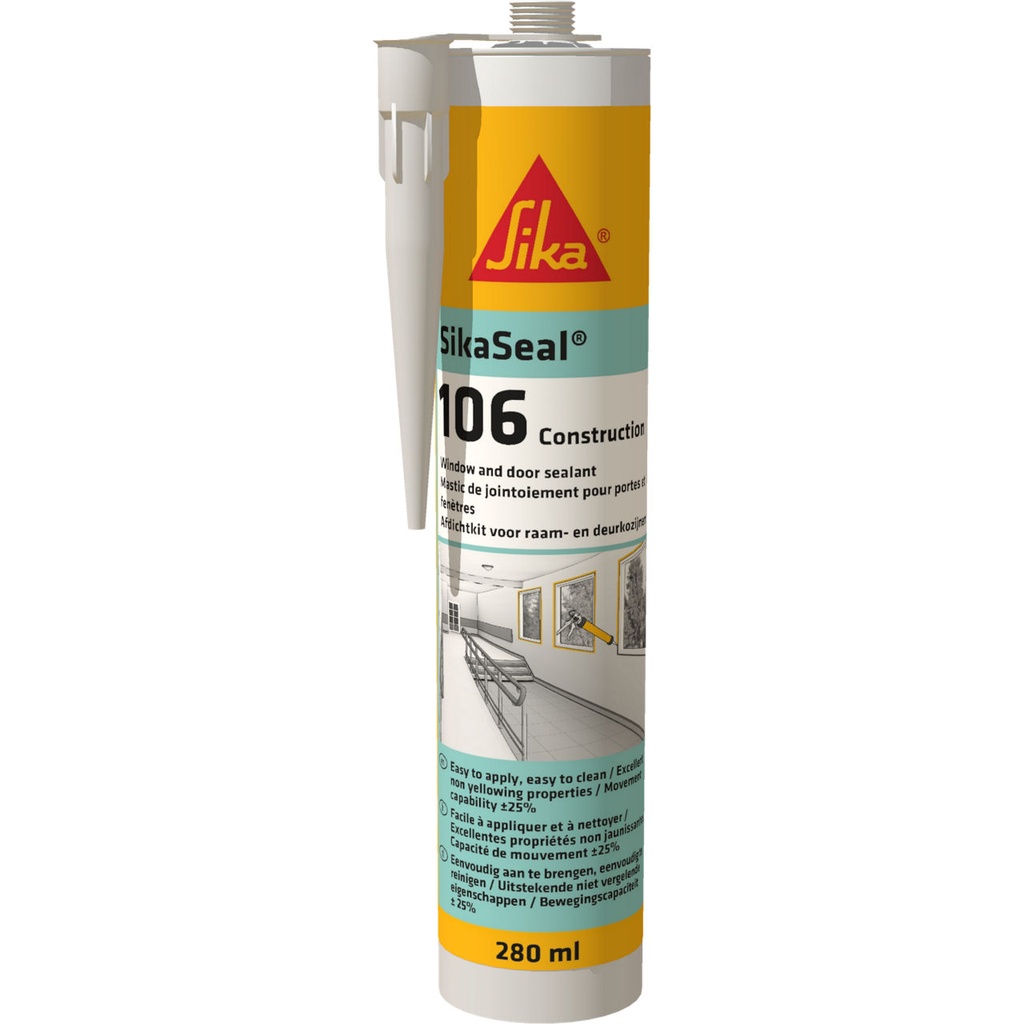

SikaSeal-106 Construction, Hydroflex Sealant for Connection Joints, Interior & Exterior, White, 280 mL
SIKA
Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.
Read more| Hydroflex construction sealant for connection joints SikaSeal-106 Construction is an elastic construction sealant for connection joints based on Sika’s innova-tive water-borne Hydroflex technology. Its good adhesion to most construction materials makes it especially suitable for a variety of interior and exterior sealing applications.
| ||||||||||||||
UsageSealing joints for: ▪ Connection joints ▪ Window and door frames ▪ Precast concrete elements ▪ Applications requiring over-painting of sealant ▪ Interior and exterior useAdvantages
Packaging
ColourWhite | ||||||||||||||
Technical Information Shore A Hardness ~15 (after 28 days) (ISO 868) Secant Tensile Modulus ~0,10 N/mm2 at 60 % elongation (23 °C) ~0,40 N/mm2 at 60 % elongation (−20 °C) (ISO 8339) Tear Propagation Resistance ~2,0 N/mm (ISO 34) Movement Capability ±25 % ±25 % (ISO 9047) (ASTM C 719) Service Temperature -40 °C min. / +70 °C max. Joint Design The joint dimensions must be designed to suit the movement capability of the sealant. The joint width must be ≥ 5 mm and ≤ 15 mm. The joint depth must be ≥ 5 mm and ≤ 10 mm. A width to depth ratio between 2:1 to 1:1 must be maintained (min / max examples, see table below). Joint width [mm] Joint depth [mm] min. 5 min. 5 max. 15 max. 10 All joints must be correctly designed and dimensioned in accordance with the relevant standards and codes of practice before their construction. The basis for calculation of the necessary joint widths are the type of structure, dimensions, technical values of the adjacent building materials, joint sealing material, and the specific exposure of the building and the joints. For larger joints contact Sika Technical Services for additional information. | ||||||||||||||
Application Information Backing Material Use closed or open cell, polyethylene foam backing rod Sag Flow
Ambient Air Temperature +5 °C min./+40 °C max. Substrate Temperature +5 °C min./+40 °C max. Minimum +3 °C above dew point temperature Curing Rate
Skin Time
Tooling Time
|
