  2. REC SOLAR, REC390AA Pure Alpha, Standard Monofacial Monocrystalline PERC half-cut cells 390Wp Solar Panel

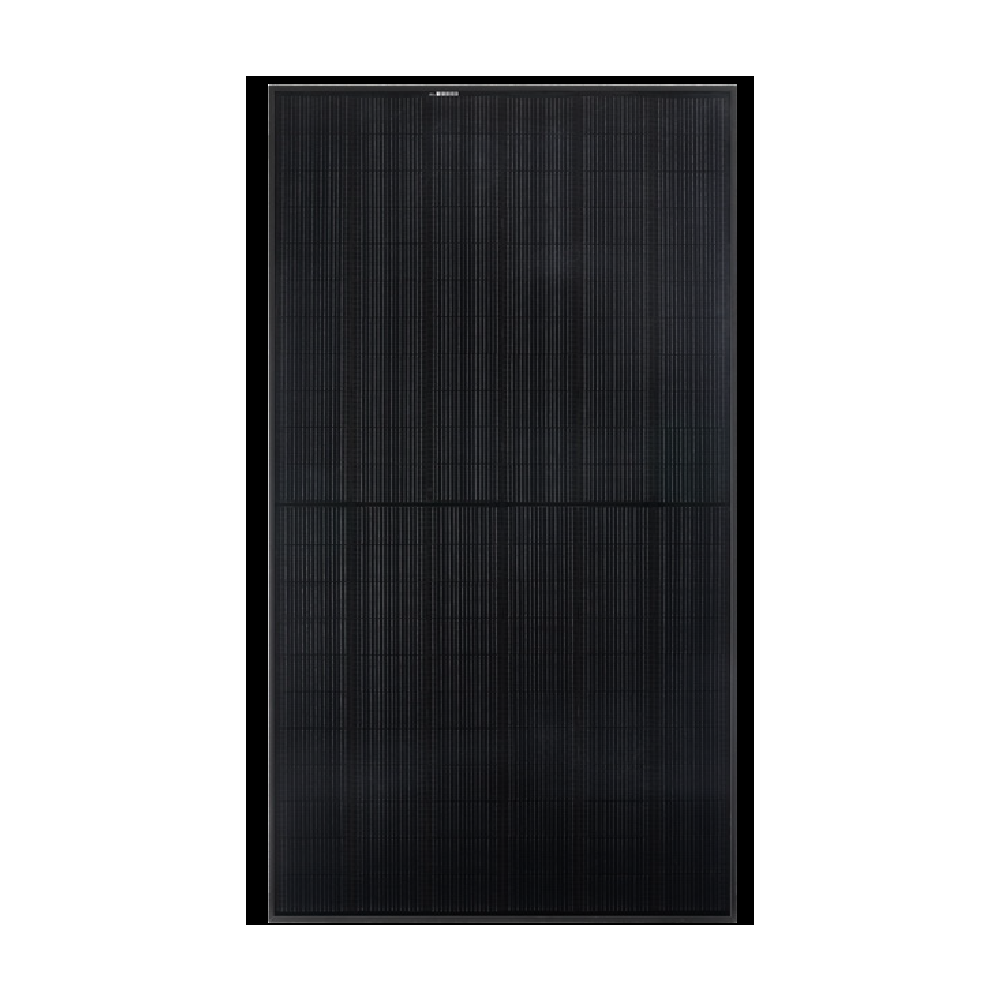

REC SOLAR, REC390AA Pure Alpha, Standard Monofacial Monocrystalline PERC half-cut cells 390Wp Solar Panel

PV Panels
REC SOLAR

Founded in 1996, REC Group is an international pioneering solar energy company dedicated to empowering consumers with clean, affordable solar power. As Solar’s Most Trusted, REC is committed to high quality, innovation, and a low carbon footprint in the solar materials and solar panels it manufactures.

Read more
https://www.polytrade.global/web/image/product.template/5306/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand REC SOLAR
Product Code REC390AA Pure Alpha

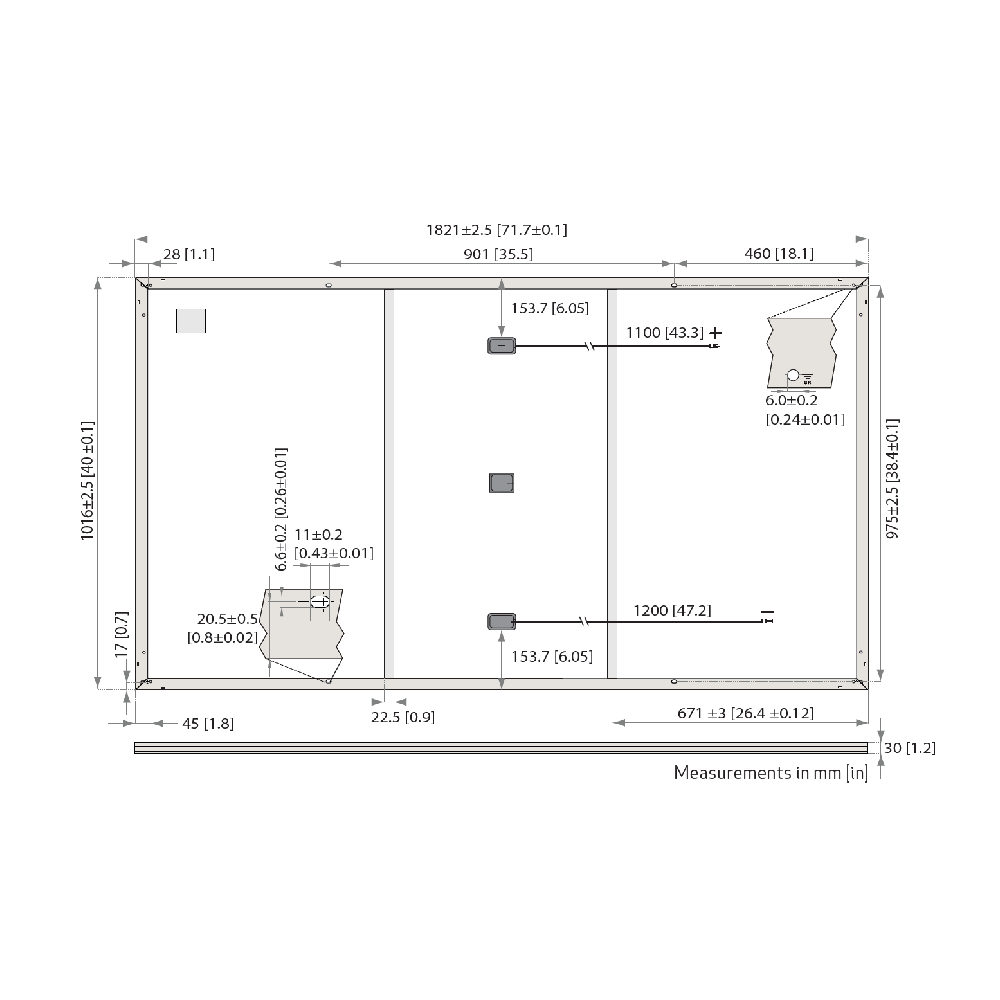

Design & Mechanical Specification
Panel Type Monofacial
Panel Surface Standard
Panel Weight 20.5 Kg
Panel Length 1821.0 mm
Panel Width 1016.0 mm
Panel Thickness 30.0 mm
Cell Material Monocrystalline
Cell Type PERC half-cut cells
No. of Cells 132.0
Cell Dimension N/A
Glass Type Single
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type Anodized aluminum
Connector Type MC4
Wind Load 4000.0 Pa
Mechanical Load 7000.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 390.0 Wp
Maximum Operating Voltage - Vmpp 40.6 V
Maximum Operation Current - Impp 9.61 A
Open Circuit Voltage - Voc 48.4 V
Short Circuit Current - Isc 10.38 A
Module Efficiency - η 21.1 %
Power Tolerance (+)3% Wp
Maximum System Voltage 1000.0 V
Maximum Series Fuse Rating 25.0 A
Warranty
Products Warranty 25.0 yrs
Performance Warranty 25.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
