  2. QCELLS, Q.PEAK-DUO-ML-G10.2-395W, Standard Monofacial Monocrystalline Half-Cells 400Wp Solar Panel

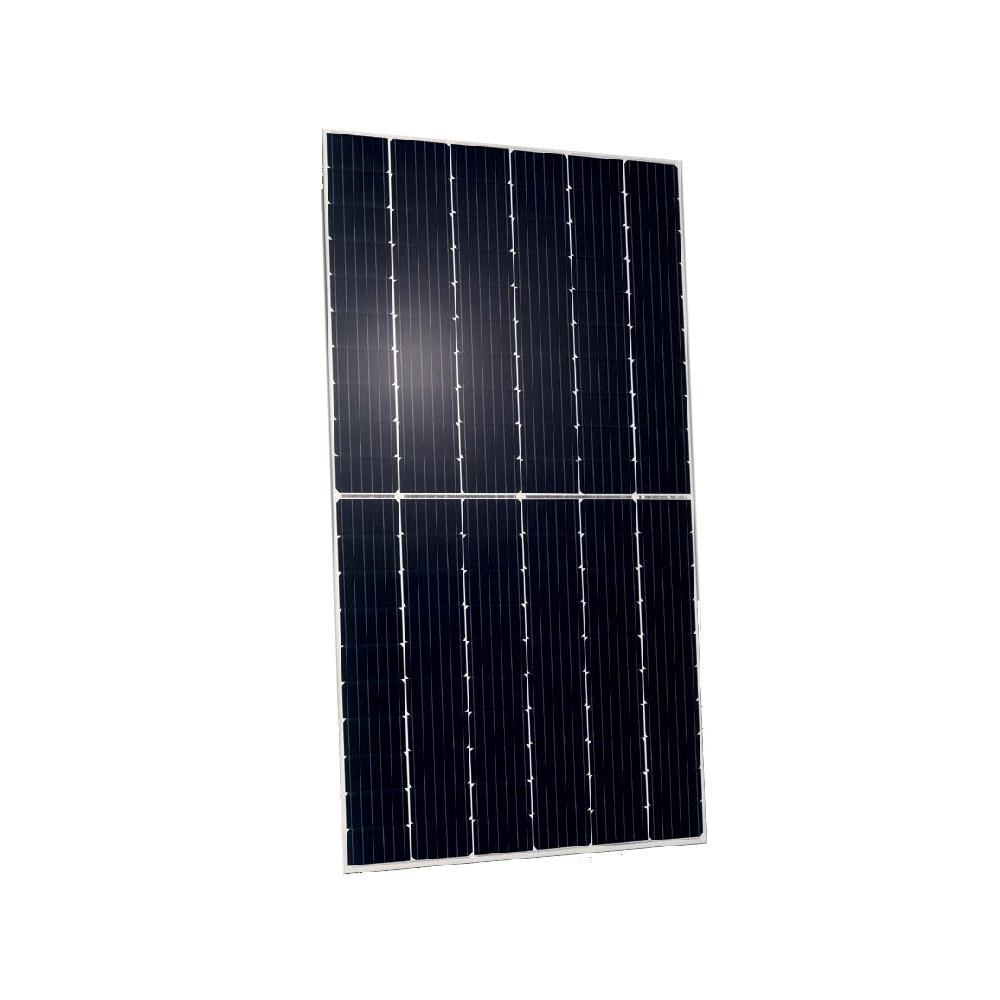

QCELLS, Q.PEAK-DUO-ML-G10.2-395W, Standard Monofacial Monocrystalline Half-Cells 400Wp Solar Panel

PV Panels
QCELLS

Hanwha Qcells (commonly known as simply Qcells) is a major manufacturer of photovoltaic cells. The company is headquartered in Seoul, South Korea, after being founded in 1999 in Bitterfeld-Wolfen, Germany, where the company still has its engineering offices. Qcells was purchased out of bankruptcy in August 2012 by the Hanwha Group, a South Korean business conglomerate. Qcells now operates as a subsidiary of Hanwha Solutions, the group's energy and petrochemical company.

Read more
https://www.polytrade.global/web/image/product.template/5752/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand QCELLS
Product Code Q.PEAK-DUO-ML-G10.2-395W
Design & Mechanical Specification
Panel Type Monofacial
Panel Surface Standard
Panel Weight 22.0 Kg
Panel Length 1879.0 mm
Panel Width 1045.0 mm
Panel Thickness 32.0 mm
Cell Material Monocrystalline
Cell Type Half-Cells
No. of Cells 132.0
Cell Dimension
Glass Type Single
Encapsulation Type EVA
Junction Box IP Rate 67.0
Frame Type Black anodised aluminium
Connector Type St ubli MC4-Evo2, Hanwha Q CELLS HQC4
Wind Load 5400.0 Pa
Mechanical Load 4000.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 400.0 Wp
Maximum Operating Voltage - Vmpp 37.59 V
Maximum Operation Current - Impp 10.64 A
Open Circuit Voltage - Voc 45.06 V
Short Circuit Current - Isc 11.16 A
Module Efficiency - η 20.4 %
Power Tolerance 5.0 Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 20.0 A
Warranty
Products Warranty 12.0 yrs
Performance Warranty 25.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
