  2. GEWISS GW46054, Placă din oțel inoxidabil satinat cu ușă simplă prevăzută cu încuietoare 405x650x200, IP55

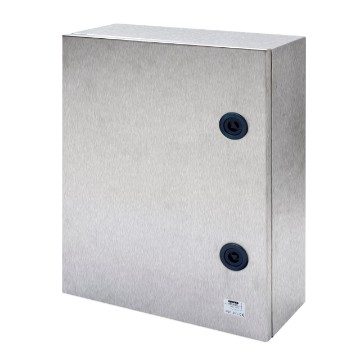

GEWISS GW46054, Placă din oțel inoxidabil satinat cu ușă simplă prevăzută cu încuietoare 405x650x200, IP55

GEWISS GW46054, Placă din oțel inoxidabil satinat cu ușă simplă prevăzută cu încuietoare 405x650x200, IP55

Panouri electrice
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15657/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identification
Brand GEWISS
Cod Producator GW46054
Gama produs 46 Range-Watertight surface-mounting distribution and automation boards
General Specifications
Material Stainless steel from 10/10 to 15/10 (e.g. AISI 304)
Culoare N/A
Culoarea ușii N/A
Lungime 405.0 mm
Înăltime 650.0 mm
Adăncime 200.0 mm
Evaluare IP IP55
Clasa de izolație Pre-arranged with earth terminal
Rezistență mecanică IK10
Nr. Module 72 (18x4)
Blocuri terminale max. instalabile N/A
Test de încercare cu fir incandescent N/A °C
Temperatura de funcționare -25 >< +60 °C
Termo-presiune cu bilă N/A °C
Standarde EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

General Description & Application


Range 46 Sealed switchboards and automation panels, with visible mounting - The offer includes: 46QP panels - monobloc polyester versions, halogen-free, filled with glass fiber, protection degree IP66 and a new concept of transparent doors; painting 46 QM - metal; table 46 QX - Stainless steel; completing the offer, the 44 CEP range - monobloc technopolymer, halogen-free; paintings 46 QP; QM and 44CEP are available in versions with transparent and solid doors, respectively. 46QP range;; The QM and QX models stand out for their unity and diversity of accessories.
