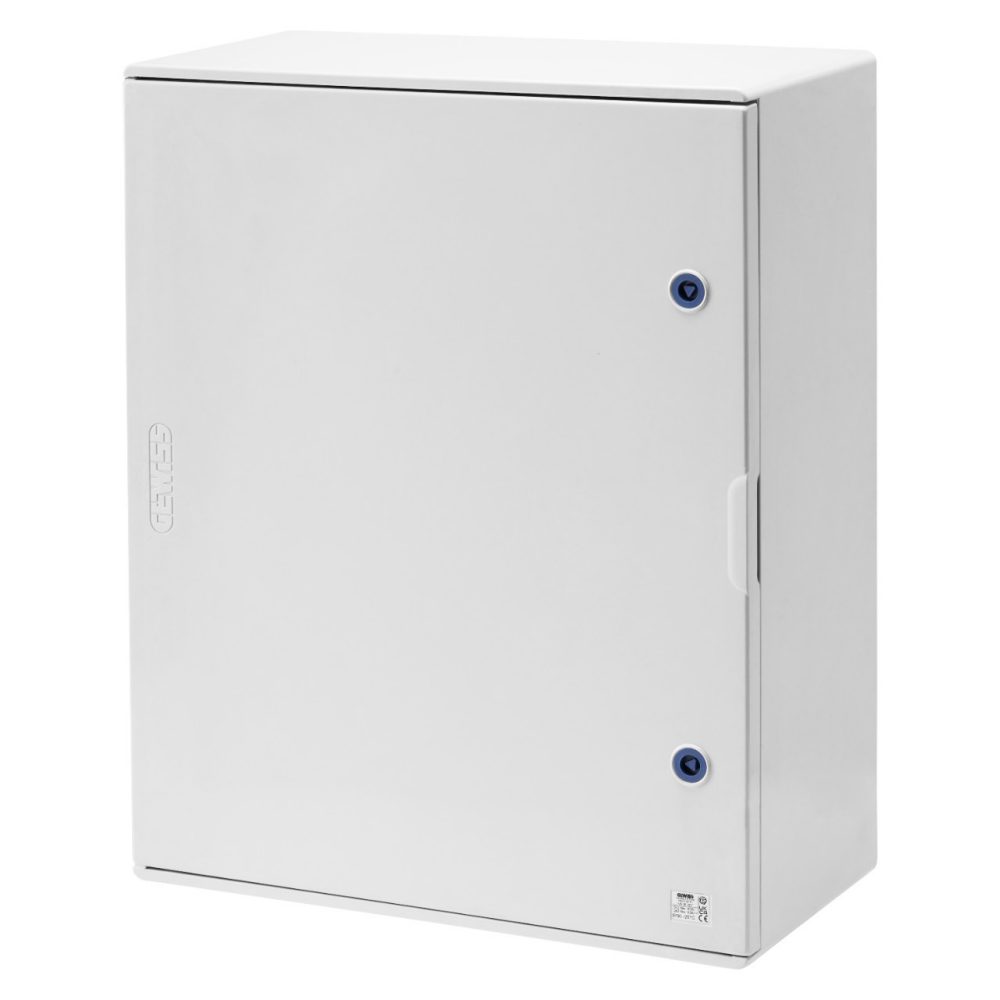

  2. GEWISS GW46006F, Carcasă din poliester cu ușă simplă prevăzută cu încuietoare, 585x800x300, IP66, Grigio RAL 7035
GEWISS GW46006F, Carcasă din poliester cu ușă simplă prevăzută cu încuietoare, 585x800x300, IP66, Grigio RAL 7035

GEWISS GW46006F, Carcasă din poliester cu ușă simplă prevăzută cu încuietoare, 585x800x300, IP66, Grigio RAL 7035

Panouri electrice
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15722/image_1920?unique=ab4a244
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identification
Brand GEWISS
Cod Producator GW46006F
Gama produs 68 ACS Range-ACS distribution board system for construction sites
General Specifications
Material Polyester reinforced with fibreglass
Culoare Grey RAL 7035
Culoarea ușii N/A
Lungime 585.0 mm
Înăltime 800.0 mm
Adăncime 300.0 mm
Evaluare IP IP66
Clasa de izolație II
Rezistență mecanică IK10
Nr. Module 140 (28x5)
Blocuri terminale max. instalabile N/A
Test de încercare cu fir incandescent 960.0 °C
Temperatura de funcționare -25 >< +60 °C
Termo-presiune cu bilă 200.0 °C
Standarde EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

General Description & Application


68 ACS range ACS switchboard systems for construction sites - The 68 ASC range consists of an extensive selection of equipped switchboards certified in accordance with the EN 61439-4 standard and capable of meeting all electrification requirements, from the smallest construction sites to the biggest ones. Switchboards are available in numerous configurations, which differ in terms of the number and type of sockets, protected by MCB or fuse holder. A wide selection of empty or equipped versions is available, which can be customized according to all the needs of the site and certified with the help of GWENERGYpro software. The range is completed by a range of portable projectors and incandescent lamps.
