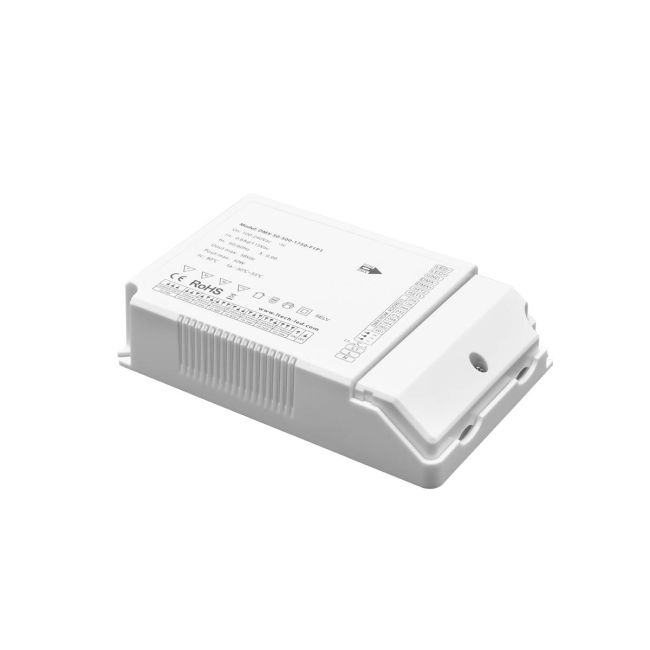

ARELUX ATD50.500-1750DMX, Driver LED de curent constant, reglabil prin DMX și prin apăsare (reglabil)
ARELUX
ARELUX oferă soluții profesionale de control al sistemelor LED, inclusiv controlere, variatoare de intensitate și interfețe inteligente compatibile cu sistemele WiFi, RF, DMX și DALI, potrivite pentru aplicații de iluminat rezidențiale și comerciale.
Read more|
General Description & Application Constant current LED drivers, adjustable, dimmable with DMX and PUSH DIMMING interfaces. Working using the principle of PWM control (Pulse Width Modulation). Product type: Driver Housing/structure: The housing of the driver in ABS plastic. Electrical gear: Input voltage 100-277V AC. For input and output are used terminal blocks with screws, for 0,75 to 2,5 mm² diameter of wires. Setting up the DMX addresses by using the RDM protocol (Remote Device Protocol). Dimming range between 0 and 100%. Wide range of working currents (working powers), between 500 and 1750 mA, sequentially selectable via a DIP switch. By connecting a resistor to the ISET port it is possible to select the working currents more acurately. Short circuit and overload protection, auto-recovery after the malfunctioning is fixed. Overtemperature protection. Open circuit protection. |
