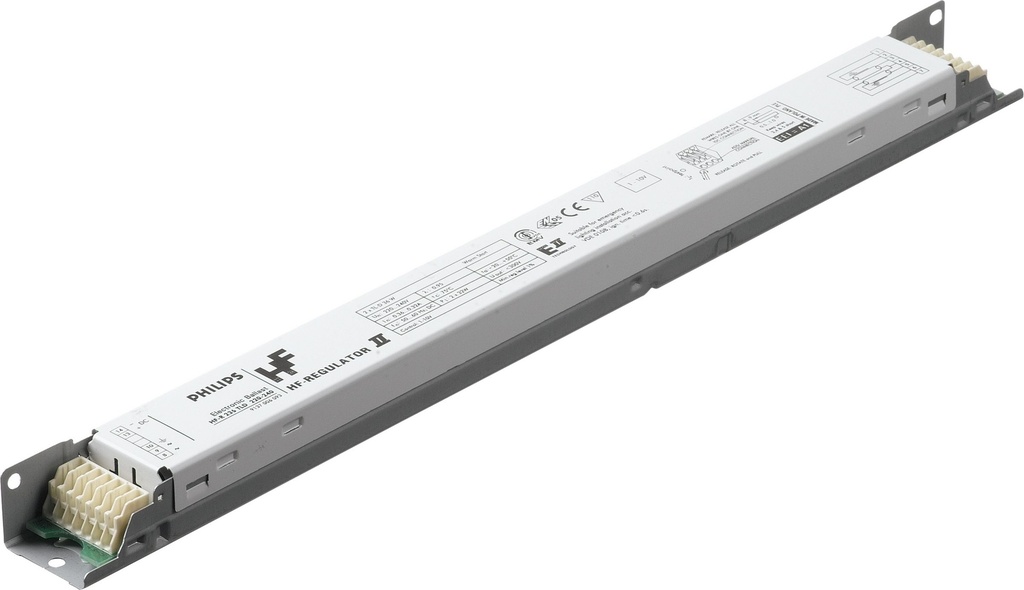

PHILIPS 913700609466, HF-R 158 TL-D EII 220-240V 50/60Hz

General Description & Application

Flat, lightweight high-frequency electronic regulating ballast, using 1-10V protocol for TL-D fluorescent lamps

Benefits:

• The lamp power can be dimmed from 1 to 100% via the Analog control input (in accordance with the 1-10 V industry standard)
• Compliant with European and Asian norms and suitable for emergency lighting systems
• HF operation improves light quality, lamp lifetime
• Combined with controls, additional energy savings can be achieved

Features:

• Programmed start: flicker-free ignition < 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life
• Smart power ensures constant light, independent of mains fluctuations.
• Up to 60% reduction in energy consumption by using automatic lighting control systems
• Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement

Applications:

• 1-10V installations with daylight linking and/or movement detection (for energy savings)
• 1-10V installations with remote control systems (combining energy savings with comfort)
• Installations with emergency back-up, according to IEC 60598-2-22
