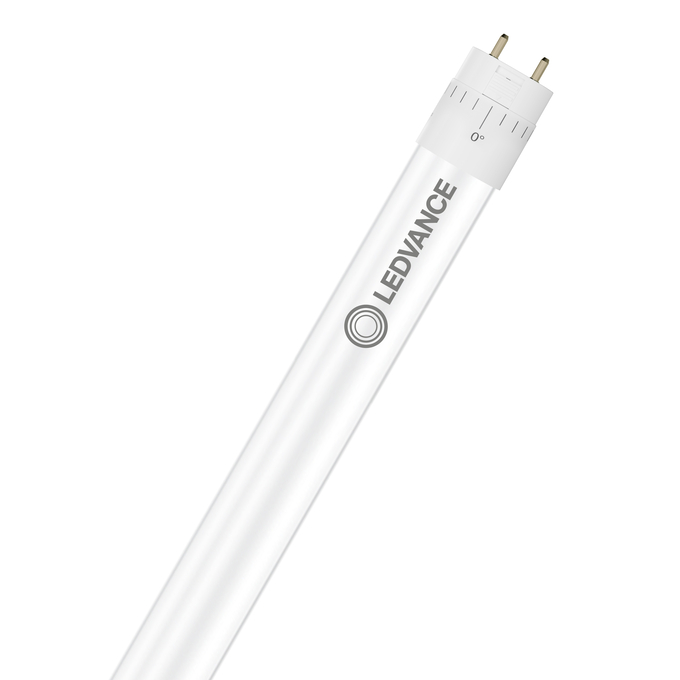

  2. LEDVANCE 4099854573095, LED TUBE T8 EM 6 kV ROTATABLE 1200 mm 14W 830
LEDVANCE 4099854573095, LED TUBE T8 EM 6 kV ROTATABLE 1200 mm 14W 830

LEDVANCE 4099854573095, LED TUBE T8 EM 6 kV ROTATABLE 1200 mm 14W 830

Tuburi
LEDVANCE

LEDVANCE is one of the world’s leading companies in the lighting industry and is expanding into the renewable energy solution business. To reflect our broad range of products and solutions, we offer a variety of brands under our LEDVANCE corporate umbrella. Under the LEDVANCE product brand, we sell an extensive line of products for residential, commercial and industrial applications.

Read more
https://www.polytrade.global/web/image/product.template/37776/image_1920?unique=84c766e
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identification
Brand LEDVANCE
Manufacturer Code 4099854573095
General Specifications
Destination Indoor
Color Temperature 3000 K
Luminous Flux 2300 lm
Socket Type G13
Color of Light Warm White
Lamp Type LED
IP Rating IP20
Rated Current 64 mA
Rated Input Voltage 220-240 V
Rated Max. Power 14 W
Length 1212 mm
Diameter 26 mm
Weight 191.0 g

General Description & Application

Product benefits
  • Light right where it is needed thanks to rotatable endcaps
  • Suitable for use in damp proof luminaires with sealing sleeves thanks to maximum lamp diameter of 26 mm
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 62 % (compared to T8 fluorescent lamp)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Rail stations, overground and underground
  • Illumination of production areas
  • Traffic zones and corridors
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • High surge protection: up to 6 kV (L-N)
  • LED tube can be rotated by up to 90° to each side thanks to rotatable endcaps
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • ENEC 10 VDE mark
  • For especially uniform illumination
  • Lifetime up to 100,000 h
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
  • For current information see www.ledvance.com/ledtube
