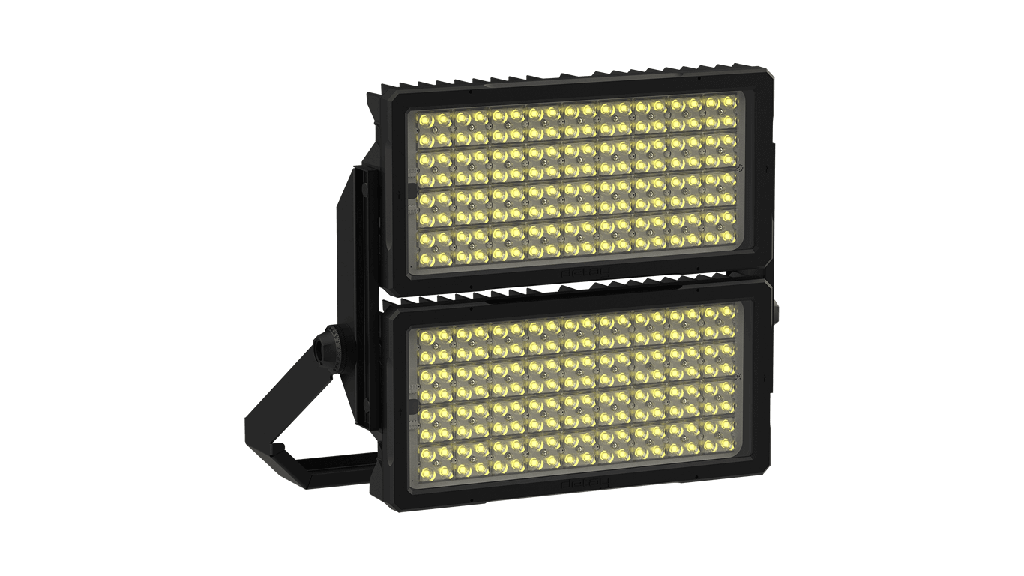

ELBA 30661147, MAXLUMEN 1000 153000LM 1000W 757 60⁰

Category: Iluminat sportiv

ELBA

ELBA este unul dintre cei mai importanți producători de echipamente de iluminat din România, cu o experiență de peste 100 de ani în domeniu. Compania oferă o gamă variată de soluții de iluminat pentru aplicații industriale, comerciale, stradale și speciale, inclusiv pentru medii cu risc de explozie (ATEX).

Această combinație nu există.

General Description & Application

MAXLUMEN provides powerful and long-lasting lighting for football stadiums, factories and large outdoor spaces.

Combining high-performance LED technology with a modern design, MAXLUMEN is the ideal choice for outdoor floodlighting projects, being available in different power and size variants.

Strong and uniform lighting
Weatherproof
Modern design and high-performance optics

Usage

Football fields
Parking lots
Parks
Gyms

Advantages

Uniform and efficient lighting
Flexible mounting
High durability
Resistance to difficult weather conditions

Technical Data

Light source: LED
Color temperature: 5700K
CRI: ≥70
Light distribution: Symmetrical
Protection degree: IP66
Impact resistance: IK08
Warranty: 5 years

Mechanical Features

Operating temperature: -20°C … +50°C
Housing: Die-cast aluminum
Diffuser: Tempered glass
Lens: PMMA
Color: Black (RAL 9005)

Custom Options

Color temperature: 2200K – 6500K
CRI ≥70 / ≥80
Asymmetrical distribution available

Standards

SR EN IEC 60598-1
SR EN 60598-2-5
EMC Directive
Low Voltage Directive
RoHS Directive
WEEE Directive

The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.

Preview TDS

Download TDS

Identificare
Brand	ELBA
Cod Producător	30661147
Specificații Generale
Destinaţie	Spații exterioare: terenuri de fotbal, parcări, parcuri, săli de sport
Metoda de Montare	Proiectoare montate pe suprafață
Tipul de Lampă	Modul LED
Puterea Luminii	de la 100 la 2000
Protecție la Supratensiune	10 kV
Clasificare IP	IP66
Tensiune Nominală	230 V
Putere Maximă Nominală	1000 W
Rezistență Mecanică	IK08
Clasa de Protecție	I

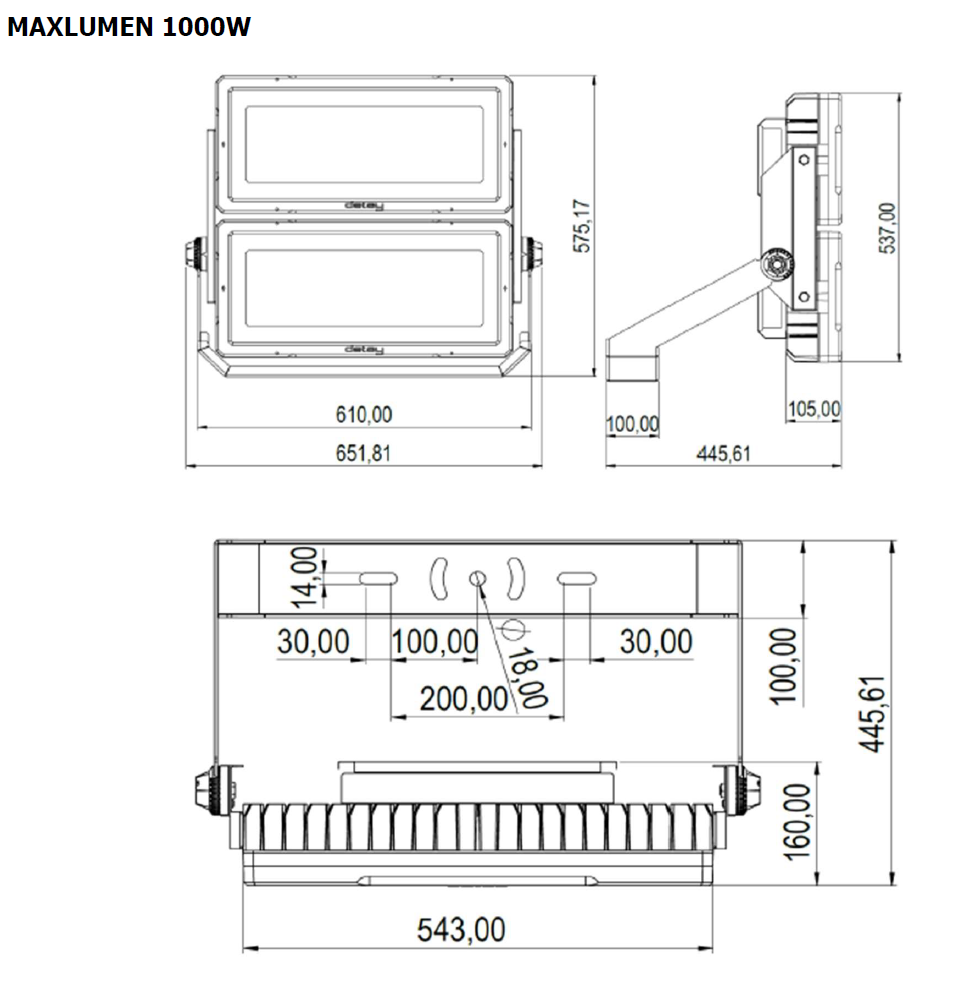

Greutate	25.0 Kg
Temperatura Ambientală	-20 >< +50 °C
Lungime	105 mm
Înălţime	575.0 mm
Lăţime	651.0 mm
