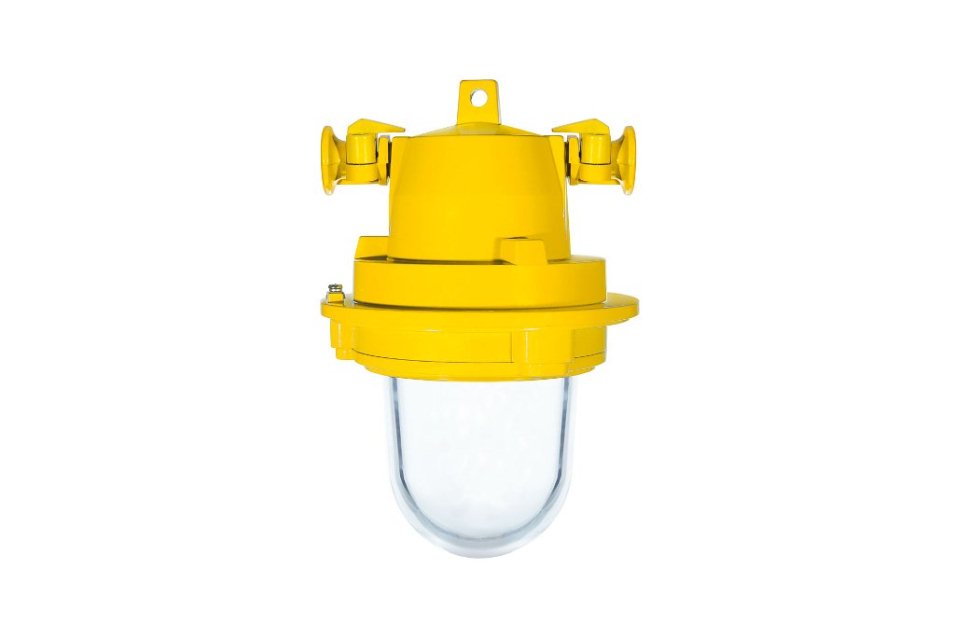

ELBA 32321160, AV-02C LED 19.1W 4000K II 2G Ex db eb IIC T6 Gb fără CAEX

Iluminat ANTIEX
ELBA

ELBA este unul dintre cei mai importanți producători de echipamente de iluminat din România, cu o experiență de peste 100 de ani în domeniu. Compania oferă o gamă variată de soluții de iluminat pentru aplicații industriale, comerciale, stradale și speciale, inclusiv pentru medii cu risc de explozie (ATEX).

Read more
https://www.polytrade.global/web/image/product.template/34365/image_1920?unique=cfbb071
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identificare
Brand ELBA
Cod Producător 32321160
Specificații Generale
Destinaţie Exterior
Tip Balast electronic, Produse ecologice
Metoda de Montare Suspendate
Tipul de Lampă Modul LED
Puterea Luminii de la 20 la 100
Număr de Lămpi 1
Clasificare IP IP54
Tensiune Nominală 230 Vdc
Putere Maximă Nominală 19.1 W
Curent Nominal 810 mA
Clasa de Protecție I
Greutate 4.3 Kg
Temperatura Ambientală -20 >< +40 °C
Lungime 210 mm
Înălţime 317.0 mm
Lăţime 202.0 mm

General Description & Application

The AV-02C luminaire is intended for lighting in explosion-hazardous areas of group II, zone 1 and 2.

  • The AV-02C LED 230V product consists only of the body with the light source.
  • Housing and globe frame die-cast from painted Al alloys.
  • Protective globe made of heat-resistant glass.
  • Cable entries with sealing for diameters of Φ11 – Φ14 mm.
Usage
  • Lighting in areas with explosion hazard (group II, zone 1 and 2).
  • Suspended or stationary mounting.
  • Individual or series connection directly to the mains (230V).
Advantages
  • Robust die-cast aluminium construction.
  • Certified explosion-proof protection.
  • Heat-resistant glass for high protection.
  • Compatible with direct mains connection.
Technical Data
  • Number of terminals: 2 + 2 PE (direct supply).
  • Maximum conductor cross-section: 2.5 mm².
  • Protection: II 2G Ex db eb IIC T6 Gb.
  • Explosion-proof encapsulation (d) and increased safety (e).
  • Standards: SR EN 60598-1, SR EN IEC 60079-0:2018, SR EN 60079-1:2015, SR EN 60079-7:2016+A1:2018.
  • Certificate: INSEMEX-OEC.ATEX.22.302X +A1/2023.
Light Source
  • COB LED SAMSUNG, CRI ≥70.
  • Color temperature: 5000K / 6500K.
  • Lifetime (TM-21):
  • L70B50: 182,000 h
  • L70B10: 103,000 h
  • L80B50: 113,000 h
  • L80B10: 65,000 h
  • L90B50: 53,000 h
  • L90B10: 31,000 h

DOB (Driver on Board) Vossloh-Schwabe, CRI ≥80, 4000K, extended lifespan.

Equivalent system with HME 125W mercury lamps.

Color

Yellow
