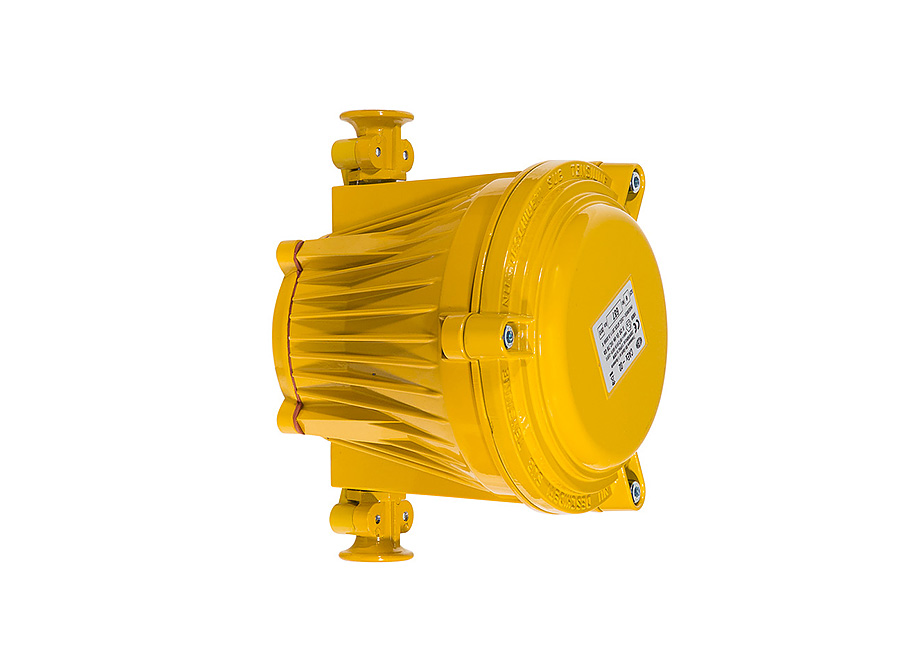

ELBA 32321154, CAEx-02 LED 44.5W

Iluminat ANTIEX
ELBA

ELBA este unul dintre cei mai importanți producători de echipamente de iluminat din România, cu o experiență de peste 100 de ani în domeniu. Compania oferă o gamă variată de soluții de iluminat pentru aplicații industriale, comerciale, stradale și speciale, inclusiv pentru medii cu risc de explozie (ATEX).

Read more
https://www.polytrade.global/web/image/product.template/34366/image_1920?unique=8123e96
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identificare
Brand ELBA
Cod Producător 32321154
Specificații Generale
Destinaţie Exterior
Tip Driver electronic, Produse ecologice
Metoda de Montare Suspendate
Tipul de Lampă Modul LED
Puterea Luminii de la 10 la 100
Număr de Lămpi 1, Modul LED
Clasificare IP IP54
Tensiune Nominală 230 Vdc
Putere Maximă Nominală 44.4 W
Curent Nominal 810 mA
Clasa de Protecție I
Greutate 5.0 Kg
Temperatura Ambientală -20 >< +40 °C
Lungime 233 mm
Înălţime 195.0 mm
Lăţime 274.0 mm

General Description & Application

CAEX-02 LED is the power supply for the AV-02C LED II 2G Ex db eb IIC T6 Gb luminaire, intended for lighting in explosion-hazardous areas of group II, zone 1 and 2.

  • The AV-02C LED luminaire is powered by the CAEx-02 LED control box.
  • Painted die-cast aluminum alloy housing.
  • Protective globe made of heat-resistant glass.
  • Cable entries with sealing for diameters of Φ11 – Φ14 mm.
Usage
  • Power supply for AV-02C LED luminaires.
  • Use in explosion-hazardous areas (group II, zone 1 and 2).
Advantages
  • Robust aluminum construction.
  • Certified explosion-proof protection.
  • High operational safety.
  • Compatibility with AV-02C LED system.
Technical Data
  • Number of terminals: 3 + 2 PE and 4 in compartment (F, N, L, PE).
  • Maximum conductor cross-section: 2.5 mm².
  • Protection: II 2G Ex db eb IIC T6 Gb.
  • Explosion-proof encapsulation (d) and increased safety (e).
  • Standards: SR EN 60598-1, SR EN IEC 60079-0:2018, SR EN 60079-1:2015, SR EN 60079-7:2016+A1:2018.
  • AV-02C LED certification: INSEMEX-OEC.ATEX.21.0302X.
  • CAEX-02 LED certification: INSEMEX-OEC.ATEX.21.0301X.
Power Supply
  • LED driver according to standards: IEC 61347-1 / IEC 61347-2-13 / IEC 62384.
  • EMC Compliant: CISPR 15, IEC 61000-3-2, IEC 61000-3-3, IEC 61547.
Color

Yellow
