  2. ELBA 23419275, CFN 03 LED 6000LM 48W 1.2M IP66 840 LN

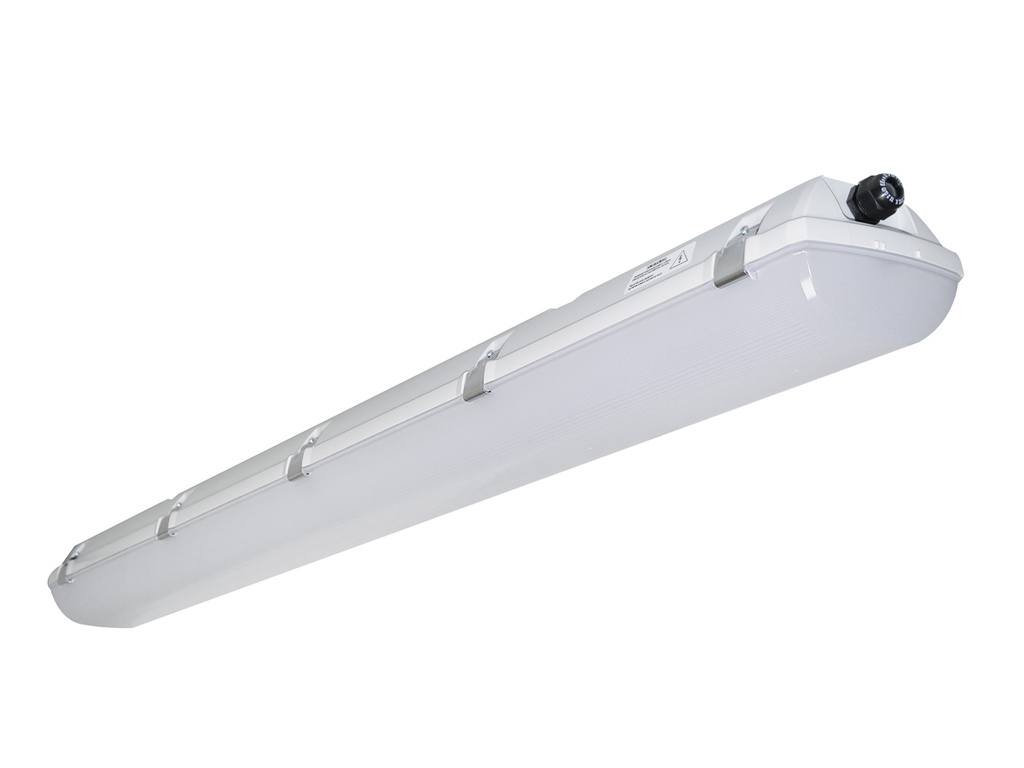

ELBA 23419275, CFN 03 LED 6000LM 48W 1.2M IP66 840 LN

Iluminat ANTIEX
ELBA

ELBA este unul dintre cei mai importanți producători de echipamente de iluminat din România, cu o experiență de peste 100 de ani în domeniu. Compania oferă o gamă variată de soluții de iluminat pentru aplicații industriale, comerciale, stradale și speciale, inclusiv pentru medii cu risc de explozie (ATEX).

Read more
https://www.polytrade.global/web/image/product.template/34372/image_1920?unique=8123e96
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identificare
Brand ELBA
Cod Producător 23419275
Specificații Generale
Destinaţie Exterior
Tip Led driver
Metoda de Montare Suspendate
Tipul de Lampă Modul LED
Puterea Luminii de la 20 la 100
Număr de Lămpi Modul LED
Clasificare IP IP66
Tensiune Nominală 230 Vdc
Putere Maximă Nominală 47.6 W
Curent Nominal -
Clasa de Protecție I
Greutate 3.5 Kg
Temperatura Ambientală -20 >< +40 °C
Lungime 1272 mm
Înălţime 100.0 mm
Lăţime 145.0 mm

General Description & Application

The AV-02C luminaire is intended for lighting in explosion-hazardous areas of group II, zone 1 and 2.

  • The AV-02C LED product consists of a luminaire with a light source and a CAEx-02 LED control box (to be ordered separately) – which supplies the light source.
  • Housing and globe frame die-cast from painted Al alloys.
  • Lamp protective globe made of heat-resistant glass.
  • Cable entries with rubber gasket sealing for diameters of Φ11 – Φ14 mm.
Usage
  • Lighting in explosion-hazardous areas (group II, zone 1 and 2).
  • Suspended or stationary mounting.
  • Individual connection via CAEx-02 LED box.
Advantages
  • Robust die-cast aluminum construction.
  • Certified explosion-proof protection.
  • Extended LED source life.
  • Glass heat-resistant for high protection.
Technical Data
  • Number of terminals: 3 + 2 PE and 4 in the CAEx-02 LED box (F, N, L, PE).
  • Maximum conductor cross-section: 2.5 mm².
  • Protection: II 2G Ex db eb IIC T6 Gb.
  • Explosion-proof encapsulation (d) and increased safety (e).
  • Standards: SR EN 60598-1, SR EN IEC 60079-0:2018, SR EN 60079-1:2015, SR EN 60079-7:2016+A1:2018.
  • AV-02C LED Certification: INSEMEX-OEC.ATEX.22.0302X.
  • CAEx-02 LED Certification: INSEMEX-OEC.ATEX.22.0301X.
Light Source
  • COB LED SAMSUNG, CRI ≥70.
  • Color temperature: 5000K / 6500K.
  • Lifetime (TM-21, 74°C):
  • L70B50: 182,000 h
  • L70B10: 103,000 h
  • L80B50: 113,000 h
  • L80B10: 65,000 h
  • L90B50: 53,000 h
  • L90B10: 31,000 h
Color

Yellow
