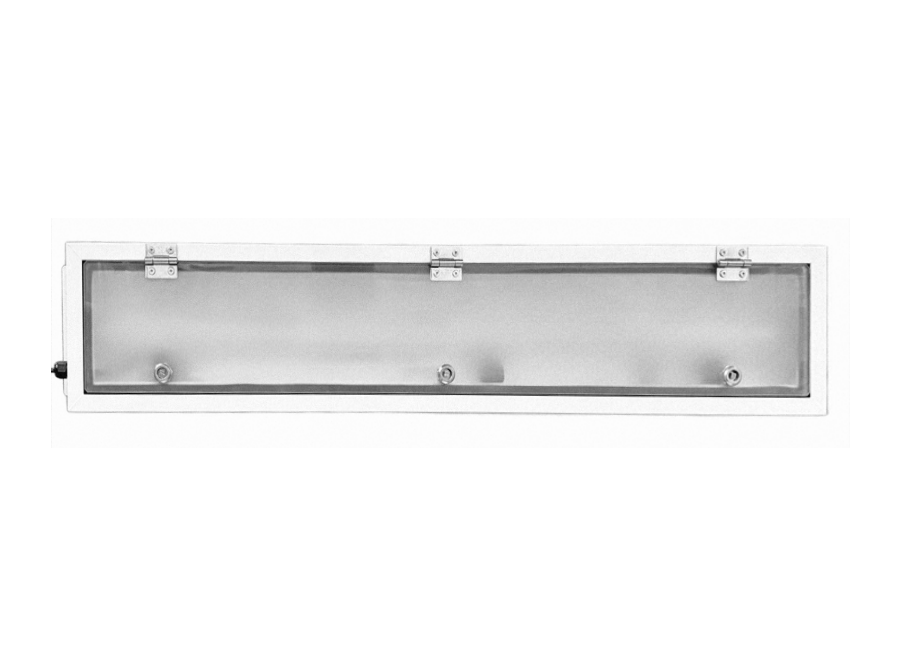

ELBA 23419058, CFSM 04 LED EX 5700K 3H

Iluminat ANTIEX
ELBA

ELBA este unul dintre cei mai importanți producători de echipamente de iluminat din România, cu o experiență de peste 100 de ani în domeniu. Compania oferă o gamă variată de soluții de iluminat pentru aplicații industriale, comerciale, stradale și speciale, inclusiv pentru medii cu risc de explozie (ATEX).

Read more
https://www.polytrade.global/web/image/product.template/34377/image_1920?unique=8123e96
You have already submitted a query for this product today.

Această combinație nu există.

Contactați-ne
Preview TDS
Download TDS
Identificare
Brand ELBA
Cod Producător 23419058
Specificații Generale
Destinaţie Exterior
Tip Led driver
Metoda de Montare Aparente, Aparente montate pe perete
Tipul de Lampă Modul LED
Puterea Luminii de la 20 la 100
Număr de Lămpi Modul LED
Clasificare IP IP65
Tensiune Nominală 230 Vdc
Putere Maximă Nominală 55 W
Curent Nominal -
Clasa de Protecție I
Greutate 11.0 Kg
Temperatura Ambientală -20 >< +40 °C
Lungime 1270 mm
Înălţime 140.0 mm
Lăţime 240.0 mm

General Description & Application

The CFN-03 LED luminaire is intended for lighting in environments with combustible dust, in areas with conductive dust (zone 22), at ambient temperatures between +5°C and +45°C.

  • UV-stable polycarbonate frame, resistant to impact, dust, moisture and water jets.
  • Transparent polycarbonate diffuser with prismatic structure for uniform light distribution.
  • Steel sheet reflector.
  • Robust fastening system with stainless steel and polyamide clips and fasteners.
  • PG13 ATEX cable gland, cable diameter Φ7–Φ13 mm.
Usage
  • Lighting in environments with conductive dust (area 22).
  • Use in wet and industrial spaces.
  • Operation at ambient temperatures +5°C … +45°C.
Advantages
  • High resistance to impact and harsh conditions.
  • Protection against dust and moisture.
  • Efficient light distribution.
  • Accessories included for quick installation.
Technical Data
  • Maximum conductor cross-section: 2.5 mm².
  • 4-pole connector + grounding.
  • Protection: II 3D Ex tc IIIC T70°C Dc.
  • Dust ignition protection through the housing.
  • Standards: SR EN 60079-0, SR EN 60079-31, SR EN 60598-1.
  • Electronic driver included.
Light Source
  • LED modules, 4000K, CRI 80.
  • Optional: 3000K (warm white) / 5000K (cool white), CRI 80 / 90.
  • Extended lifespan at Ta = 25°C.
  • Equivalent to T8 Ø26 mm fluorescent lamps.
Accessories
  • ATEX inserter.
  • Stainless steel screws and clamps for surface mounting.
  • Stainless steel hooks for suspended mounting.
Compliance
  • RoHS Directive.
  • WEEE Directive.
  • Directive 2014/34/EU (ATEX).
  • HG 245/2016.
Color

Grey
