SikaSwell A, Hydrophilic Swellable Joint Sealing Profiles, Exterior
SIKA
Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.
Read more| Hydrophilic swellable joint sealing profiles SikaSwell® A is a rectangular acrylic sealing profile. It swells in contact with water to seal all types of construction joints and penetrations in concrete structures.
| ||||||||||||||
UsageJoint sealing:
Advantages

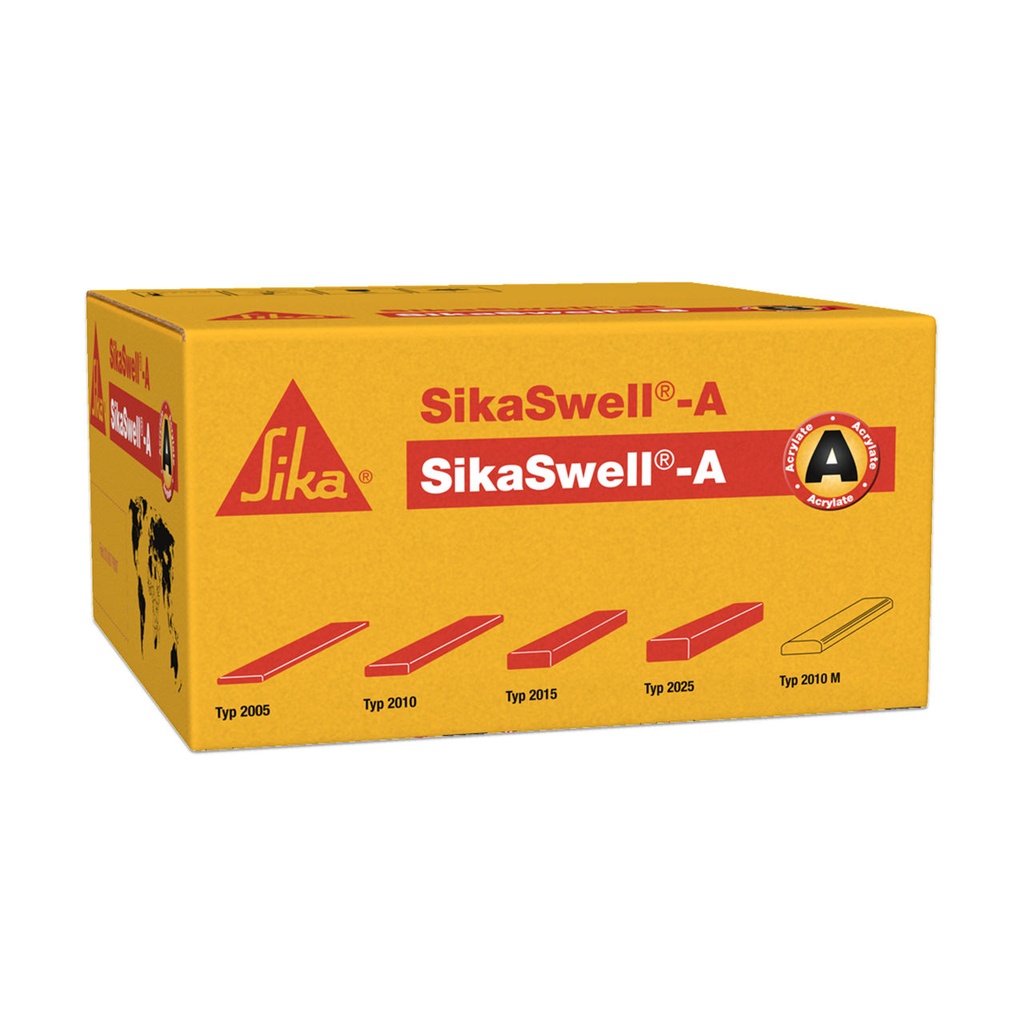

PackagingSingle rolls packed in vacuum foil. Multiple single rolls packed in cardboard boxes. Refer to current price list for packaging variations. ColourProfile after swelling (left) and before swelling (right)
| ||||||||||||||
Technical Information Shore A Hardness (10 ± 5) (DIN 53505) Change of volume Time Demineralised water 1 day ~50 % 7 days ~130 % 30 days ~150 % Note: Swelling properties in saline water will be reduced and delayed. Use SikaSwell® A Maritim version. Note: In a totally dry state the Product shrinks to its original dimensions. The product then expands again upon further contact with water. Swelling pressure The pressure developed by the material depends on the stiffness of the surrounding concrete structure, which is influenced by the concrete quality, voids, gaps and other weaknesses. Note: In an ideal concrete structure the material can develop a swelling pressure up to > 10 bar. Service Temperature Maximum +50 °C Minimum -20 °C | ||||||||||||||
Application Information Substrate Moisture Content Dry or matt damp. Do not apply in construction joints with existing standing water. Ambient Air Temperature
Substrate Temperature
|
The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.
Contact our sales team for other specifications or custom made products.| Hydrophilic swellable joint sealing profiles SikaSwell® A is a rectangular acrylic sealing profile. It swells in contact with water to seal all types of construction joints and penetrations in concrete structures.
| ||||||||||||||
UsageJoint sealing:
Advantages
PackagingSingle rolls packed in vacuum foil. Multiple single rolls packed in cardboard boxes. Refer to current price list for packaging variations. ColourProfile after swelling (left) and before swelling (right)
| ||||||||||||||
Technical Information Shore A Hardness (10 ± 5) (DIN 53505) Change of volume Time Demineralised water 1 day ~50 % 7 days ~130 % 30 days ~150 % Note: Swelling properties in saline water will be reduced and delayed. Use SikaSwell® A Maritim version. Note: In a totally dry state the Product shrinks to its original dimensions. The product then expands again upon further contact with water. Swelling pressure The pressure developed by the material depends on the stiffness of the surrounding concrete structure, which is influenced by the concrete quality, voids, gaps and other weaknesses. Note: In an ideal concrete structure the material can develop a swelling pressure up to > 10 bar. Service Temperature Maximum +50 °C Minimum -20 °C | ||||||||||||||
Application Information Substrate Moisture Content Dry or matt damp. Do not apply in construction joints with existing standing water. Ambient Air Temperature
Substrate Temperature
|
