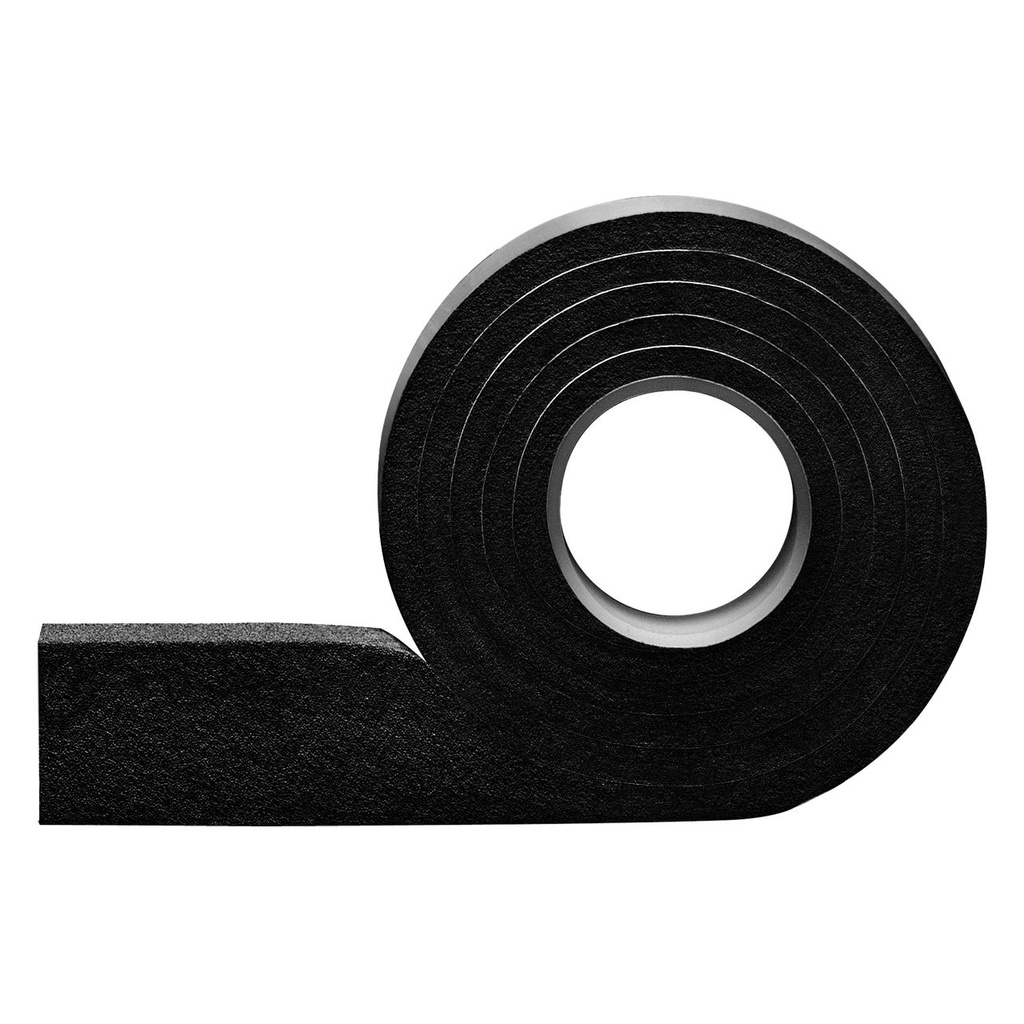

Sika Expansion Tape-600, Elastic impregnated self-adhesive expansion tape, Black

Category: Benzi adezive

SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

Packing
- 10 mm x 13 m
- 12 mm x 12 m
- 15 mm x 8 m
- 15 mm x 5.6 m
- 20 mm x 4.3 m
- 20 mm x 3.3 m
- 40 mm x 2.6 m

Această combinație nu există.

Sika® Expansion Tape-600 is a self-adhering, elastic polymer, dispersion impregnated, expansion tape.

Open vapour diffusion structure.
Elastic.
Sound and thermal insulation.
Over-paintable with most dispersion paints.
Driving rain tight (600 Pa).
Very low emissions.

Usage

Sika® Expansion Tape-600 is designed for joint sealing between window and/or door frames and adjacent building components and for other construction sealing applications. Sika® Expansion Tape-600 fulfills the requirements of the energy conservation regulations (EnEV) and the RAL instructions. Sika® Expansion Tape-600 seals against wind, dust, spray water and driving rain.

Advantages

Open vapour diffusion structure.
Elastic.
Sound and thermal insulation.
Over-paintable with most dispersion paints.
Driving rain tight (600 Pa).
Very low emissions.

Packaging

Type of tape*	Joint width [mm]	m per roll	Rolls per box	m per box
10 / 1−4	1−4	13.0	30	390
12 / 2−6	2−6	12.0	25	300
15 / 4−9	4−9	8.0	20	160
15 / 5−12	5−12	5.6	20	112
20 / 6−15	6−15	4.3	15	64.5
20 / 9−20	9−20	3.3	15	49.5
40 / 24−42	24−42	2.6	7	18.2

* 1st figure = width of the tape.

2nd figure = width of the joint (consider future joint movement).

e.g. 20 / 9−20 = tape 20 mm wide for joints 9−20 mm wide.

Colour

Black, pre-compressed rolls.

Technical Information

Thermal Conductivity

0.052 W/m*K approx. (λ-value).

(ISO 12667)

Joint Permeability to Water Vapour

≤ 1.0 m³ / (h*m*(daPa)^2/3) ift Rosenheim external control.

(EN 1026)

Diffusion Resistance to Water Vapour

100 approx. (µ-value).

(ISO 12572)

Equivalent Air Layer Thickness for Water Vapour

0.5 m approx. (at 50 mm width).

(ISO 12572)

Light and Thermal Resistance

Requirements fulfilled.

(DIN 18542)

The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.

Contact our sales team for other specifications or custom made products.

Preview TDS

Download TDS

General Specifications
Lățime	10.0 mm
Lungime	13.0 m
Utilizare	Sika Expansion Tape-600 is designed for joint sealing between window and/or door frames and adjacent building components and for other construction sealing applications. Sika Expansion Tape-600 fulfills the requirements of the energy conservation regulations (EnEV) and the RAL instructions. Sika Expansion Tape-600 seals against wind, dust, spray water and driving rain.
Culoare	Black
Bază chimică	Impregnated polyurethane soft foam
Condiții de depozitare	Sika Expansion Tape-600 shall be stored in dry conditions, protected from direct sunlight and at temperatures between +5 °C and +25 °C.
Temperatură de lucru	N/A °C

Sika® Expansion Tape-600 is a self-adhering, elastic polymer, dispersion impregnated, expansion tape.

Open vapour diffusion structure.
Elastic.
Sound and thermal insulation.
Over-paintable with most dispersion paints.
Driving rain tight (600 Pa).
Very low emissions.

Usage

Advantages

Open vapour diffusion structure.
Elastic.
Sound and thermal insulation.
Over-paintable with most dispersion paints.
Driving rain tight (600 Pa).
Very low emissions.

Packaging

Type of tape*	Joint width [mm]	m per roll	Rolls per box	m per box
10 / 1−4	1−4	13.0	30	390
12 / 2−6	2−6	12.0	25	300
15 / 4−9	4−9	8.0	20	160
15 / 5−12	5−12	5.6	20	112
20 / 6−15	6−15	4.3	15	64.5
20 / 9−20	9−20	3.3	15	49.5
40 / 24−42	24−42	2.6	7	18.2

* 1st figure = width of the tape.

2nd figure = width of the joint (consider future joint movement).

e.g. 20 / 9−20 = tape 20 mm wide for joints 9−20 mm wide.

Colour

Black, pre-compressed rolls.

Technical Information

Thermal Conductivity

0.052 W/m*K approx. (λ-value).

(ISO 12667)

Joint Permeability to Water Vapour

≤ 1.0 m³ / (h*m*(daPa)^2/3) ift Rosenheim external control.

(EN 1026)

Diffusion Resistance to Water Vapour

100 approx. (µ-value).

(ISO 12572)

Equivalent Air Layer Thickness for Water Vapour

0.5 m approx. (at 50 mm width).

(ISO 12572)

Light and Thermal Resistance

Requirements fulfilled.

(DIN 18542)
