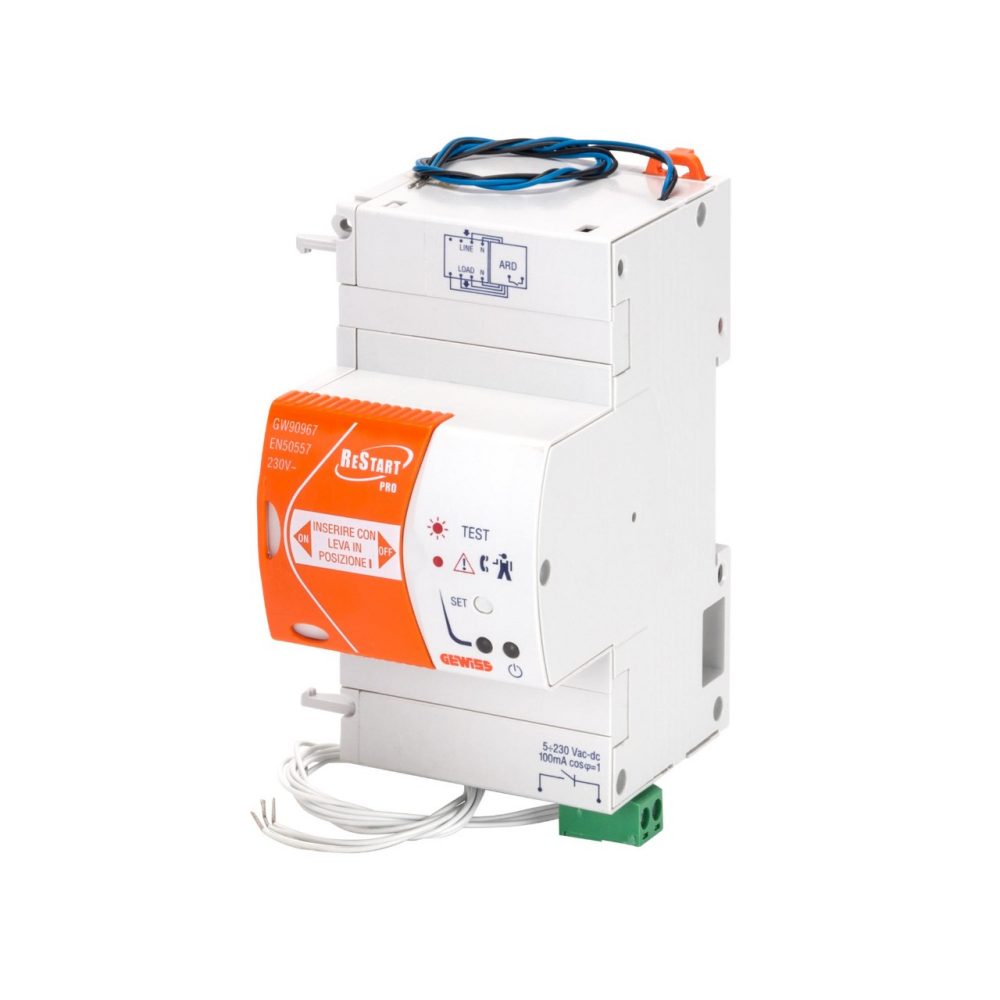

GEWISS GW90967, Restart Rd Pro to Be Coupled with Rccb's Idp, 2 Poles Up to 80A and 4p Up to 63A, IDN=0.03A, 230V, 3 Modules EN 50022

GEWISS GW90967, Restart Rd Pro to Be Coupled with Rccb's Idp, 2 Poles Up to 80A and 4p Up to 63A, IDN=0.03A, 230V, 3 Modules EN 50022

Circuit Reclosers
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/10274/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Product Code GW90967
Product Family 90 ReStart Range-Automatic reclosing devices
General Specifications
Rated Voltage AC 230.0 V
Rated frequency 50.0 Hz
Rated current 0.0 A
Rated residual operating current 30.0 mA
Type of residual current protection AC - A - A[IR] - F - B
Number of poles 2P/4P
Standards EN 50557
Maximum operating frequency 30 oper./h
Distribution system TT - TN-S
Mechanical endurance 4000
Insulation voltage (Ui) 500.0 V
Dielectric strength test voltage between pole and earth 2500 Vac for 1 minute
Operating Temperature -25 >< +60 °C
Stocking temperature -40 >< +70 °C
Rated impulse withstand voltage (Uimp) 4.0 kV
No. modules 3
Overvoltage category III
Completeable with GWD0951 Auxiliary contact - GW90992 RS485 BUS Module
Rated non-operating resistance between live parts and earth (Rdo) 8.0 kΩ
Rated operating resistance between live parts and earth (Rd) 16.0 kΩ
Operating modes NO/NC/NO with handle position signalling function
Autotest (automatic RCCB protection test) N/A
Automatic reclosure for untimely tripping Yes
Current operating 0.6mA (min)-100mA cosφ=1 (max)
Earth failure test Yes
Use category AC12
Continuous system monitoring Yes

General Description & Application


Range 90 ReStart Automatic reclosing devices - In the event of a circuit breaker trip, the ReStart devices, after checking the system status, restore the power supply, thus ensuring maximum continuity of service in maximum safety.


Available for both pure residual current circuit-breakers and those with overcurrent protection, the range is characterized by the Autotest function, with periodic and automatic control of the residual current protection without power interruption, and the PRO function with extended system control.
