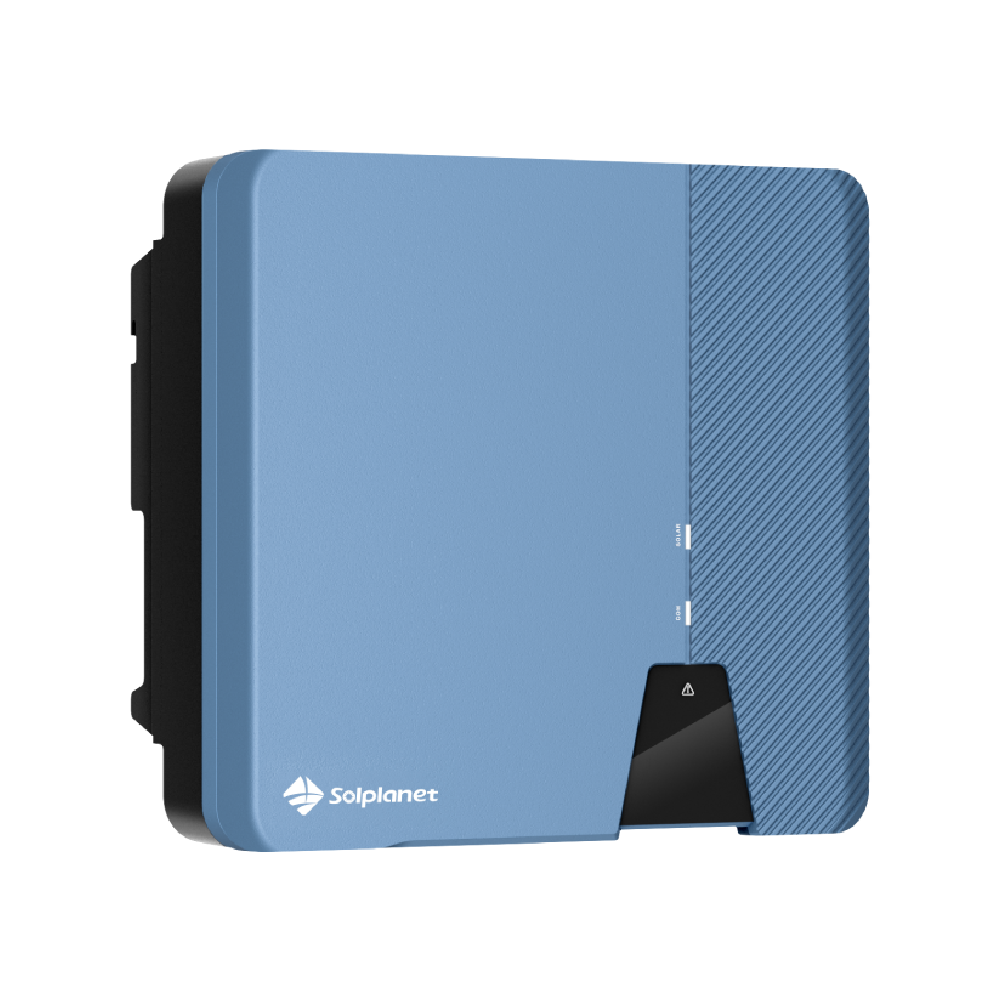

SOLPLANET, ASW 1000-S-G2, 1kW, Single Phase Inverter

Inverters
SOLPLANET

Solplanet manufactures Single-Phase, Three-Phase and Hybrid inverters, intuitive monitoring solutions and smart EV Chargers in compliance with international high-quality standards. Our research and development departments and production plants are growing and innovating constantly, so chances are we can meet your demand, no matter the size of your installation.

Read more
https://www.polytrade.global/web/image/product.template/6768/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand SOLPLANET
Product Code ASW 1000-S-G2
Type Single Phase
General Specifications
Width 368.0 mm
Height 325.0 mm
Depth 145.0 mm
Weight 9.5 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 100.0 %
Topology Non-isolated
IP Rating IP66
Max. Efficiency 97.6 %
Input
Max. Input Voltage 600.0 V
Rated Input Voltage 360.0 V
Max. Input Current 16.0 A
Max.Short Circuit Current 24.0 A
Start Voltage 100.0 V
No. of MPPTS 1.0
Max. number of inputs 1.0
MPPT Operating Voltage Range 60-560 V
Output
Rated Output Power 1000.0 W
Max. AC Apparent Power 1000.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 220/230/240 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 5.0 A
Total Harmonic Distortion ≤3 %
Power Factor 0.8
Protection
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
AC Short Circuit Protection Yes
DC Reverse Connection Yes
DC Surge Arrester N/A
AC Surge Arrester N/A
Insulation Detection N/A
Communication
Display LED
RS485 Yes
USB N/A
Monitoring BUS (MBUS) N/A
WiFi Yes

General Description & Application

Reliability
Solplanet invertors were designed in accordance with international quality and safety standards and is a robust family of extremely reliable solar inverters. The IP66 certification rating also means these inverters will maintain their reliability in a wide range of environmental conditions. From a purely technical angle, the DC reverse polarity protection, AC sensitive residual current monitoring, fuse-free design and built-in surge protection ensure reliable and safe long-term operation.
Powerful
There solar inverters are designed for power. A maximum DC input of 20A and up to 5 MPPTs with wide voltage ranges ensure highly optimised energy performance for bi-facial and large-area PV modules.​ These dynamic solar inverters also allow for up to 150% oversizing of the attached PV array, making them perfect for residential rooftop solar installations that vary greatly in their design, scale, and purpose.
Installation and Monitoring
They are designed to be installed quickly and easily with standard tools and the Phoenix Contact DC connectors make these inverters compatible with a wide range of solar panels. Optional Plug and Play and 4G dongles connect them to the internet and allow up to five to be monitored by Solplanet’s user-friendly mobile application. Users can view real-time solar installation data, configure their inverters, and receive system alerts, right in the palm of their hand.

Standards

Inverters are engineered and tested according to below standards: CE
EN50549
G98/99
VDE-AR-N4105
AS/NZS 4777
C10/C11
VFR 2014 & UTE C15
IEC62109
IEC62116
IEC61727
IEC61683
IEC60068
IEC61000
NB/T 32004
