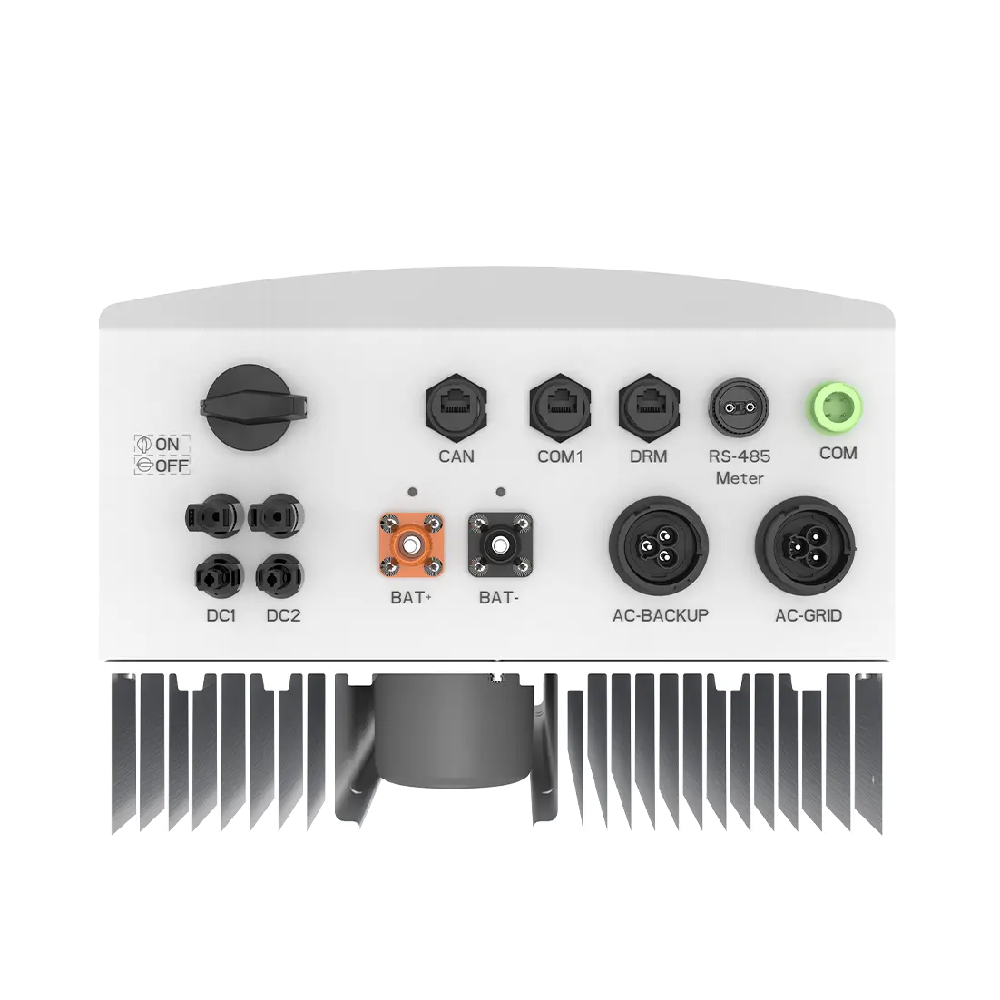

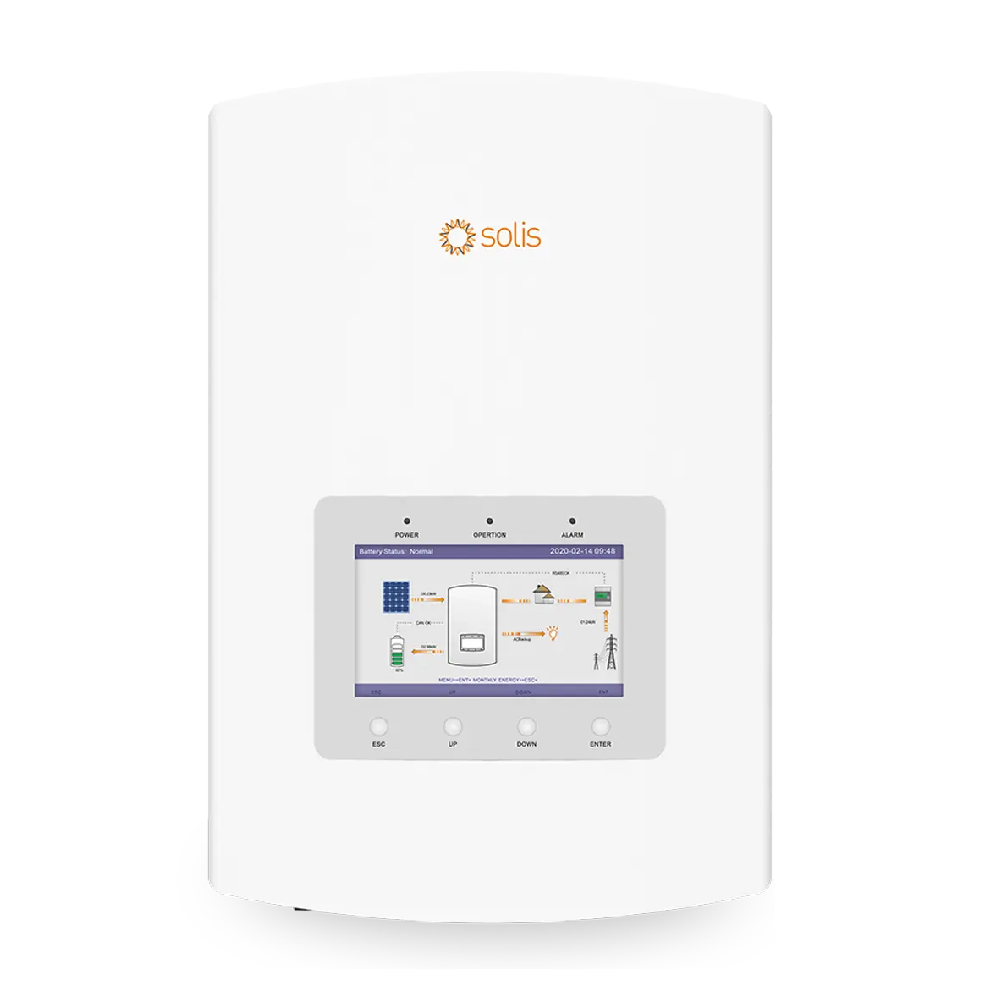

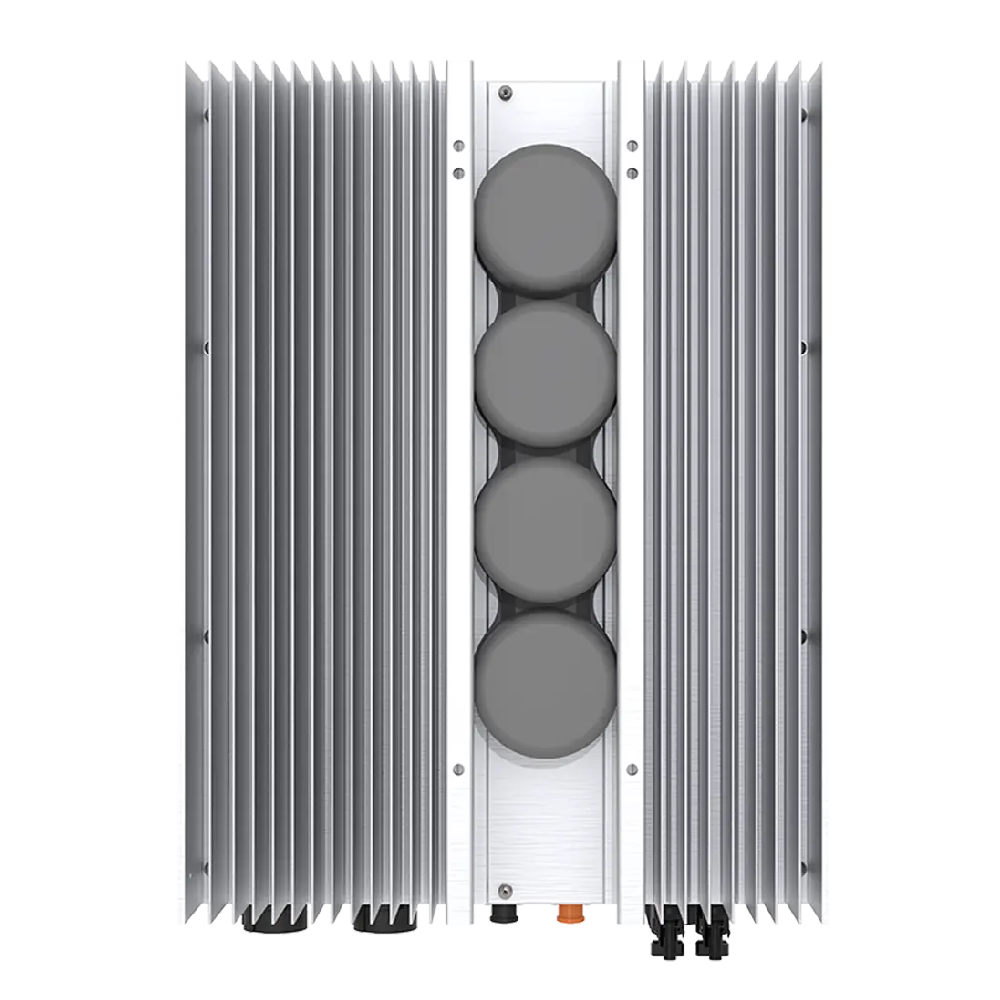

Solis S5-EH1P6K-L, 6kW, Single Phase Hybrid Energy Storage Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16324/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S5-EH1P6K-L
Type Single Phase Hybrid Energy Storage
General Specifications
Width 333.0 mm
Height 505.0 mm
Depth 249.0 mm
Weight 18.0 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology N/A
IP Rating IP65
Max. Efficiency 97.1 %
Input
Max. Input Voltage 600.0 V
Rated Input Voltage 330.0 V
Max. Input Current 15/15 A
Max.Short Circuit Current 22,5/22,5 A
Start Voltage 120.0 V
No. of MPPTS 2.0
Max. number of inputs 2.0
MPPT Operating Voltage Range 90 - 520 V
Output
Rated Output Power 6000.0 W
Max. AC Apparent Power 6600.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 30.0 A
Total Harmonic Distortion <2 %
Power Factor >0,99
Protection
Anti-islanding Protection No
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection No
AC Surge Arrester No
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display 7.0" LCD display
USB No

General Description & Application

S6-EH1P(3-6)K-L-PRO

Key Features:

  • Single Phase Low Voltage Energy Storage Inverter

  • S6-EH1P(3-6)K-L-PRO series energy storage inverter is designed for residential PV energy storage system，Support multiple parallel machines to form a single-phase or three-phase system with maximum power of 36kW. With UPS level switching time, 10s surge power overload and critical loads. Support 135A Charge and discharge capacity, provide higher energy throughput density. A variety of intelligent protection functions make home power supply safe and secure.
