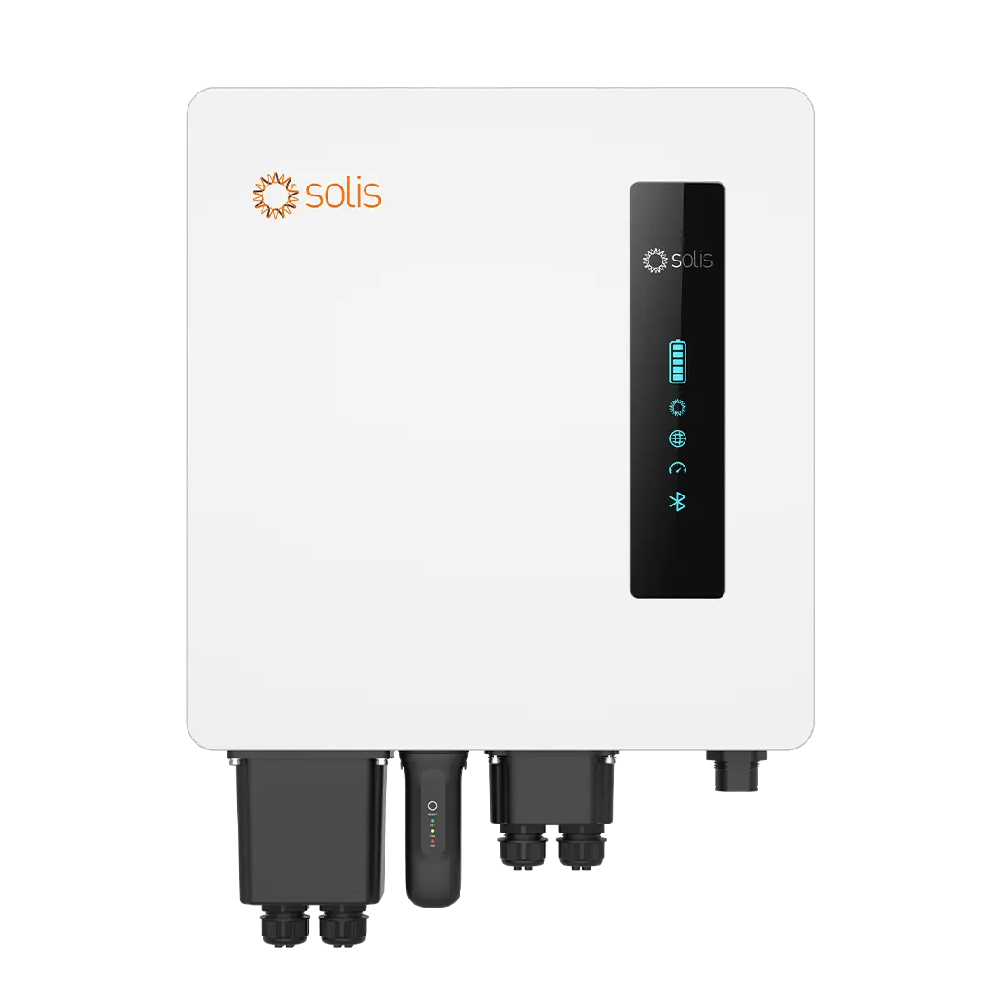

Solis S6-EA1P3.6K-L, 3.6kW, Single Phase Hybrid Energy Storage Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16338/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-EA1P3.6K-L
Type Single Phase Hybrid Energy Storage
General Specifications
Width 440.0 mm
Height 465.0 mm
Depth 192.0 mm
Weight 19.9 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity N/A %
Topology High frequency isolation
IP Rating IP66
Max. Efficiency 93.5 %
Input
Max. Input Voltage 253.0 V
Rated Input Voltage N/A V
Max. Input Current 16,4/15,7 A
Max.Short Circuit Current N/A A
Start Voltage N/A V
No. of MPPTS N/A
Max. number of inputs N/A
MPPT Operating Voltage Range N/A V
Output
Rated Output Power 3600.0 W
Max. AC Apparent Power 3600.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 16,4/15,7 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection No
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection No
AC Surge Arrester No
DC Surge Arrester No
DC Reverse Connection No
Communication
WiFi Optional: Wi-Fi, LAN
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LED indicator & Bluetooth + APP
USB No

General Description & Application

S6-EA1P(3.6-6)K-L

Key Features:

  • Single Phase Low Voltage AC-Coupled Inverter

  • S6-EA1P(3.6-6)K-L series is a new generation of AC coupled products, designed to provide photovoltaic energy storage upgrading solutions for the built grid-tied system, so that it has energy storage and emergency power supply capabilities. Products compatible with lead-acid batteries and lithium-ion batteries, and suitable for any brand photovoltaic system energy storage upgrading，which making system safety, reliability, efficiency, and strong compatibility.
