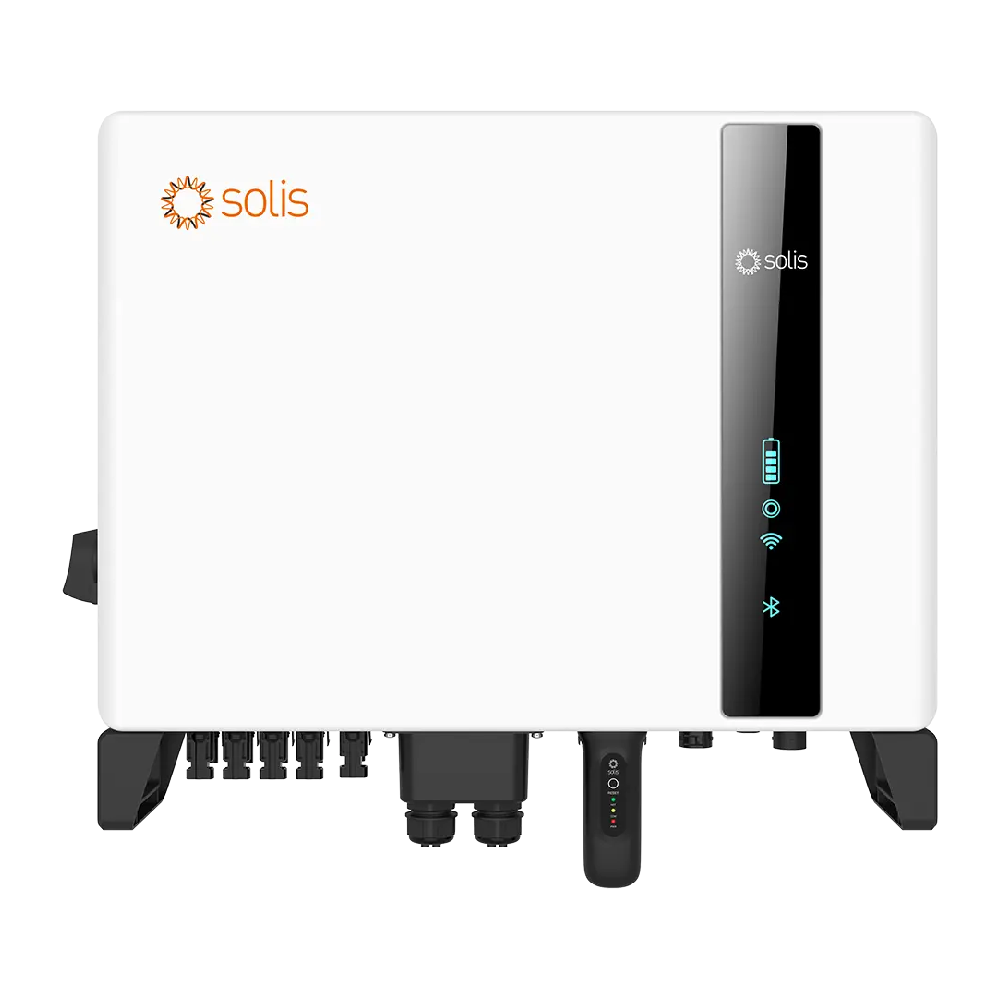

Solis S6-EH3P8K-H-EU, 8kW, Three Phase Hybrid Energy Storage Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16361/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-EH3P8K-H-EU
Type Three Phase Hybrid Energy Storage
General Specifications
Width 600.0 mm
Height 500.0 mm
Depth 230.0 mm
Weight 30.2 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-95 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 97.5 %
Input
Max. Input Voltage 1000.0 V
Rated Input Voltage 600.0 V
Max. Input Current 4x16 A
Max.Short Circuit Current 4x24 A
Start Voltage 160.0 V
No. of MPPTS 4.0
Max. number of inputs 4.0
MPPT Operating Voltage Range 200 - 850 V
Output
Rated Output Power 8000.0 W
Max. AC Apparent Power 8000.0 VA
Max. Output Power N/A W
Rated AC Output Voltage 380/400 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 12,2/11,5 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, Cellular, LAN
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LED indicator & Bluetooth + APP
USB No

General Description & Application

S6-EH3P(3-10)K-H-EU

Key Features:

  • Three Phase High Voltage Energy Storage Inverter

  • S6 Solar inverter that can connect solar panels and a high voltage battery. This inverter will capture the solar during the day and provide power to your home loads and charge the battery. At night it will use the battery to satisfy your home loads. This will prevent you from using any power from the grid and save you from ever paying them a cent! Fight back with the new S6 solar hybrid inverter from Solis.
