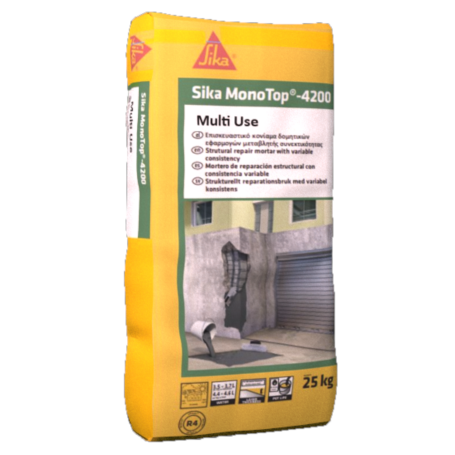

Sika MonoTop-4200 Multi Use, Multi-purpose, single-pack concrete repair mortar, Interior & Exterior, Grey Powder, 25 kg

Category: Cement & Mortar

SIKA

Sika is a global leader in specialty chemicals for the construction and industrial sectors. The company develops and supplies innovative products and systems for bonding, sealing, damping, reinforcing, and protecting structures. With a strong focus on sustainability and performance, Sika serves a wide range of applications including concrete production, waterproofing, roofing, flooring, and structural strengthening.

This combination does not exist.

One-Part, Class R4, Multi-Purpose, Cementitious Concrete Repair Mortar

Sika MonoTop-4200 Multi Use is a cementitious, one-part, Class R4, multi-consistency (controlled by water addition), hand applied, pourable or machine applied, structural, sulphate resistant concrete repair mortar with high initial and final strengths. Suitable for repairing all types of reinforced concrete buildings, civil engineering and marine structures in all orientations (i.e. horizontal, vertical and overhead). Layer thickness up to 80 mm (pourable up to 60 mm).

High early and final compressive strengths.
Sulphate resistant.
Good adhesion to concrete, mortar, stone and brick substrates.
Good abrasion resistance.
Very low shrinkage.
Good surface finishing.
Ready to mix with water.
Excellent workability.
Applied manually or mechanically (wet spray).
High pH passivates steel reinforcement.
Contains very low chlorides and is devoid of other corrosion promoting additives.
Can be used for all orientations, removing the need for multiple products.

Usage

Sika MonoTop-4200 Multi Use may only be used by experienced professionals.

Repair of spalling and damaged concrete in infrastructure and superstructure works. Restoration work (Principle 3, method 3.1, 3.2 and 3.3 of EN 1504-9).
Increasing the bearing capacity of the concrete structure by adding mortar. Structural strengthening (Principle 4, method 4.4 of EN 1504-9).
Increasing cover with additional mortar and replacing contaminated or carbonated concrete. Preserving or restoring passivity (Principle 7, method 7.1 and 7.2 of EN 1504-9).
Repairs to reinforced concrete structures requiring a Class R4, R3, R2, R1 mortar.
Horizontal, vertical and overhead repairs.

Advantages

High early and final compressive strengths.
Sulphate resistant.
Good adhesion to concrete, mortar, stone and brick substrates.
Good abrasion resistance.
Very low shrinkage.
Good surface finishing.
Ready to mix with water.
Excellent workability.
Applied manually or mechanically (wet spray).
High pH passivates steel reinforcement.
Contains very low chlorides and is devoid of other corrosion promoting additives.
Can be used for all orientations, removing the need for multiple products.

Packaging

25 kg bag

Colour

Grey powder

Technical Information

Compressive Strength

	1 Day	7 Days	28 Days
Hand Applied and Wet Spray	~30 N/mm²	~50 N/mm²	~60 N/mm²
Pourable	~25 N/mm²	~45 N/mm²	~50 N/mm²

Modulus of Elasticity in Compression

>20,000 N/mm²

(EN 13412)

Flexural Strength

	1 Day	7 Days	28 Days
Hand Applied and Wet Spray	~7 N/mm²	~10 N/mm²	~11 N/mm²
Pourable	~5 N/mm²	~7 N/mm²	~9 N/mm²

Tensile adhesion strength

>2.0 N/mm²

(EN 1542)

Restrained Shrinkage / Expansion

>2.0 N/mm²

(EN 12617-4)

Capillary Absorption

≤0.5 kg·m^-2·h^-0.5

(EN 13057)

Chloride Ion Ingress

<0.05 %

(EN 1015)

Carbonation Resistance

Pass: dk ≤ control concrete MC (0.45)

(EN 13295)

Reaction to Fire

EuroClass A1

(EN 13501-1)

Application Information

Mixing Ratio

Hand applied and wet spray: 3.5 to 3.7 litres of water for 25 kg powder.

Pourable: 4.4 to 4.6 litres of water for 25 kg powder.

Fresh mortar density

~2.1 kg/l

Layer Thickness

Consistency	Minimum Layer Thickness	Maximum Layer Thickness
Hand applied and wet spray	5 mm	80 mm
Pourable	5 mm	60 mm

Consistency

Hand applied and wet spray	w/c: ~14 %
Pourable	w/c: ~17.5 %

Ambient Air Temperature

+5 ^oC minimum / +30 ^oC maximum

Substrate Temperature

+5 ^oC minimum / +30 ^oC maximum

Pot Life

~30 to 45 minutes at +20 ^oC

The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.

Contact our sales team for other specifications or custom made products.

Preview TDS

Download TDS

General Specifications
Packaging	25 kg
Usage	Repair of spalling and damaged concrete, structural strengthening, increasing bearing capacity, preserving passivity
Usage Area	Interior & Exterior
Color	Grey powder
Chemical Base	Sulphate resistant cement, fibres, additives and selected aggregates.
Storage Conditions	+5 °C to +35 °C - Store in original, unopened, undamaged packaging in dry conditions. Always refer to packaging
Density	2300–2400 kg/m³ (cured)
Application Thickness	60 mm >< 80 mm
Ambient Air Temperature	N/A
Substrate Temperature	N/A
Working time	30 - 45 minutes
Waiting Time	30 - 45 minutes
Consumption	1.8 kg/m²/mm
