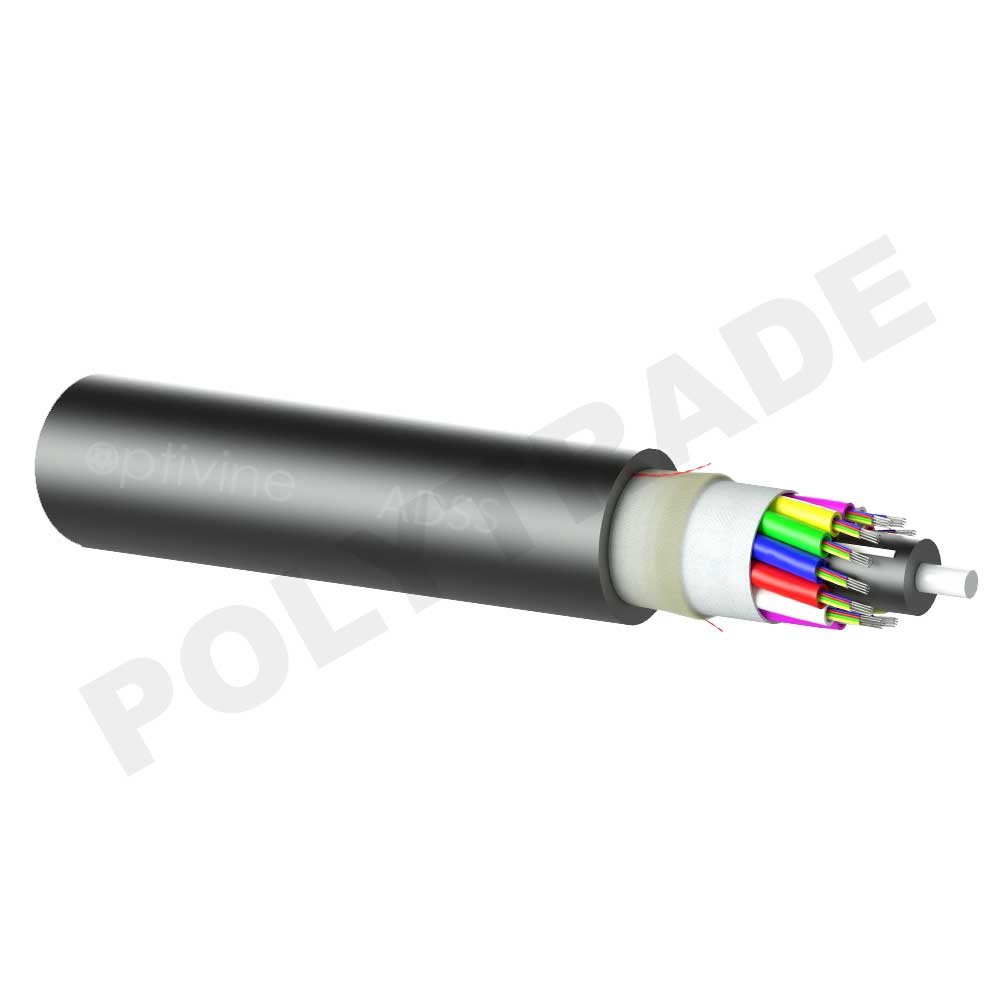

ADSS 16/M8 1.5kN

ADSS
OPTIVINE

Optivine is a leading brand in the production of fiber optic cables. Our cables are designed to provide fast and reliable data transmission, making them ideal for a range of applications, including telecommunications, networking, and data centers. We are committed to using only the finest materials and the latest manufacturing techniques to ensure that our cables meet the highest standards of quality and performance. Whether you need cables for a small home network or a large commercial installation, Optivine has the products you need to get the job done right.

Read more
https://www.polytrade.global/web/image/product.template/2719/image_1920?unique=b734672
You have already submitted a query for this product today.
  • Cable Diameter
  • Core Type
  • Armor Type
  • Jacket Type
  • Jacket Material
  • Fiber & Tube CC
  • Cable Color
  • TRS

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Cable Characteristics
Fiber Count 16
Modularity M8
Tube Count layer 1 2
Tube Count layer 2 N/A
Tube Count layer 3 N/A
Filler Count 4
Cable Diameter 10.1 mm
Cable Diameter Tolerance ± 0.5 mm
Cable Weight 74 kg/km
Cable Weight Tolerance ± 10 kg/km
Rate Tensile Strength (RTS) 3.75 kN
Maximum Allowable Tension (MAT) (40%RTS) 1.5 kN
Everyday Stress (EDS) (20%RTS) 0.75 kN
Strain Margin Strength (60%RTS) 2.25 kN
Crush 2000 N/10cm
Minimum Bending Radius (Installing) 20xD
Minimum Bending Radius (Operating) 10xD
Installation Tensile Strength (≤20%RTS) 0.75 kN
Working Temperature (-)40 >< (+)70 °C
Installation Temperature (-)10 >< (+)60 °C
Armor Type NA
Jacket Type SJ
Jacket Material HDPE
TRS YES
Fiber & Tube CC CC-EIA598-A
Packing Wooden Drum
Delivery Lengths To be confirmed by offer
Delivery Length Tolerance ±5 %
Optical Fiber Core Characteristics
Core Type G.652D
Attenuation Coefficient at 1310 nm Max. ≤ 0.36 dB/km
Attenuation Coefficient at 1550 nm Max. ≤ 0.23 dB/km
Attenuation Coefficient at 1625 nm Max. N/A dB/km
Chromatic Dispersion between 1285 - 1330 nm ≤ 3.5 ps/nm*km
Chromatic Dispersion at 1550 nm ≤ 18 ps/nm*km
Chromatic Dispersion at 1625 nm N/A ps/nm*km
Point Discontinuity at 1310 & 1550 nm ≤ 0.1 dB
Polarization Mode Dispersion (PMD Individual) ≤ 0.2 ps/√km
Polarization Mode Dispersion (Link Design) ≤ 0.08 ps/√km
The uniformity attenuation at any projected wavelength ≤ 0.1 dB/km
Cable Cut off Wavelength (λcc) ≤ 1260 nm
Mode Field Diameter at 1310 nm 9.2 ±0.4 μm
Mode Field Diameter at 1550 nm 10.4±0.5 μm
Cladding Diameter 125 ±1.0 μm
Cladding Non-Circularity ≤0.7 %
Core / Cladding Concentricity error ≤ 0.5 μm
Coating Diameter 250 ± 7 μm
Coating / Cladding Concentricity error ≤ 12 μm

General Description & Application

All Dielectric Self-Supporting (ADSS) Fiber Optic Cables are designed for aerial installation. It does not need support or messenger wire for installation which makes it a cost-effective and simple way of setting up fiber optic networks. Our cables have Track Resistant Sheath (TRS). The aramid yarns helps the cable to have good tensile performance and temperature performance under extreme weathers. This cable contains fibers made of high pure silica and germanium doped silica.

Standards

IEC60794-1
IEC60794-2
IEC60304
ITU-T
EIA-TIA
BS EN 187000
DIN0888

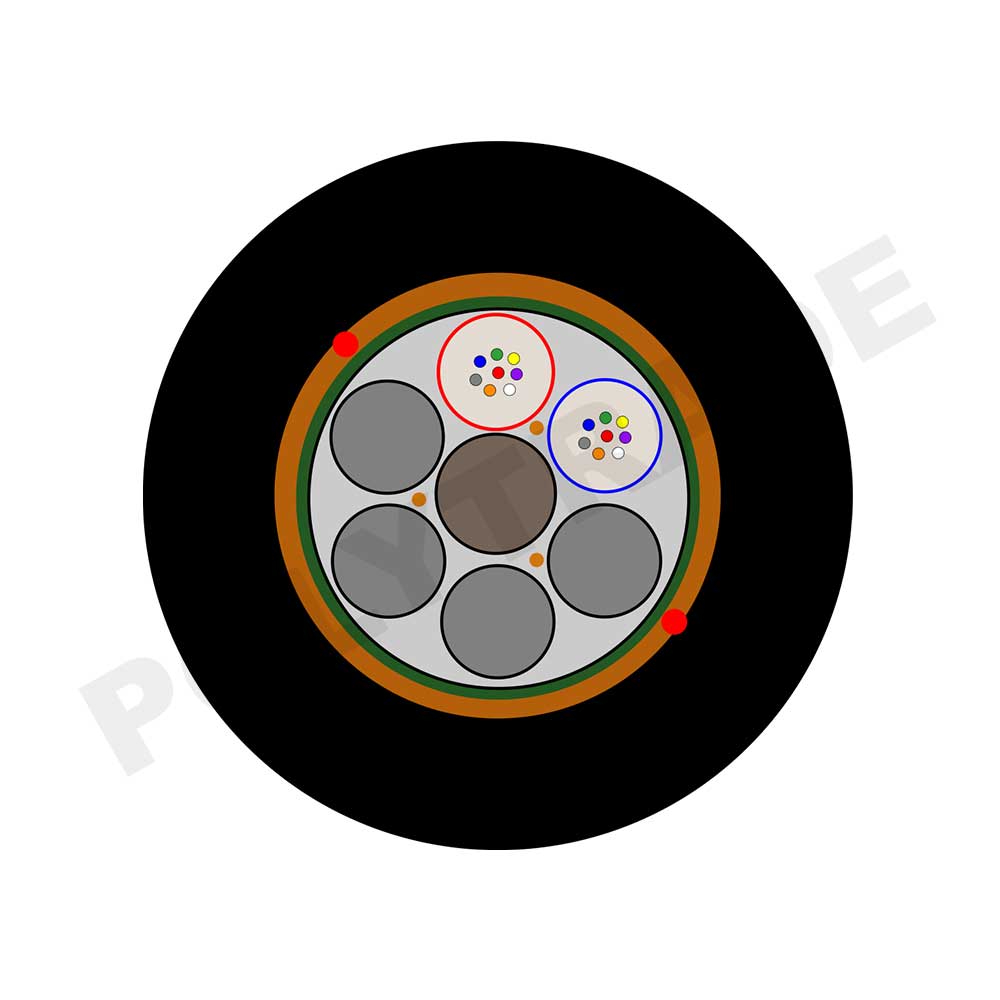

Construction

Central FRP rod;
PBT loose tubes containing fibers, gel filled;
Stranding: Loose tubes SZ stranded around central strength member;
Water swellable yarns;
Water blocking tape;
Aramid yarns as peripheral strength member;
Ripcords;
Outer Jacket (UV resistant);
