Crack bridging protective coating for concrete Sikagard-550 W Elastic is a one component, plasto-elastic coating based on UV-curing acrylic dispersion with excellent crack-bridging properties even at temperatures below 0 °C.
Sikagard-550 W Elastic complies with the requirements of EN 1504-2 as protective coating. - Crack-bridging even at low temperatures (-20°C)
- High diffusion resistance against CO2 reducing the rate of carbonation
- Water vapour permeable
- Very good resistance against weathering and ageing
- Environmentally friendly (solvent free)
- Reduced tendency to dirt pick up and contamination
- The system is resistant to aggressive atmospheric influences
|
Usage Sikagard-550 W Elastic is used for protection and enhancement of concrete structures (normal and lightweight concrete), especially exposed outdoor concrete surfaces with a risk of cracking.
Sikagard-550 W Elastic is used with concrete repair works as an elastic protective coating on Sika smoothing mortar (refer to relevant product / system data sheet), fibre cement and overcoating of existing soundly adhering coatings - Suitable for protection against ingress (Principle 1, method 1.3 of EN 1504-9),
- Suitable for moisture control (Principle 2, method 2.3 of EN 1504-9)
- Suitable for increasing the resistivity (Principle 8, method 8.3 of EN 1504-9)
-
Advantages - Crack-bridging even at low temperatures (-20°C)
- High diffusion resistance against CO2 reducing the rate of carbonation
- Water vapour permeable
- Very good resistance against weathering and ageing
- Environmentally friendly (solvent free)
- Reduced tendency to dirt pick up and contamination
- The system is resistant to aggressive atmospheric influences

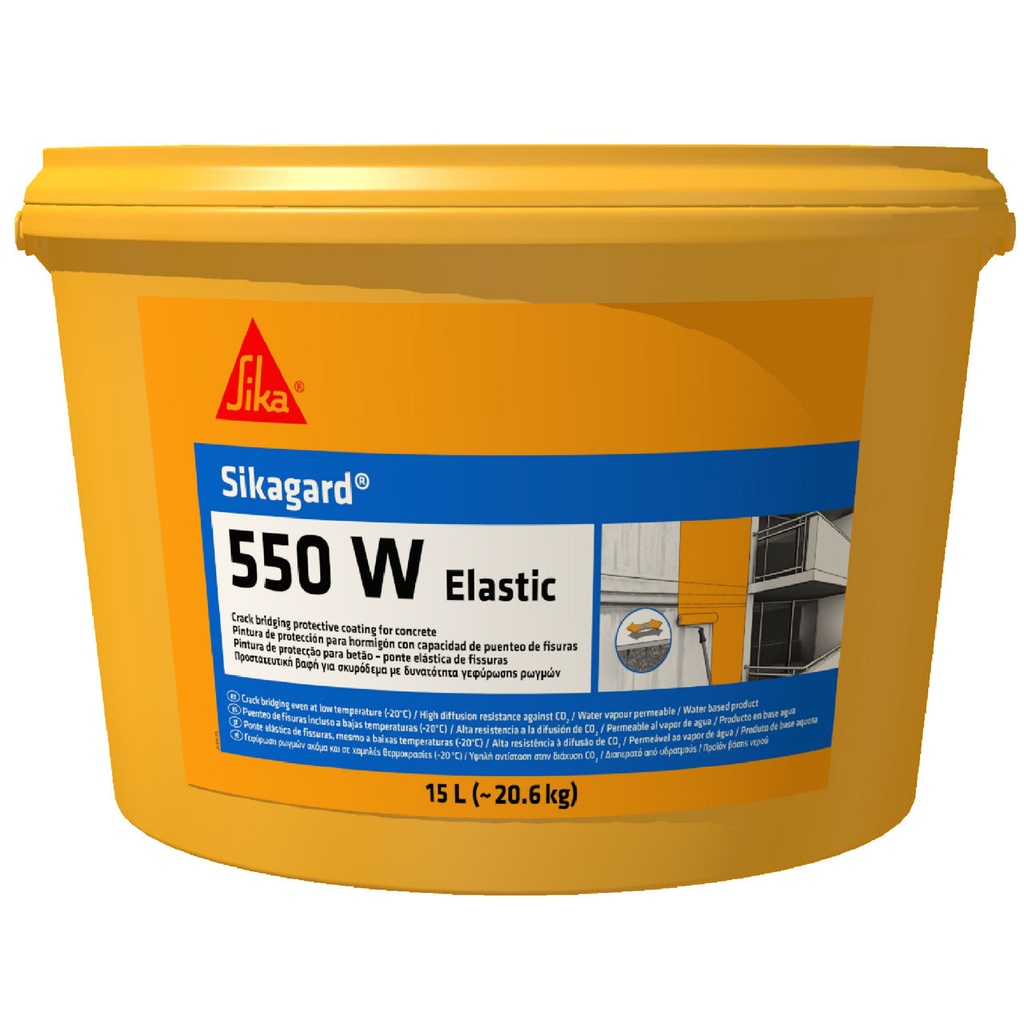

Packaging 15 l oval plastic pail Colour Thixotropic liquid available in almost every RAL colour shade. |
Technical Information Tensile Adhesion Strength | 2,9 (2,8) N/mm² | (EN 1542) |
Crack Bridging Ability Class A1 (-20°C) - 2 coats | (EN 1062-7) | | Class B2 (-15°C) - 3 coats | |
Freeze Thaw De-Icing Salt Resistance 2,9 (2,1) N/mm² | (EN 13687 part 1 & part 2) |
Behaviour after Artificial Weathering | Pass after 2000 hours | (EN 1062-11) |
Permeability to Water Vapour Dry film thickness | d = 230 µm | Equivalent air layer thickness | SD, H2O = 0.35 m | Diffusion coefficient H2O | µH2O = 1,5 x 103 | | Requirements for breathability | ≤ 5 m |
Capillary Absorption w = 0,02 kg/(m²h0.5) | (EN 1062-3) |
Permeability to CO2 Dry film thickness | d = 160 µm | Equivalent air layer thickness | SD, CO2 = 51 m | Diffusion coefficient CO2 | µCO2 = 3,1 x 105 | | Requirements for protection | SD, CO2 ≥ 50 m |
|
Application Information Layer Thickness Minimum required dry film thickness to achieve the required characteristics (CO2 equivalent air thickness of 50 m) ≈ 160 μm.
Minimum required dry film thickness to achieve full durability characteristics (CO2 diffusion, adhesion after thermal cycling and crack bridging) ≈ 340 μm. Ambient Air Temperature +8°C min. / +35°C max. Relative Air Humidity < 80% Dew Point Temperature must be at least 3°C above dew point. Substrate Temperature +8°C min. / +35°C max. Waiting Time / Overcoating Waiting time between coats at +20°C substrate temperature: | Previous coating | Waiting time | Next coating | | Sikagard-552 W Aquaprimer | 5 hours min. | Sikagard-550 W Elastic | | Sikagard-551 S Elastic Primer | 18 hours min. | Sikagard-550 W Elastic | | Sikagard-550 W Elastic | 8 hours min. | Sikagard-550 W Elastic |
Curing Treatment Sikagard-550 W Elastic does not require any special curing but must be protected from rain for at least 4 hours at +20°C. Applied Product Ready for Use Full cure: ~ 7 days at +20°C |
