ASTRONERGY, CHSM72N-HC182-575W, Standard Monofacial Monocrystalline PERC half-cut cells 575Wp Solar Panel

PV Panels
ASTRONERGY

Astronergy is an intelligent manufacturing enterprise focusing on photovoltaic cells and modules. Founded in 2006, it is one of the earliest private enterprises in China to set foot in the photovoltaic field. Nowadays, its business footprints are all over 140 countries and regions in the world.

Read more
https://www.polytrade.global/web/image/product.template/4165/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ASTRONERGY
Product Code CHSM72N-HC182-575W

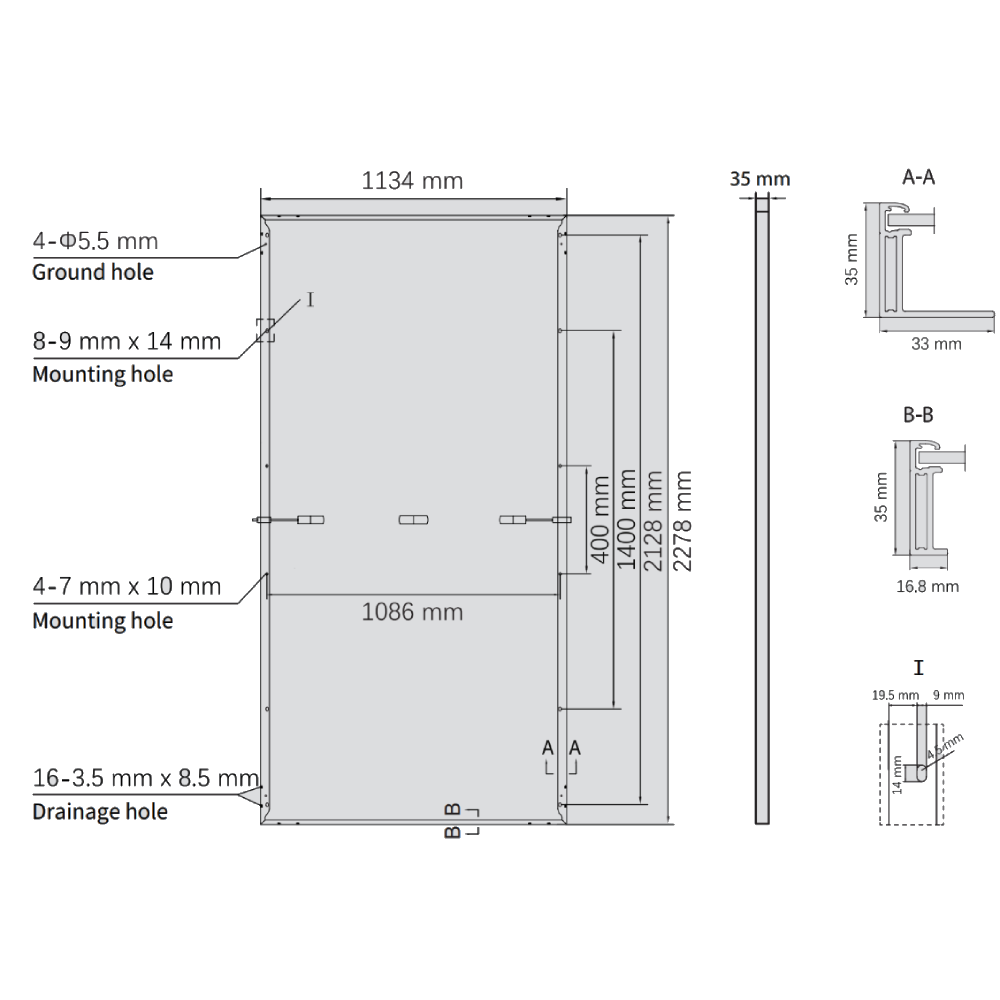

Design & Mechanical Specification
Panel Type Monofacial
Panel Surface Standard
Panel Weight 26.9 Kg
Panel Length 2278.0 mm
Panel Width 1134.0 mm
Panel Thickness 35.0 mm
Cell Material Monocrystalline
Cell Type PERC half-cut cells
No. of Cells 144.0
Cell Dimension 182.0
Glass Type Single
Encapsulation Type EVA
Junction Box IP Rate 68.0
Frame Type Aluminium Silver Anodized
Connector Type MC4
Wind Load 2400.0 Pa
Mechanical Load 5400.0 Pa
Operating Temperature -40 >< +85 °C
Electrical Specifications (*STC)
Nominal Max Power - Pmax 575.0 Wp
Maximum Operating Voltage - Vmpp 42.5 V
Maximum Operation Current - Impp 13.53 A
Open Circuit Voltage - Voc 51.0 V
Short Circuit Current - Isc 14.2 A
Module Efficiency - η 22.3 %
Power Tolerance (+)5% Wp
Maximum System Voltage 1500.0 V
Maximum Series Fuse Rating 25.0 A
Warranty
Products Warranty 12.0 yrs
Performance Warranty 30.0 yrs

General Description & Application

Solar panels are engineered for maximum efficiency, capturing sunlight and converting it into electricity with remarkable precision. Solar panels incorporate the latest advancements, ensuring you benefit from the most efficient and reliable solar solutions available on the market.
From extreme weather conditions to daily wear and tear, solar panels are designed to provide long-lasting, reliable performance, ensuring a sound investment in your energy future.
With solar panels, you're actively contributing to the reduction of greenhouse gas emissions and promoting a cleaner, healthier planet for generations to come.

Standards

Solar panels are engineered and testing according to below standards, as the case may be:
Low Voltage EU Directive 2014/35/EU
IEC 60068-2-68:1994
IEC 61215-1:2016
IEC 61215-1-1:2016
IEC 61215-2:2016
IEC 61730-1:2016
IEC 61730-2:2016
EN 61215-1:2016
EN 61215-1-1:2016
EN 61215-2:2017
EN 61730-1:2018
EN 61730-2:2018
IEC 61701:2011
EN 61701:2012
IEC 62716:2013
EN 62716:2013
IEC 62804-1:2015 / 2 PFG 2387/01.18
IEC 60068-2-68:1994
