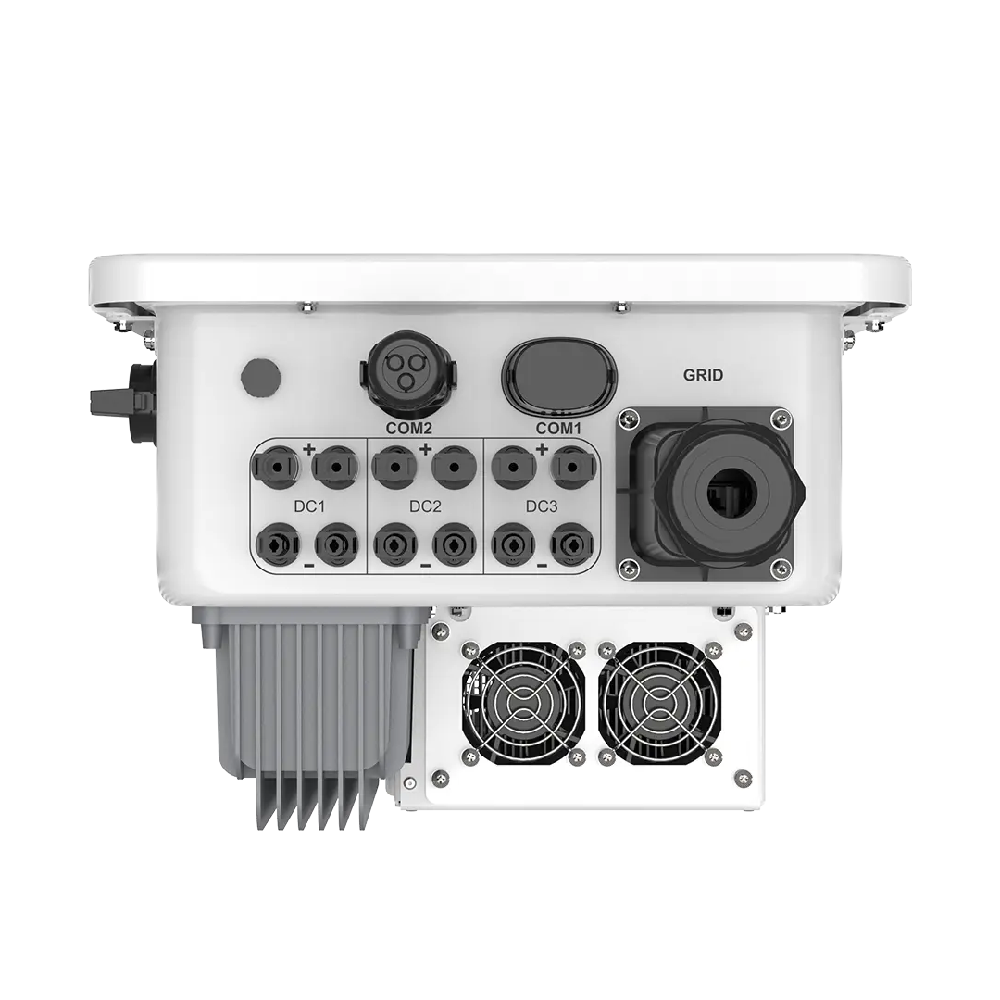

Solis S6-GC3P20K03-LV-ND, 20kW, Three Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16247/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-GC3P20K03-LV-ND
Type Three Phase
General Specifications
Width 355.0 mm
Height 625.0 mm
Depth 250.0 mm
Weight 26.5 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 97.8 %
Input
Max. Input Voltage 1100.0 V
Rated Input Voltage 360.0 V
Max. Input Current 40/40/40 A
Max.Short Circuit Current 50/50/50 A
Start Voltage 180.0 V
No. of MPPTS 3.0
Max. number of inputs 6.0
MPPT Operating Voltage Range 180 - 1000 V
Output
Rated Output Power 20000.0 W
Max. AC Apparent Power 20000.0 VA
Max. Output Power 20000.0 W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 52,5/50,2 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 No
Monitoring BUS (MBUS) N/A
Display LED digital display & Bluetooth + APP
USB No

General Description & Application

S6-GC3P(15-20)K03-LV-ND

Key Features:

  • Three Phase Grid-Tied Inverter

  • S6-GC3P(15-20)K03-LV-ND 230VAC three-phase series string inverter are reliable preferred equipment for residential, small industrial and commercial PV plants.Smaller size, higher efficiency, 3 MPPTs design, DC input current 20A, perfect for all 182/210mm high power PV modules, more flexible and efficient.
