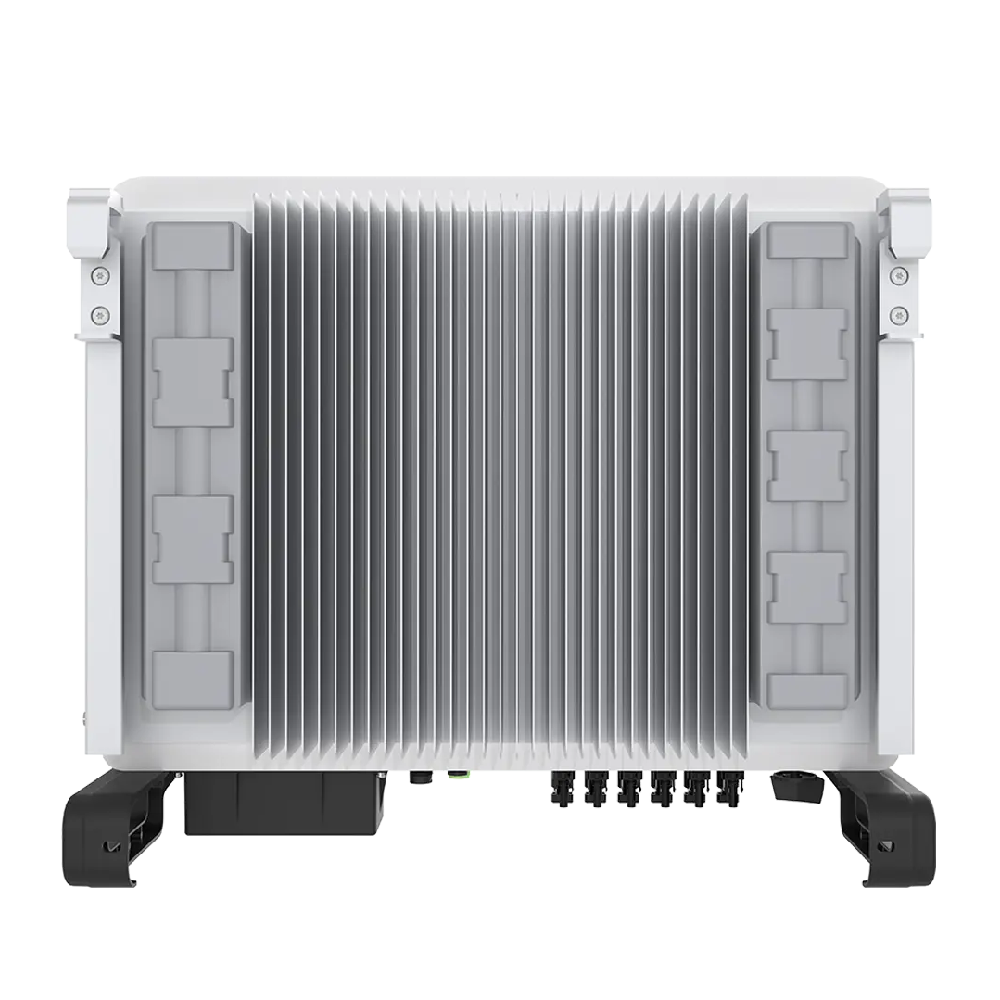

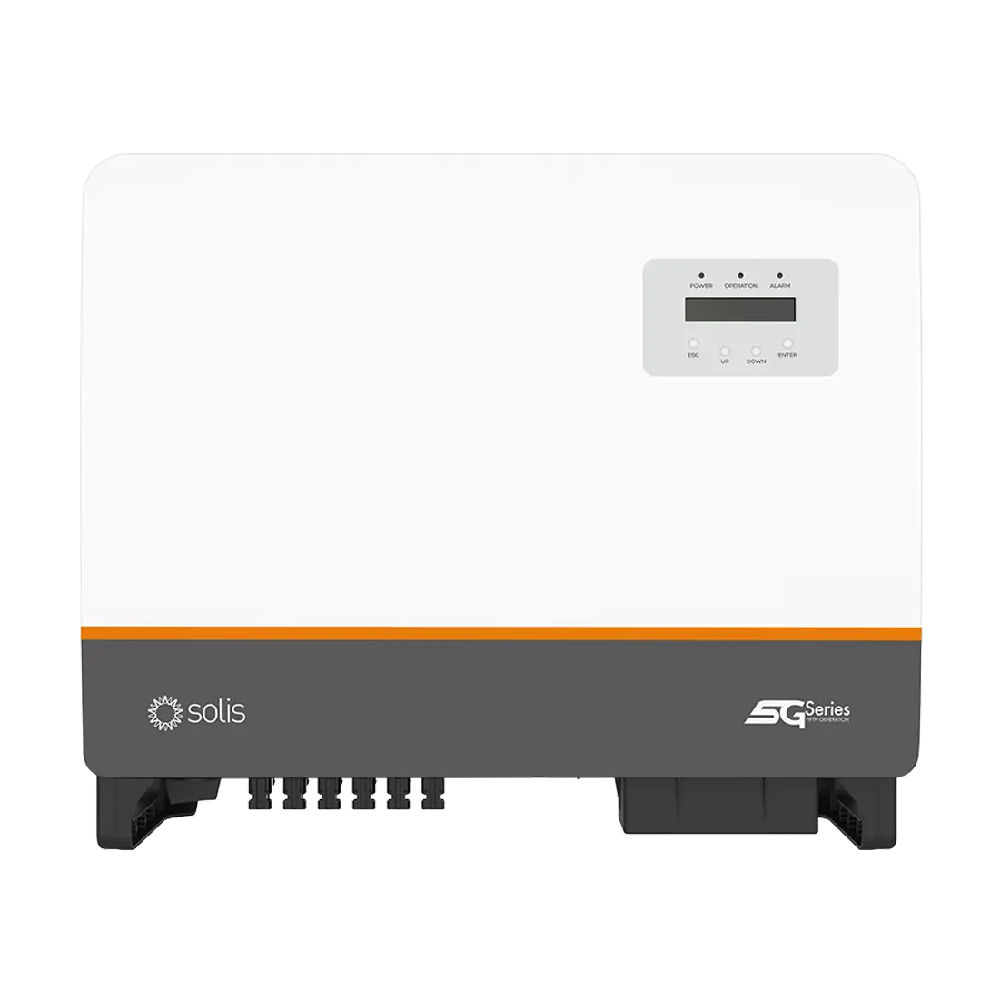

Solis 36K-5G, 36kW, Three Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16261/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code Solis-36K-5G
Type Three Phase
General Specifications
Width 647.0 mm
Height 629.0 mm
Depth 252.0 mm
Weight 45.0 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP65
Max. Efficiency 98.8 %
Input
Max. Input Voltage 1100.0 V
Rated Input Voltage 600.0 V
Max. Input Current 4x26 A
Max.Short Circuit Current 4x40 A
Start Voltage 180.0 V
No. of MPPTS 4.0
Max. number of inputs 8.0
MPPT Operating Voltage Range 200 - 1000 V
Output
Rated Output Power 36000.0 W
Max. AC Apparent Power 39600.0 VA
Max. Output Power 39600.0 W
Rated AC Output Voltage 220/380, 230/400 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 60.2 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LCD
USB No

General Description & Application

Solis-(25-50)K-5G

Key Features:

  • 25-50kW Three Phase Grid-Tied Inverter

  • 25-50 kW three-phase series string inverter adopt 3/4 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Whose operation is so quiet, like a whisper, thus creating a more comfortable and friendly working and living environment.
