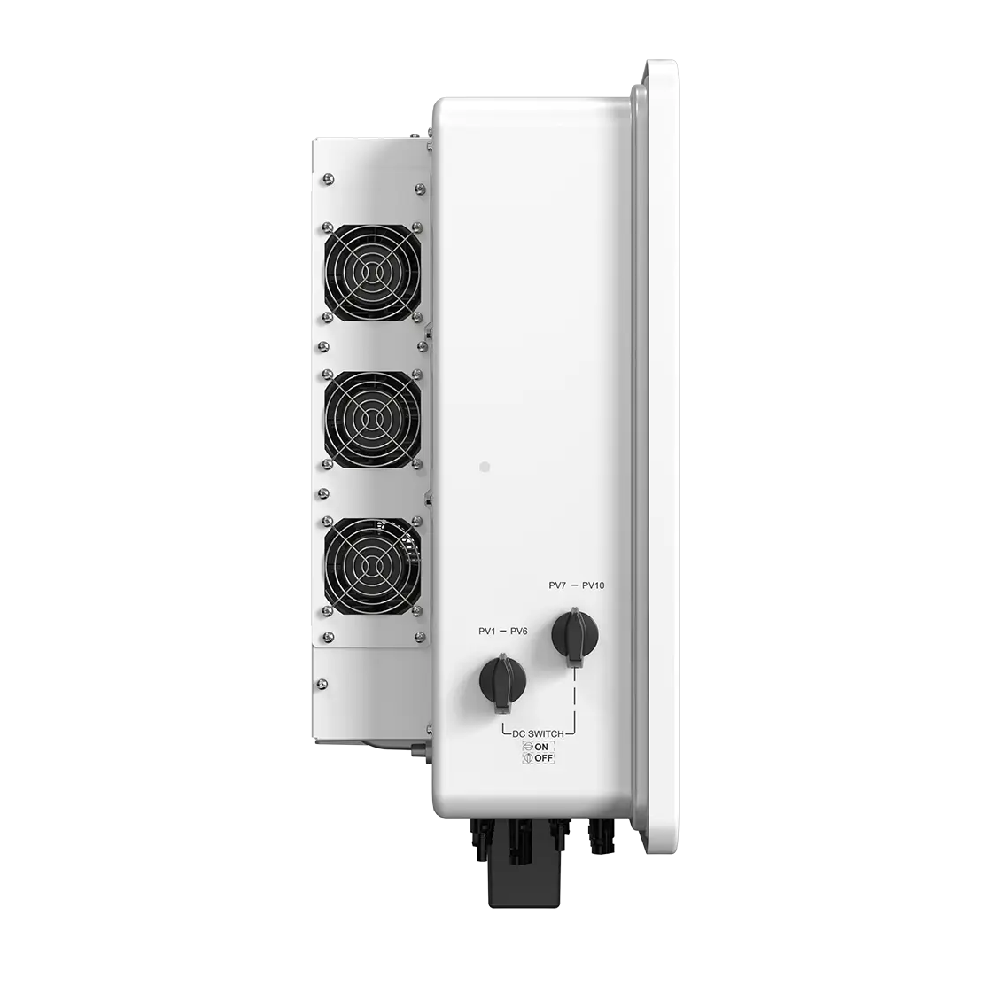

Solis S6-GC3P25K04-LV-ND, 25kW, Three Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16274/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code S6-GC3P25K04-LV-ND
Type Three Phase
General Specifications
Width 515.0 mm
Height 672.0 mm
Depth 287.5 mm
Weight 35.9 Kg
Min. Operating Temperature -25.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 97.8 %
Input
Max. Input Voltage 1100.0 V
Rated Input Voltage 400.0 V
Max. Input Current 4x40 A
Max.Short Circuit Current 4x50 A
Start Voltage 180.0 V
No. of MPPTS 4.0
Max. number of inputs 8.0
MPPT Operating Voltage Range 180 - 1000 V
Output
Rated Output Power 25000.0 W
Max. AC Apparent Power 25000.0 VA
Max. Output Power 25000.0 W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 65,6/62,8 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 Yes
Monitoring BUS (MBUS) N/A
Display LED indicator & Bluetooth + APP
USB No

General Description & Application

S6-GC3P(23-36)K-LV-ND

Key Features:

  • Solis Three Phase Grid-Tied Inverter

  • The S6-GC3P(23-36)K-LV-ND is a new generation of 220VAC three-phase products. Specially designed to provide smart and friendly solutions for large-scale low-voltage grid-connected PV projects, it is suitable for commercial rooftop projects. It has many excellent features, including a 4 MPPT design, string current up to 20A compatible with high-power and bifacial PV modules, 150% DC/AC ratio, automatic voltage stabilization technology in weak grid conditions, remote upgrade and control, etc. It is the first choice for commercial 220V three-phase projects.
