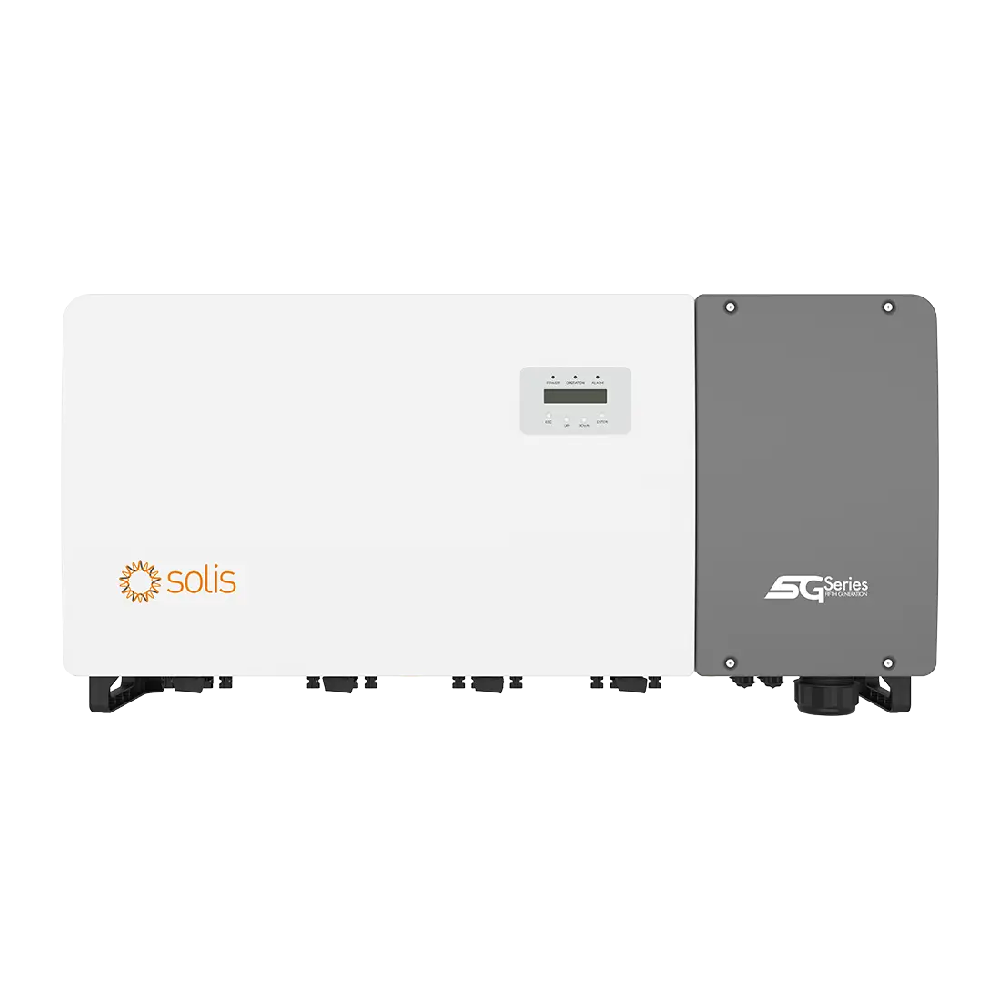

Solis 75K-LV-5G-PRO, 75kW, Three Phase Inverter

Inverters
SOLIS

Established in 2005, Ginlong (Solis) is recognized as the world’s third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions for residential, commercial, and utility-scale customers, the company delivers value throughout the solar supply chain. Operating under the Solis brand, its solar inverter product line utilizes innovative string technology, ensuring top-tier reliability validated by rigorous international certifications.

Read more
https://www.polytrade.global/web/image/product.template/16295/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identifications
Brand Solis
Product Code Solis-75K-LV-5G-PRO
Type Three Phase
General Specifications
Width 1183.0 mm
Height 585.0 mm
Depth 363.0 mm
Weight 98.0 Kg
Min. Operating Temperature -30.0 °C
Max. Operating Temperature 60.0 °C
Max. Operating Altitude 4000.0 m
Relative Humidity 0-100 %
Topology Transformerless
IP Rating IP66
Max. Efficiency 98.5 %
Input
Max. Input Voltage 800.0 V
Rated Input Voltage 450.0 V
Max. Input Current 12x20 A
Max.Short Circuit Current 8x50 A
Start Voltage 180.0 V
No. of MPPTS 8.0
Max. number of inputs 12.0
MPPT Operating Voltage Range 160 - 800 V
Output
Rated Output Power 75000.0 W
Max. AC Apparent Power 75000.0 VA
Max. Output Power 75000.0 W
Rated AC Output Voltage 220/230 VA
Rated Grid Frequency 50/60 Hz
Max. Output Current 196.8 A
Total Harmonic Distortion <3 %
Power Factor >0,99
Protection
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
AC Overcurrent Protection Yes
Insulation Detection Yes
AC Surge Arrester Yes
DC Surge Arrester Yes
DC Reverse Connection Yes
Communication
WiFi Optional: Wi-Fi, GPRS
RS485 No
Monitoring BUS (MBUS) N/A
Display LCD
USB No

General Description & Application

Solis-(50-75)K-LV-5G-PRO

Key Features:

  • Three Phase Grid-Tied Inverter

  • Solis-(50-75)K-LV-5G-PRO is a new generation of 220V three-phase products. It is one of the most powerful three-phase low-voltage string inverters in the world. Specially designed to provide low LCOE solutions for large-scale low voltage grid-connected PV projects, suitable for commercial rooftop and utility projects. It has many excellent features, including 8 MPPT design, compatible with high-power and bifacial photovoltaic modules; 170% DC/AC super ratio; support for remote and local intelligent I-V scanning functions, etc. It is the first choice for commercial 220V three-phase projects
