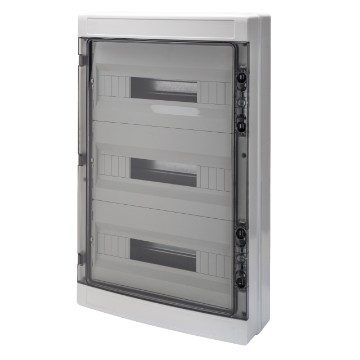

  2. GEWISS GW40108BD, Distribution Board with Panels with Window and Extractable Frame, with Terminal Block N 2 X [(3x16)+(17x10)] E 2 X [(3x16)+(17x10)], (18x3) 54m IP65
GEWISS GW40108BD, Distribution Board with Panels with Window and Extractable Frame, with Terminal Block N 2 X [(3x16)+(17x10)] E 2 X [(3x16)+(17x10)], (18x3) 54m IP65

GEWISS GW40108BD, Distribution Board with Panels with Window and Extractable Frame, with Terminal Block N 2 X [(3x16)+(17x10)] E 2 X [(3x16)+(17x10)], (18x3) 54m IP65

Distribution Boards
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/15627/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Manufacturer Code GW40108BD
Product Family 40 CD Range-Surface-mounting distribution boards and enclosures
General Specifications
Material PVC Halogen-free in compliance with EN 60754-2
Color Grey RAL 7035
Door color Smoked Transparent
Length 410.0 mm
Height 655.0 mm
Depth 140.0 mm
IP Rating IP65
Insulation class II (according to IEC 61140 standards)
Mechanical resistance IK09
Modules No. 54 (18x3)
Max. installable terminal blocks N/A
Glow Wire Test 650.0 °C
Operating Temperature -25 >< +60 °C
Thermo-pressure with ball 70.0 °C
Standards EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49

General Description & Application


Range 40 CD Distribution panels and boxes mounted apparently - The offer provides: Sealed panel 40CDK - IP65 with extractable frame (of 24 M) and probeable panels; accessories include cable channels, locking systems, aesthetic covers and blank panels; Sealed enclosures 40CD - IP55 with perforated holes on the walls, door with lock for each modular row; 40CD enclosures protected by equipment - IP40 up to 72 M in versions with smoked doors and solid doors; 40 CD cases without door - IP40. All materials are halogen-free.
