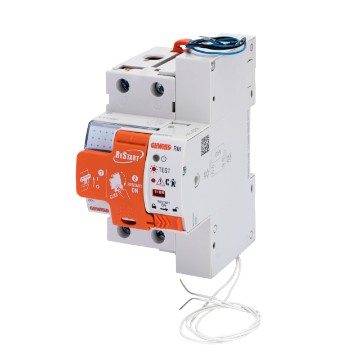

GEWISS GWD4227R, Restart Rm, 2 Poles, Coupled with Mdc, 16A4500A Type A Curve C IDN=0.03A 230V, 3 Modules EN 50022

GEWISS GWD4227R, Restart Rm, 2 Poles, Coupled with Mdc, 16A4500A Type A Curve C IDN=0.03A 230V, 3 Modules EN 50022

Circuit Reclosers
GEWISS

Founded in 1970 on the revolutionary innovation of using technopolymer in electrical engineering, today GEWISS is the most important company in the electrotechnical sector with Italian capital.

Read more
https://www.polytrade.global/web/image/product.template/10285/image_1920?unique=ab4a244
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand GEWISS
Product Code GWD4227R
Product Family 90 ReStart Range-Automatic reclosing devices
General Specifications
Rated Voltage AC 230.0 V
Rated frequency 50 - 60 Hz
Rated current 16.0 A
Rated residual operating current 30.0 mA
Type of residual current protection A
Number of poles 2P
Standards EN 50557
Maximum operating frequency 30 oper./h
Distribution system TT - TN-S
Mechanical endurance 4000
Insulation voltage (Ui) 500.0 V
Dielectric strength test voltage between pole and earth 2500 Vac for 1 minute
Operating Temperature -5 >< +40 °C
Stocking temperature -40 >< +70 °C
Rated impulse withstand voltage (Uimp) 4.0 kV
No. modules 3
Overvoltage category III
Completeable with N/A
Rated non-operating resistance between live parts and earth (Rdo) 8.0 kΩ
Rated operating resistance between live parts and earth (Rd) 16.0 kΩ
Operating modes N/A
Autotest (automatic RCCB protection test) N/A
Automatic reclosure for untimely tripping Yes
Current operating N/A
Earth failure test Yes
Use category N/A
Continuous system monitoring No

General Description & Application


Range 90 ReStart Automatic reclosing devices - In the event of a circuit breaker trip, the ReStart devices, after checking the system status, restore the power supply, thus ensuring maximum continuity of service in maximum safety.


Available for both pure residual current circuit-breakers and those with overcurrent protection, the range is characterized by the Autotest function, with periodic and automatic control of the residual current protection without power interruption, and the PRO function with extended system control.
