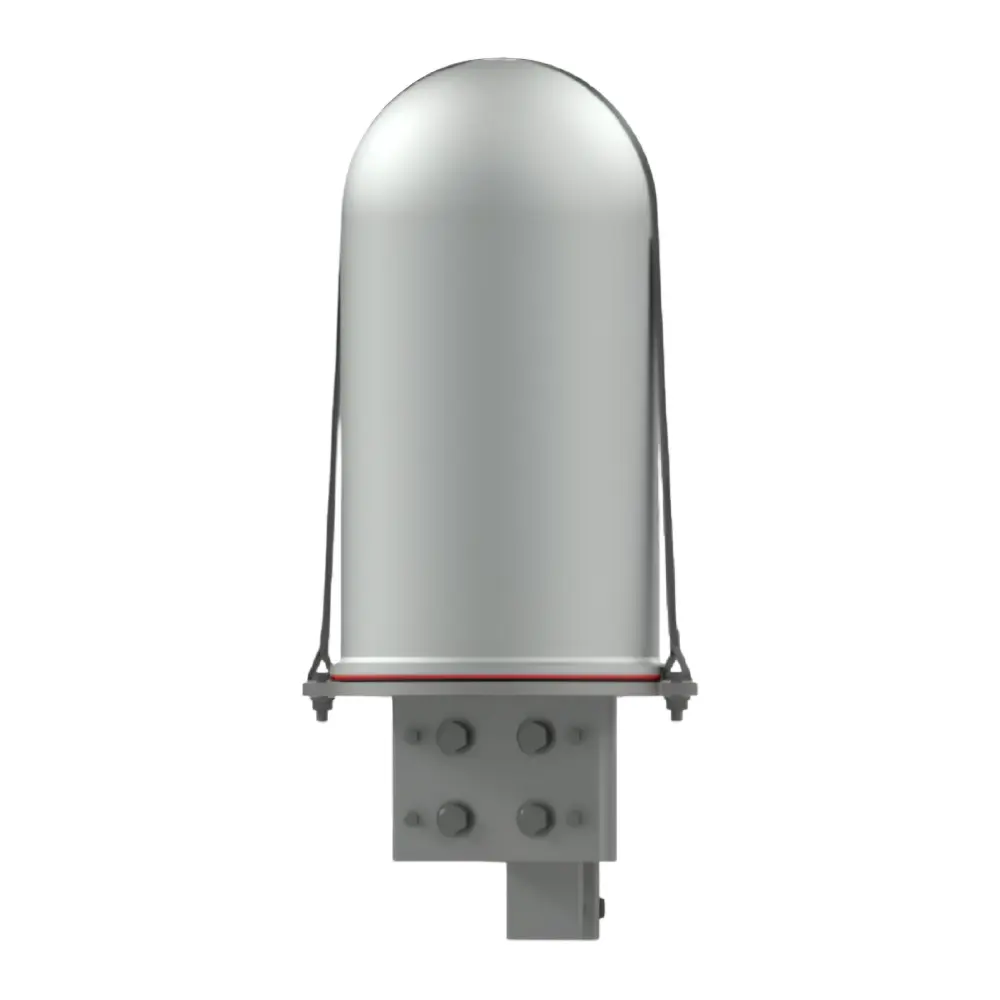

Universal Cylindrical Joint Box - CJB
POLYCONNECT
POLYCONNECT stands as your unparalleled destination for an extensive assortment of electrical fittings and accessories, spanning from Low Voltage to High and Extra High Voltage applications. Our portfolio encompasses a comprehensive range of solutions meticulously tailored to address every aspect of your electrical infrastructure. Unveil the versatility of our offerings, from flawlessly engineered cable systems ensuring uninterrupted connectivity, to cable lugs and cleats designed for impeccable conductivity, and advanced clamps and fittings enhancing overhead lines and substations while enduring environmental challenges. Moreover, our metallic enclosures offer the pinnacle of equipment protection, enhancing the longevity and security of your installations. Complementing these core components, our range extends to various accessories, each seamlessly integrating to optimize your electrical systems.
Read moreAPPLICATION FIELD
The universal junction box provides great flexibility for connecting OPGW / ADSS cables because it covers all diameters from 9mm to 20mm with a single product. The installation kit for the joint boxes includes all the parts and adapters required to install all types of OPGW / ADSS cables. This ensures fast and efficient installation on site. Together with the optimized case and the variable intake diameter connectors, fewer individual parts are required to achieve a flexible joint. The junction box has excellent features such as high density and extremely high mechanical strength - for connections that meet your requirements with 24-96 splices.

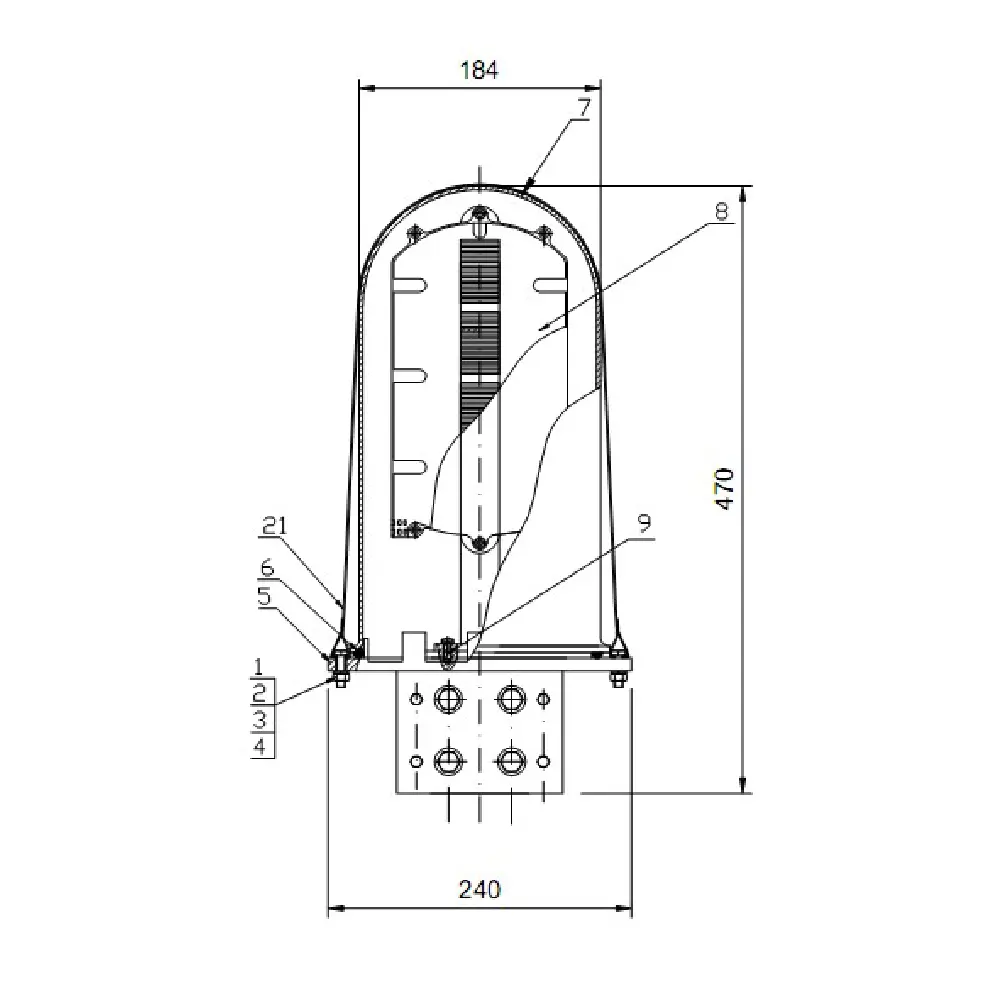

TECHNICAL SPECIFICATION
| Item No. | Description | Quantity | Material / Finish |
|---|---|---|---|
| 1 | Bolt | 2 | Stainless Steel |
| 2 | Nut | 2 | Stainless Steel |
| 3 | Spring washer | 3 | High carbon spring steel |
| 4 | Washer | 1 | Stainless Steel |
| 5 | Pad | 1 | Aluminium Alloy ZAlSi12 |
| 6 | O-sealed | 1 | Rubber |
| 7 | Shell | 1 | Aluminium Alloy ZAlSi12 |
| 8 | Fiber capacity | 1 | Plastic |
| 9 | Seal Sets | 2 | Glue |
| 10 | Aluminum Tube | 4 | Aluminum Alloy |
| 11 | Bolt | 1 | Stainless Steel |
| 12 | Center bolt | 1 | Stainless Steel |
| 13 | Nut | 1 | Stainless Steel |
| 14 | Spring washer | 1 | High carbon spring steel |
| 15 | Washer | 1 | Stainless Steel |
| 16 | Tower Fasten Shelf | 1 | Special tool steel |
| 17 | Bolt | 2 | Plain carbon structural steel |
| 18 | Nut | 2 | Plain carbon structural steel |
| 19 | Spring washer | 2 | High carbon spring steel |
| 20 | Washer | 2 | Plain carbon structural steel |
| 21 | Tape | 1 | Stainless Steel |
