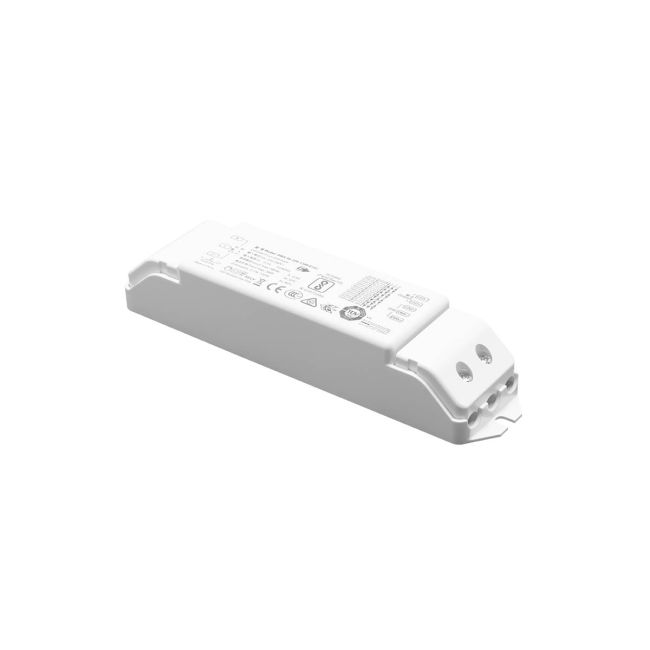

ARELUX ATD36.200-1200DMX, DMX & Push Dimmable Constant Current LED Driver (Adjustable)

ARELUX ATD36.200-1200DMX, DMX & Push Dimmable Constant Current LED Driver (Adjustable)

Power Supplies
ARELUX

ARELUX offers professional LED control solutions including controllers, dimmers, and smart interfaces compatible with WiFi, RF, DMX, and DALI systems, suitable for residential and commercial lighting applications.

Read more
https://www.polytrade.global/web/image/product.template/33345/image_1920?unique=e933da6
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand ARELUX
Manufacturer Code ATD36.200-1200DMX
General Specifications
Destination Indoor
Usage Commercial, Industrial
Working Temperature -30 >< +55 °C
Rated Input Voltage 100 - 277 V AC
Rated Output Voltage 10 - 54 V DC
Rated Current 200-1200 mA
IP Rating IP20
Length mm
Height mm
Width mm
Rated Output Power 2 W-36 W

General Description & Application

Constant current LED drivers, adjustable, dimmable with DMX and PUSH DIMMING interfaces. Working using the principle of PWM control (Pulse Width Modulation).

Product type: Driver

Housing/structure: The housing of the driver in ABS plastic.

Electrical gear: Input voltage 100-277V AC. For input and output are used terminal blocks with screws, for 0,75 to 2,5 mm² diameter of wires. Setting up the DMX addresses by using the RDM protocol (Remote Device Protocol). Dimming range between 0 and 100%. Wide range of working currents (working powers), between 200 and 1200 mA, sequentially selectable via a DIP switch. By connecting a resistor to the ISET port it is possible to select the working currents more acurately. Short circuit and overload protection, auto-recovery after the malfunctioning is fixed. Overtemperature protection. Open circuit protection.
