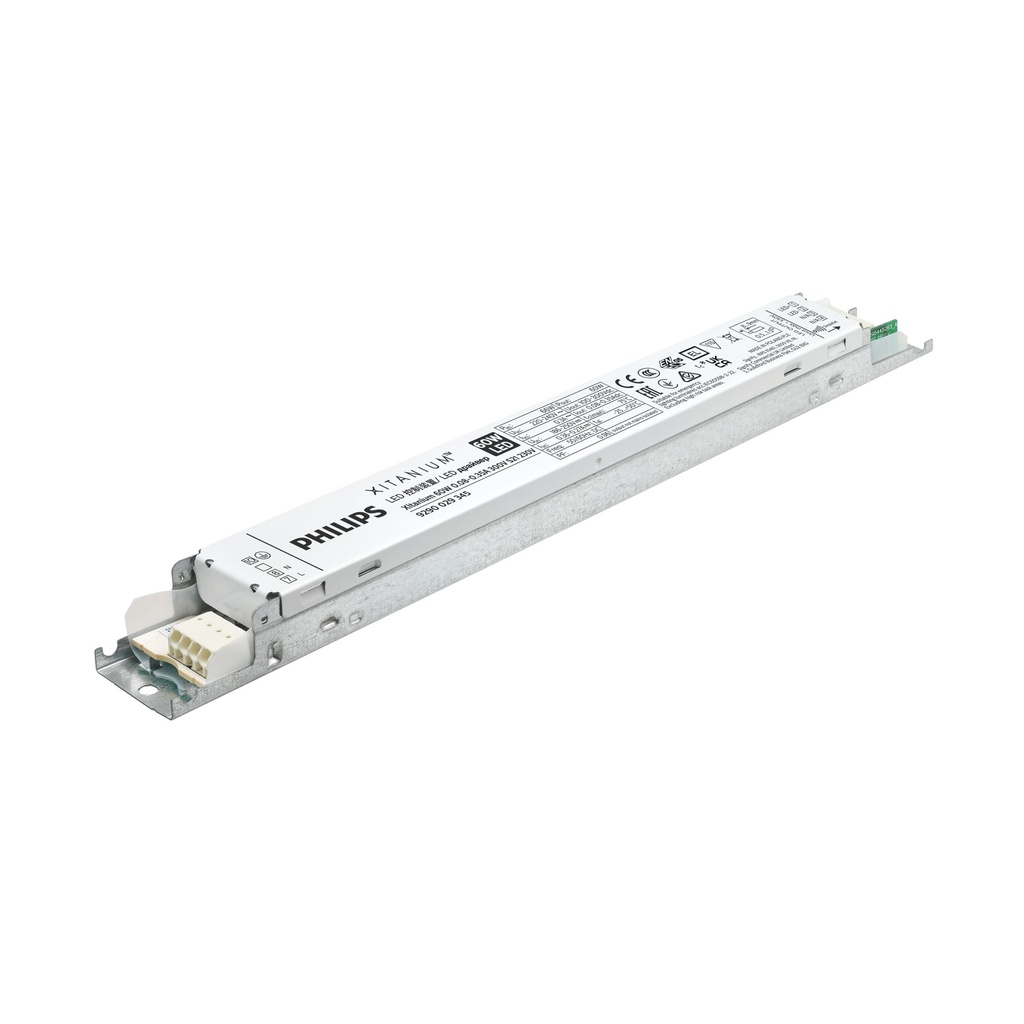

PHILIPS 929002934506, Xitanium LED Driver 60W (0.08-0.35A, 300V, S21, 230V)

PHILIPS 929002934506, Xitanium LED Driver 60W (0.08-0.35A, 300V, S21, 230V)

Power Supplies
PHILIPS SIGNIFY

The Philips brand is licensed to Signify, world leader in lighting, for lighting products and services. Philips is Signify’s primary brand for lamps, luminaires, and other lighting products for both professionals and consumers. Signify products carrying the Philips brand cover the complete range of lighting applications, from home, office, and industry to street lighting, horticulture, sports, and more.

Read more
https://www.polytrade.global/web/image/product.template/33571/image_1920?unique=e933da6
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand PHILIPS SIGNIFY
Manufacturer Code 929002934506
General Specifications
Destination Indoor
Usage Commercial, Industrial
Working Temperature -25 >< +50 °C
Rated Input Voltage 168 - 275 V
Rated Output Voltage 300 V
Rated Current 350 mA
IP Rating IP20 [Finger-protected]
Length 280 mm
Height 21.0 mm
Width 30.0 mm
Rated Output Power 60 W

General Description & Application

Philips Xitanium non-isolated drivers are ideal for linear Indoor systems. These drivers are available in two versions: one with a Fixed single output current and one with multiple fixed output currents, which can be set manually via DipSwitch. These drivers feature low output current ripple of max 4% for high and low frequencies, and low standby specifications.

Benefits:

  • The low output current ripple ensures no interference with security, cell phone or web cameras and bar code scanners.
  • These drivers offer wide range of features, offering ease of design-in and simplifying the approbation process.
  • These drivers support easy integration in High Voltage linear luminaire systems, also in industrial highbay systems (iXt)
  • Wide operating windows offer great flexibility to design a luminare system and reduce complexity.
  • Low flicker and stroboscopic effect for optimal visual perception (TLA).

Features:

  • Higher efficiency
  • Operating windows - output current can be adjusted via Simpleset (NFC), or with an external resistor (LEDset) outside the driver or via Dipswitch.
  • Reduced ripple current and thermal de-rating for increased reliability
  • Longer lifetime (100khrs)

Applications:

  • Office
  • Retail
  • Industrial-Highbay
