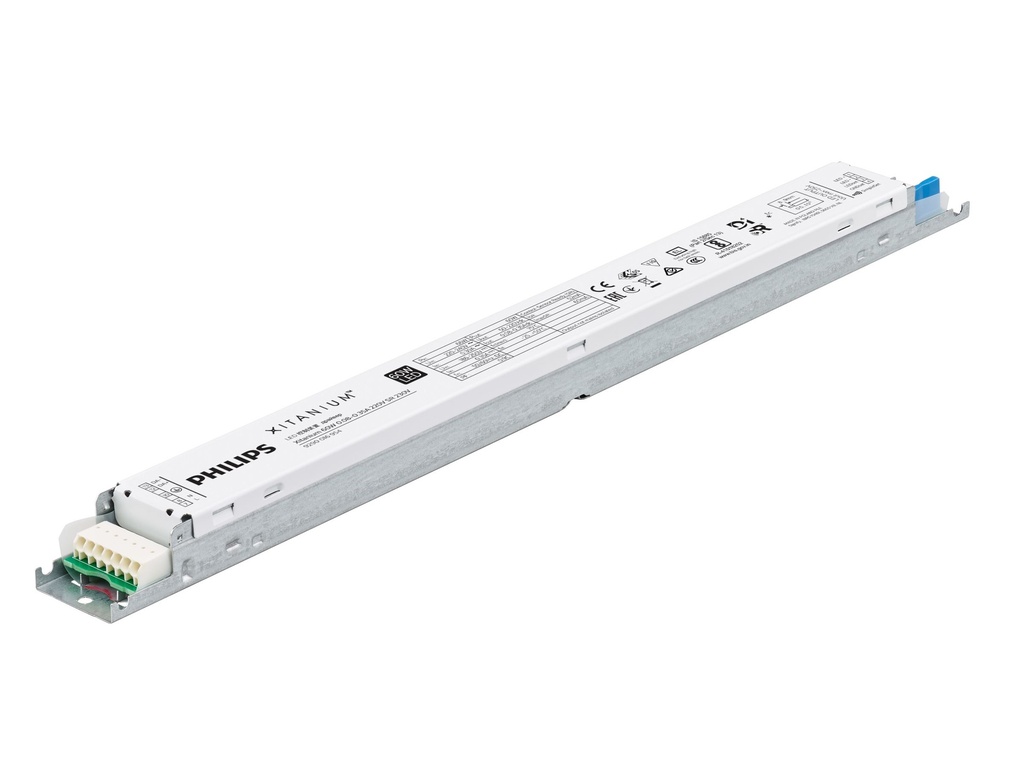

PHILIPS 929001695306, Xitanium LED Driver 35W (0.08-0.35A, 150V, SR, 230V)

PHILIPS 929001695306, Xitanium LED Driver 35W (0.08-0.35A, 150V, SR, 230V)

Power Supplies
PHILIPS SIGNIFY

The Philips brand is licensed to Signify, world leader in lighting, for lighting products and services. Philips is Signify’s primary brand for lamps, luminaires, and other lighting products for both professionals and consumers. Signify products carrying the Philips brand cover the complete range of lighting applications, from home, office, and industry to street lighting, horticulture, sports, and more.

Read more
https://www.polytrade.global/web/image/product.template/33677/image_1920?unique=6afbbd7
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand PHILIPS SIGNIFY
Manufacturer Code 929001695306
General Specifications
Destination Indoor
Usage Commercial, Industrial
Working Temperature -25 >< +50 °C
Rated Input Voltage 168 - 275 V
Rated Output Voltage 150 V
Rated Current 350 mA
IP Rating IP20 [Finger-protected]
Length 360 mm
Height 21.0 mm
Width 30.0 mm
Rated Output Power 35 W

General Description & Application

Non-isolated and isolated drivers are ideal and stand on three pillars: quality of light, reliability and flexibility. By using Xitanium LED drivers in your luminaires, you can ensure that your customers receive high-quality light without visual flicker or stroboscopic effects. The reliability of our drivers is based on in-depth electronics knowledge and extensive testing. Finally, application-oriented operating windows offer the flexibility required to provide the stable lumen output and high light quality levels to the luminare manufacturer

Benefits:

  • Low profile housing (11mm + 16mm + 21mm height)
  • The low output current ripple ensures no interference with security, cell phone or web cameras and bar code scanners.
  • These drivers offer wide range of features, offering ease of design-in and simplifying the approbation process.
  • These drivers facilitate easy integration in high-voltage and low-voltage linear luminaire systems, as well as in industrial high-bay systems (iXt).
  • Flexible output current configuration of DALI drivers via MultiOne software, using either wired DALI interface of wireless SimpleSet (NFC) interface.
  • Wide operating windows offer great flexibility to design a luminare system and reduce complexity.
  • Complete range of Sensor Ready (SR) drivers for connected systems based on DALI-D4i protocol.
  • Low flicker and stroboscopic effect for optimal visual perception (TLA).

Features:

  • High efficiency
  • Wide operating window
  • Configurable operating windows (AOC) via DALI, Simpleset, LedSet or DipSwich

Applications:

  • Offices
  • Healthcare
  • Education
  • Indoor parking areas
  • Retail: supermarkets and shopping malls
  • Industrial Highbay
