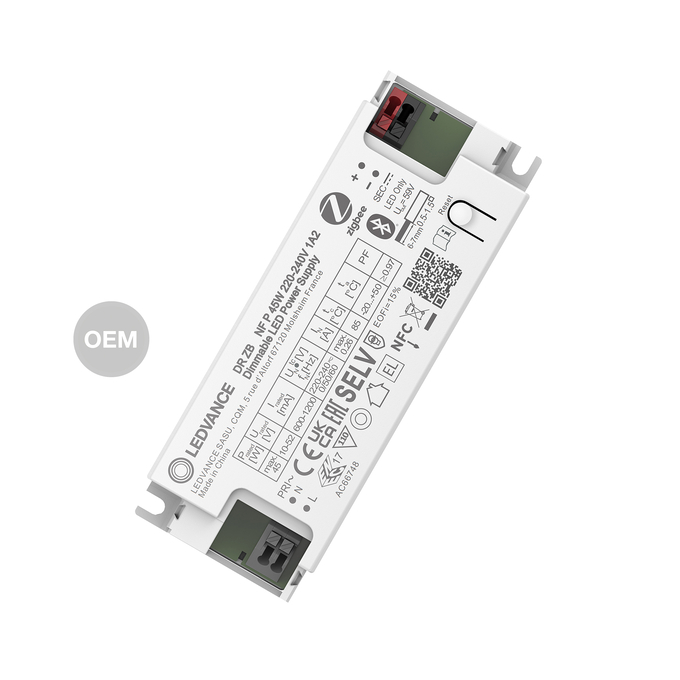

LEDVANCE 4099854417955, LED Driver Zigbee NFC 45W (1.2A, OEM)

LEDVANCE 4099854417955, LED Driver Zigbee NFC 45W (1.2A, OEM)

Power Supplies
LEDVANCE

LEDVANCE is one of the world’s leading companies in the lighting industry and is expanding into the renewable energy solution business. To reflect our broad range of products and solutions, we offer a variety of brands under our LEDVANCE corporate umbrella. Under the LEDVANCE product brand, we sell an extensive line of products for residential, commercial and industrial applications.

Read more
https://www.polytrade.global/web/image/product.template/33808/image_1920?unique=e933da6
You have already submitted a query for this product today.

This combination does not exist.

Contact Us
Preview TDS
Download TDS
Identification
Brand LEDVANCE
Manufacturer Code 4099854417955
General Specifications
Destination Indoor
Usage -
Working Temperature -20 >< +50 °C
Rated Input Voltage 220 - 240 V
Rated Output Voltage 10 - 52 V
Rated Current 260 mA
IP Rating IP20
Length 118.2 mm
Height 25.0 mm
Width 45.0 mm
Rated Output Power 45 W

General Description & Application

Product benefits
  • Zigbee 3.0 and Zigbee Direct via Bluetooth Low Energy (BLE)
  • Flexible NFC current settings on device in 1 mA steps
  • Consumption and diagnostic data via Zigbee
  • Low flickering enables high light quality as well as good visual comfort
  • High-quality dimming of 1…100 %
  • Toolless installation
Areas of application
  • Luminaires of protection class I and II
  • Indoor SELV installations
  • Suitable for LED T5 FC EXTERNAL P
  • Emergency lighting systems (DC capable)
  • Cove lighting
  • Offices
  • Education
  • Storage areas
  • Retail
Product features
  • Available with an output current range: from 200...750 mA (30 W)
  • Available with an output current range: from 600...1,200 mA (45 W)
  • Type of installation: independent and built-in
  • Suitable for emergency lighting fixtures acc. to EN 60598-2-2 with via NFC adjustable emergency output factor (EOFI)
  • Quick and easy current setting via NFC
  • Very long lifetime: up to 100,000 h
  • Supply voltage: 220…240 V
  • Operated with Safety extra-low voltage (SELV): < 60 V
Equipment / Accessories
  • Cable clamps included for trade types
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
  • Do not open enclosure-housing.
